Understanding Residential Transformers: The Key to Efficient Power Distribution

Like all devices housed in any residential area, a residential transformer ensures the delivery of electrical power to families. These devices are designed with the relatively straightforward task of reducing the voltage transmitted from the power grid so it becomes compatible with home appliances and systems. This paper delves into the components, workings, and significance of residential transformers’ inefficient energy distribution. Besides this analysis, we will also look into the types of transformers usually found in a residence, considerations during installation, and maintenance procedures that guarantee outstanding performance. Understanding these features will help the audience appreciate the importance of residential transformers in modern power infrastructure safety and energy efficiency.

What is a transformer and how does it work in residential settings?

In basic terms, a transformer is an electric machinery that changes voltage via electromagnetic induction from one circuit to another. For homes, the electrical grid transformers that are positioned high on utility poles reduce the vast voltage of electricity, which can go up to thousands of volts, to 120V or 240V which is much safer for domestic consumption. Residential transformers are usually found on utility poles or mounted on pads near residential buildings. These transformers supply electricity to homes so that the more important devices and systems can work reliably and safely.

Basics of a Transformer in Electricity Distribution

A transformer is a static electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. Its primary function is to adjust the voltage levels in the electric distribution network to ensure it is transmitted safely and efficiently. Electric energy is created at very high voltages of 13kV to 25kV for long-distance efficient delivery. This voltage is much too high for consumers, therefore, it is the duty of transformers to step down this voltage to safe levels of 120V or 240V which is suitable for homes and systems.

The core of a transformer provides the main component in the circuitry because it offers a path for the magnetic flux. First and second windings are also vital. These two coils of wire transform voltages. A transformer shall step up the voltage when there are more secondary windings than primary and step down when there are fewer. Generally mounted on utility poles at a height to deliver moderately high but consistent voltage to homes while still ensuring domestic system compatibility, residential transformers are kept at low voltages for effective energy efficiency and safety.

Types of Transformers Used in Residential Areas

1. Step-Down Transformers

Step-down transformers are the most common type used in residential areas. Their primary function is to reduce the high voltage supplied by the power grid to a safer, usable level for homes, typically 120V or 240V. These transformers feature fewer windings on the secondary coil compared to the primary coil, reducing voltage effectively while maintaining energy efficiency. They are often mounted on utility poles or installed in ground-level boxes.

2. Pole-Mounted Transformers

 Pole-mounted transformers are smaller units affixed to utility poles, designed to serve individual homes or small groups of residential buildings. These transformers are oil-filled for cooling and insulation, and their elevated positioning helps protect them from potential damage while ensuring the safe distribution of electricity.

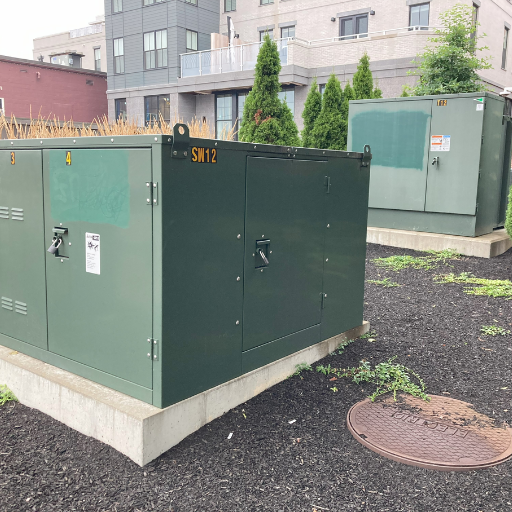

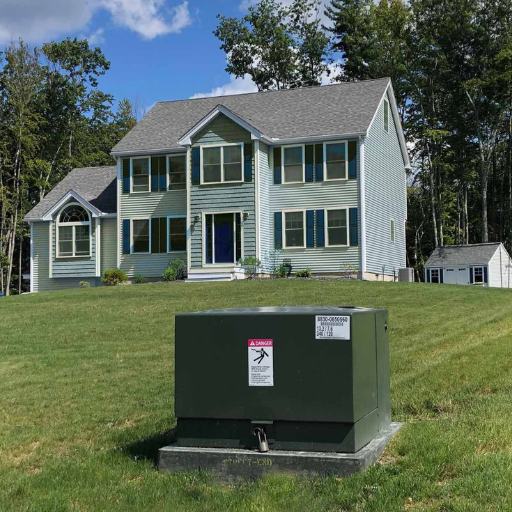

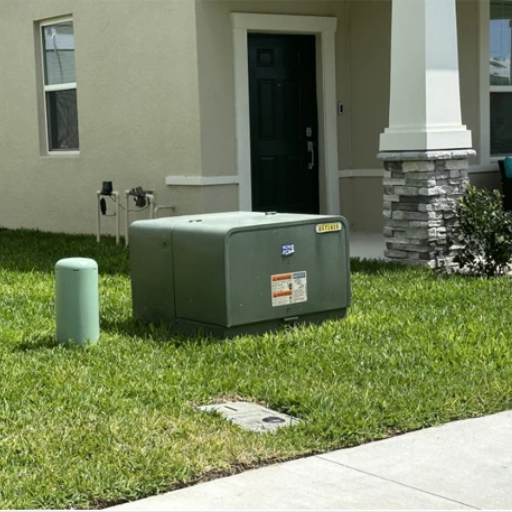

3. Pad-Mounted Transformers

Pad-mounted transformers are enclosed, ground-level units that serve areas where overhead power lines are not suitable, such as urban or suburban neighborhoods. These transformers are safely housed in metal cases to prevent tampering or damage and are key in delivering reliable power supply in underground distribution systems.

All of these transformer types ensure safe and efficient electricity distribution by adapting voltage levels to meet residential demand while minimizing transmission losses and adhering to safety standards.

The role of low voltage in residential transformers

Low voltage is essential in transformers for homes since it makes sure that the electricity delivered is convenient and safe for household appliances and systems. Household transformers reduce the high voltage from primary distribution lines, which is usually between 7,200 and 14,400 volts, to 120/240 volts that are used in homes. This reduction in voltage reduces the possibility of electrical risks, guarantees an ideal match with average residential electrical appliances, and improves efficiency by lowering transmission losses over small distances. The primary goal of most residential transformers is to comply with the regulations about the performance, durability, and safety of users in residential premises, and as such, these devices are precisely engineered to accomplish this objective.

Why choose a Daelim transformer for residential use?

Because of their precise engineering, daelim transformers offer the best value for residential use. They are also remarkably reliable and pass a wide range of safety checks. These transformers provide stable voltage regulation which ensures the smooth, safe, and efficient functioning of household electric appliances. Daelim puts a premium on energy efficiency which lowers energy waste and operational costs over time. Moreover, daelim transformers provide reliable performance and durability while exceeding the industry standards; leading to their long-lasting functionality with almost no maintenance. Homeowners can rest assured that with Daelim, the energy solutions will always be reliable and cost-efficient.

Features of Daelim Residential Transformers

1. High Energy Efficiency

Daelim residential transformers are designed with cutting-edge technology to minimize energy loss and optimize performance. This results in reduced operational costs and a lower environmental footprint.

2. Exceptional Voltage Regulation

These transformers ensure consistent and stable voltage output, safeguarding household appliances from fluctuations and potential damage caused by electrical instability.

3. Advanced Safety Features

Daelim implements rigorous safety measures, including temperature control systems, overload protection, and high-grade insulation to ensure user safety and prevent hazards.

4. Compact and Durable Design

Engineered with robust materials, Daelim transformers are built to withstand harsh environmental conditions while maintaining a compact and space-efficient design suitable for residential installations.

5. Minimal Maintenance Requirements

With a focus on reliability and long operational life, Daelim residential transformers require little to no maintenance, reducing downtime and additional costs over the years.

6. Compliance with Industry Standards

Daelim transformers exceed global regulatory standards, such as IEC and ANSI, ensuring maximum reliability, quality, and peace of mind for homeowners.

Benefits of Using a Daelim Transformer in Homes

1. Stabilized Power Supply

Daelim transformers ensure a consistent and stable power supply by regulating voltage fluctuations, thereby protecting household appliances from damage caused by sudden power surges or drops. This leads to improved energy efficiency and longer appliance lifespans.

2. Enhanced Safety and Reliability

Equipped with advanced safety systems such as thermal overload protection, short-circuit resistance and fire-safe insulation, Daelim transformers prioritize user safety while minimizing risks of electrical faults. Their robust construction ensures consistent and reliable operation under all conditions.

3. Cost-Effective and Low Maintenance

The minimal maintenance requirements of Daelim transformers reduce operating costs over time, offering homeowners a cost-effective solution. Their energy-efficient design also helps decrease electricity bills, contributing to significant long-term savings.

4. Durability in All Environments

Built with corrosion-resistant materials and advanced engineering, Daelim transformers can withstand extreme environmental conditions, making them suitable for varied residential settings. Their space-efficient design ensures easy installation even in confined areas.

5. Compliance and Certification

Meeting stringent international quality standards, such as IEC and ANSI, Daelim transformers deliver peace of mind through adherence to rigorous safety and performance benchmarks, ensuring optimal functionality and reliability for homeowners.

Comparing Daelim with Other Transformer Manufacturers

When comparing Daelim transformers to other leading manufacturers such as ABB, Eaton, and Siemens, several distinct advantages and differentiators emerge:

1. Cost Efficiency

Daelim transformers are recognized for their competitive pricing and low maintenance requirements. While ABB and Siemens provide durable and efficient solutions, their costs are often higher due to advanced customizations and extended warranties. Eaton focuses on modular solutions that balance price and performance, but Daelim stands out by offering a cost-efficient design optimized for residential use without sacrificing quality.

2. Performance in Various Environments

While competitors like Siemens and ABB produce high-performance transformers capable of operating under extreme conditions, Daelim delivers equivalent durability through corrosion-resistant materials and advanced engineering at a more affordable cost. Additionally, Daelim’s space-efficient designs offer an advantage in installations with limited space compared to bulkier alternatives from other manufacturers.

3. Compliance and Standards

All major manufacturers comply with international standards, including IEC and ANSI, ensuring quality and reliability. However, Daelim maintains competitive compliance levels while emphasizing affordability, making it an ideal choice for homeowners seeking certified, high-performance transformers without overpaying for industrial-grade options.

4. Energy Efficiency

Whereas brands like Eaton and ABB offer energy-efficient solutions often targeted at large-scale industrial users, Daelim focuses on providing highly efficient transformers for residential settings. This niche approach ensures homeowners benefit from reduced energy consumption and savings over time.

Overall, Daelim transformers distinguish themselves by combining cost-effectiveness, durability, and compliance with international standards. While competitors offer broader portfolios, Daelim prioritizes solutions tailored to residential needs, making it a highly practical choice for homeowners.

How are residential transformers installed and maintained?

Installation of Residential Transformers

The installation of residential transformers involves several critical steps to ensure optimal performance and safety. First, the transformer must be positioned on a stable, level surface, preferably on a concrete pad or mounted securely if pole-mounted. The location should meet local clearance and zoning requirements to maintain safety and ease of access. Following placement, primary and secondary connections are established according to the manufacturer’s wiring diagrams and local electrical codes. Proper grounding is essential to ensure safety and reliability. Before energizing the transformer, all connections should be thoroughly inspected and tested.

Maintenance of Residential Transformers

Regular maintenance is vital for extending the lifespan and efficiency of residential transformers. Key maintenance tasks include periodic visual inspections for signs of damage, rust, or leaks. Electrical connections should be checked for tightness, and the load levels must be monitored to avoid overloading. For oil-filled transformers, oil quality should be tested periodically to assess insulation properties and identify contamination. Ensuring adequate ventilation around the transformer prevents overheating. Adhering to a scheduled maintenance plan provided by the manufacturer reduces potential failures and ensures long-term performance.

Understanding residential transformer wiring

A thorough comprehension of the components, how they interconnect, and the associated safety protocols are critical in the understanding residential transformer wiring. Household transformers generally transform high voltage electricity to a much lower level that can easily be utilized domestically. These devices usually contain primary and secondary windings. The primary side is linked to the utility supply, while the secondary side further connects to the house power.

While wiring a residential transformer, corresponding to the step-by-step instructions that the manufacturer provides is highly important. The markings on the primary and the secondary terminals are H1, H2 for primary winding, X1, X2, and in some cases X3 for grounding neutral wires. First, make sure that the utility supply lines are connected securely to the transformer’s primary terminals and insulated properly to avoid short circuits. On the secondary side, the wires should be connected to the service panel and the neutral and grounding wires should be installed to compliant levels electrically.

Periodically required maintenance checks should include checking for loose connections, inspecting for overheating/discoloration, and checking to see if the device is properly grounded. Check to ensure all identified problems to remove potential electrical hazards are fixed. Always complying with the manufacturer’s instructions and approved local electrical codes guarantees the safe and efficient use of residential transformers.

Maintenance Tips for Residential Transformers

1. Visual Inspection: Perform regular visual inspections for signs of damage, such as oil leaks, corrosion, or discoloration. Ensure no obstructions are interfering with the cooling systems or vents.
2. Connection Integrity: Periodically check all electrical connections for tightness and continuity. Loose connections can cause arcing or overheating, leading to potential operational failures.
3. Grounding System: Ensure the transformer is properly grounded at all times to maintain electrical safety. Inspect grounding connections for corrosion, looseness, or damage, and repair as necessary.
4. Cooling System Maintenance: Inspect and clean the cooling components, such as radiators or fans, to facilitate proper heat dissipation. If the transformer is oil-cooled, monitor the oil levels and look for signs of contamination or degradation.
5. Thermal Monitoring: Use infrared thermography to identify potential hot spots that may indicate issues with internal components. Address any unusual temperature readings immediately.
6. Noise Levels: Listen for unusual sounds such as excessive humming, which may indicate core or winding issues. Address any abnormal sounds as part of routine maintenance.
7. Load Management: Verify the load on the transformer remains within its rated capacity. Overloading can lead to overheating, reduced efficiency, and premature failure.
8. Compliance Verification: Regularly ensure that the transformer operation adheres to local electrical codes and manufacturer specifications. Regular testing, including insulation resistance tests, helps maintain compliance and prevent hazards.

By following these detailed maintenance tips, homeowners can optimize transformer performance, extend service life, and ensure safe operation in residential electrical systems.

Ensuring your residential transformers are safe

Ensuring residential transformers operate safely involves adhering to proper installation, regular maintenance, and operational best practices. Here are concise answers and best practices based on widely sourced, authoritative information:

1. What are the key safety practices for transformers?

Ensure that transformers are installed in well-ventilated areas to prevent overheating. Keep the surrounding area clear of debris and combustible materials. Use high-quality grounding to prevent electrical faults and regularly inspect for signs of wear or damage to components.

2. How often should transformers be inspected?

Visual inspections should be conducted at least monthly, with a more detailed review quarterly or semi-annually. Include tests for insulation resistance, oil quality (for oil-filled transformers), and infrared thermography to identify hotspots.

3. What are the major causes of transformer failure?

Overloading, inadequate cooling, insulation degradation, and poor maintenance are the primary causes of failure. Operating transformers within their rated capacity and maintaining a proper cooling system are critical to preventing faults.

4. How do I ensure transformers are compliant with codes?

Verify that installations follow local electrical codes and standards, such as NEC (National Electrical Code) requirements. Engage certified electricians for installation and testing, and maintain data logs for inspections and tests.

Following these practices ensures optimal transformer functionality and enhances overall safety in residential settings. Regular maintenance, combined with proactive monitoring, significantly reduces the risk of equipment failure and potential hazards.

What factors affect residential transformer cost?

Several factors influence the cost of residential transformers, including:

1. Transformer Capacity and Type

The transformer’s kVA rating and type (e.g., single-phase or three-phase) directly impact its price. Higher capacity and more advanced designs typically cost more.

2. Material and Efficiency

Transformers using premium materials, such as copper windings instead of aluminum, or those built to meet high energy efficiency standards, can be more expensive.

3. Installation and Labor Costs

Installation complexity, local labor rates, and additional requirements such as permits can significantly affect the overall cost.

4. Compliance and Certifications

Transformers that meet specific code requirements, certifications (like UL or ANSI standards), or enhanced safety standards often have higher procurement costs.

5. Brand and Manufacturer

Reputable brands and manufacturers with proven reliability may charge a premium compared to lesser-known brands.

Understanding these key factors can help in making informed purchasing decisions tailored to specific residential needs and budgets.

The Impact of Transformer Weight and Size

The size and weight of a transformer impact its transportation, installation, and operational requirements. Larger and heavier transformers, for example, necessitate the use of specialized transport equipment or facilities resulting in higher logistics costs. Additionally, larger units may not be usable in many installment locations due to space limits imposing the need for compact designs or onsite assembly. Transformer size often correlates with capacity and cooling requirements which means larger, high-power transformers with advanced cooling systems will require considerably more space and weight because of their core and winding. In addition, size and weight will influence the amount of structural support that is needed because the installation may need reinforced foundations to support the additional weight. The optimization of size and weight is essential for striking a balance with performance, cost, and real-world constraints.

How transformer voltages influence cost

The levels of transformer voltage have a direct correlation to overall costs incurred. Higher voltage transformers tend to use advanced insulation and structural materials to withstand the increased electrical stress which increases the manufacturing and procurement costs. In addition, increased voltage requirements for transformers invariably have greater costs associated with additional safety features like larger clearances and advanced monitoring systems. On the other hand, high-voltage transformers increase the cost-effectiveness of large-scale power distribution over long distances because they can reduce transmission losses. On the contrary, lower voltage transformers are cheaper and simpler to create but they have greater losses in transmission. Choosing the most suitable voltage level requires a precise study of the balance between initial cost, efficiency of operations, and energy savings over time.

Evaluating the Residential Transformer Nameplate

The nameplate on a residential transformer provides vital technical information that ensures compatibility and efficient operation within a power distribution system. Key details found on the nameplate include:

1. Primary and Secondary Voltage Ratings: The specified primary (input) and secondary (output) voltage ratings indicate the intended voltage transformation. For residential applications, the secondary voltage is typically 120/240V to accommodate standard household requirements.
2. kVA Rating (Kilovolt-Amperes): This signifies the transformer’s maximum load capacity under normal operating conditions. Selecting a transformer with an appropriate kVA rating is essential to meet the electrical demand and prevent overloading.
3. Impedance (%): The impedance value affects voltage regulation and fault currents. A lower impedance ensures better voltage regulation, but a higher impedance helps limit fault currents in the system.
4. Phase Information: Residential transformers are often single-phase, serving standard household electricity demands, but the nameplate confirms the specific phase configuration.
5. Cooling Class and Insulation Type: Details about the cooling method (e.g., oil-immersed or air-cooled) and insulation class are provided, affecting efficiency and thermal limits.
6. Serial Number and Manufacturer Details: These identifiers are essential for maintenance, warranty claims, or technical support.

When evaluating a transformer’s nameplate, it is critical to cross-reference these specifications with the system’s design requirements to ensure optimal performance, compliance with safety standards, and long-term reliability.

How long do residential transformers last?

Residential transformers generally last between 20 and 30 years based on the running conditions, the load, maintenance, environmental factors, and more. With adequate care, including timely inspections and resolution of overheating or corrosion, their lifespan can be prolonged. Nevertheless, challenging conditions or continual overloading can deteriorate their lifespan. Usually, manufacturers provide estimates based on normal usage patterns which the appliances can be reasonably expected to last under.

Factors That Determine a Transformer’s Lifespan

1. Load Management: Frequent overloading can cause excessive heat generation, leading to the degradation of insulation materials and internal components. Maintaining a balanced and appropriate load significantly extends a transformer’s operational life.
2. Operating Temperature: A transformer’s lifespan is highly sensitive to the temperature it operates at. High temperatures accelerate insulation aging and increase the likelihood of system failures. Cooling systems and environmental considerations, such as proper ventilation, mitigate these risks.
3. Environmental Conditions: Dust, moisture, and pollution can contribute to corrosion, reduced insulation integrity, and mechanical wear. Transformers installed in clean, controlled environments often last longer than those exposed to harsh outdoor elements.
4. Maintenance Practices: Regular inspections, oil sampling, cleaning, and addressing minor faults early are all critical aspects of preventive maintenance. Neglecting maintenance accelerates wear and increases the probability of catastrophic failures.
5. Design Quality and Materials: Transformers built with superior materials and advanced designs are more resilient and efficient over time. Substandard components are more prone to wear, leading to reduced reliability.
6. Electrical Surges and Faults: External factors like lightning strikes, short circuits, or voltage spikes can inflict significant damage. Protective devices like surge arresters and circuit breakers help mitigate these risks.

By carefully managing these factors, a transformer’s lifespan can approach or even exceed the typical 20- to 30-year range. Proper adherence to maintenance schedules and environmental controls plays a pivotal role in ensuring long-term reliability.

Signs That a Transformer Should Be Stopped Immediately

1. Abnormal Sounds: Loud humming, buzzing, or cracking noises often indicate internal faults such as loose components, core issues, or electrical discharges.
2. Overheating: If the temperature rises significantly beyond the designed operating limits, it may point to issues like overloading, poor ventilation, or internal faults. Immediate shutdown is critical to prevent severe damage.
3. Oil Leaks or Contamination: The appearance of oil leaks, discoloration, or a burnt smell in transformer oil could signal insulation breakdown or overheating, which requires urgent attention.
4. Smoke or Burning Smell: Smoking or the smell of burning insulation or oil is a major warning sign of internal arcing or component failure that necessitates stopping the transformer immediately.
5. Frequent Tripping of Protective Devices: If protective devices like circuit breakers or relays trip repeatedly without an identifiable external cause, it indicates a potential internal fault.
6. Unusual Voltage or Current Fluctuations: Significant deviations from expected output levels might signal winding damage, short circuits, or other internal issues requiring immediate action.
7. Partial Discharge or Sparking: Visible sparking or discharge around bushings, terminals, or other external components suggests an insulation failure that must be addressed urgently.

If any of these signs are detected, immediate shutdown and inspection by qualified personnel are imperative to prevent further damage and ensure safety.

Extending the Life of Your Residential Electrical Transformer

To ensure the long life of your home electrical transformer, regular maintenance and smart usage are paramount. Start by making sure that the transformer isn’t operating beyond the specified limits so overheating or mechanical damage does not happen. One of the most common reasons for malfunctioning is overloading, which puts severe stress on the insulation and impacts the components encapsulated within.

Set intervals in which you monitor for wear and tear such as oil leakage, rusting, or cracking of the casing. Insulating oil used in oil-filled transformers should be periodically checked for moisture content, acidity, or other ailing substances that might affect performance over a duration. Providing sufficient space around the transformer allows for adequate ventilation which ensures proper cooling and thermal relief.

The transformer can be safeguarded using surge protectors or lightning arresters which helps in preventing damage to the transformer from voltage spikes during electrical storms or grid outages. Furthermore, the transformer should never be placed in areas susceptible to flooding or harsh environmental changes as these can lead to faster corrosion. Following this along with your manufacturer’s instructions will allow you to not only keep your residential transformer safe but also optimize efficiency.

References

Transformer

Electric power distribution

Three-phase electric power

Frequently Asked Questions (FAQ)

Q: What are residential transformers used for?

A: Residential transformers are used for residential power distribution systems to step down high voltage electricity from power lines to a lower voltage suitable for home use, typically single phase 120v and 240v.

Q: What are the common types of residential transformers?

A: The common types of residential transformers include pole mounted transformers, which are typically seen hanging around electrical poles, and pad mounted transformers, which are housed in small green boxes on the ground and connected to underground distribution lines.

Q: Are residential transformers safe?

A: Yes, residential transformers are designed to be safe when properly installed and maintained. Pad-mounted transformers, for example, are enclosed to prevent accidental contact with live electrical parts, and pole-mounted transformers are installed high on poles, out of reach.

Q: What are the typical residential transformer voltages?

A: The typical residential transformer voltages are single-phase 120v and 240v, which are standard for most homes. These voltages are derived from stepping down the high voltage from the distribution line.

Q: How much does a residential transformer weigh?

A: The weight of a residential transformer varies depending on its capacity and type. Pole mounted types are the cylindrical containers and can weigh between 100 to 300 kg, while pad mounted transformers can weigh significantly more due to larger enclosures and additional safety features.

Q: What is involved in the maintenance of a residential transformer?

A: Maintenance of a residential transformer includes regular inspections to ensure that connections are secure, no leakage of insulating fluid, and that the transformer’s load distribution is balanced. It is essential for ensuring the transformer’s longevity and performance.

Q: How does a transformer explosion happen?

A: A transformer explosion can happen due to several reasons such as a short circuit, overloading, or a lightning strike. Proper maintenance and monitoring of transformer ratings can mitigate these risks.

Q: What are the key considerations in choosing a residential transformer?

A: Key considerations include the transformer’s kV A rating, the type of mounting (pole or pad), and the specific needs of the home’s power system. It is essential to consult with a renowned transformer manufacturer or a reliable transformer supplier to ensure the transformer meets all safety and performance standards.

Q: How does the residential transformer’s load distribution affect its performance?

A: The transformer’s load distribution affects its performance by determining how efficiently it can supply power to the home. An unbalanced load can lead to inefficiencies and potential damage to the transformer, so it is crucial to ensure balanced distribution across all circuits.
