In today’s world, the importance of High voltage transformers cannot be overstated. They continue to be one of the most vital components for the transmission and distribution of electrical energy. Their primary application is transferring electricity with high efficiency across a wide range of voltage levels. This enables long-distance transportation, integration into various systems and delivery to end-users. These devices also range in sizes, from the large scale units used in power grids to those found within small household appliances.
This article is focused on the primary engineering concepts of high voltage transformers, the importance of a transformer in energy systems, and its wide applications, which makes them indispensable in modern infrastructure. By looking at the operational principles, design features, and technological advancements that have been made in these transformers, we present the argument that they make industrial processes and household appliances efficient and easy to use. No matter what your occupation is, be it an engineer, a professional in the energy industry, or just a curious layman, this post has something informative and useful for everyone regarding high voltage transformers.
What is a high voltage transformer and how does it work?
High voltage transformers are devices meant to change the level of an alternating current voltage between circuits. These devices, also known as step up or step down transformers, are designed to work according to Faraday’s law of electromagnetic induction. This law states that a change in magnetic flux through a coil induces an electromotive force (EMF) within the coil. In simpler terms, the alternating current supplied to the primary winding induces a magnetic field in the core transformer which through electromagnetic induction induces a voltage in the secondary winding. The output voltage of the transformer is determined by the input voltage and the ratio of turns in primary and secondary coils. For areas where power needs to be transmitted over a long distance, high voltage transformers are ideal as they greatly reduce energy losses by lowering current levels. This enables electrical systems to be used not only in industrial settings but in residential ones as well.
Understanding the basics of transformer operation
Transformers are technological gadgets that serve as electromechanical devices, using electromagnetic induction to change the alternating current (AC) from one level of voltage to another. The core components of a transformer comprise a core (often laminated iron to minimize eddy current losses), a primary winding and a secondary winding. When electrical energy is fed into the primary winding, it works at a predetermined voltage to construct a magnetic flux in the core. This happens in the core which serves as the core of the transformer. The alternating magnetic field fluctuation connects with the secondary coil and a voltage is produced. This voltage is proportional to the transformer’s turns ratio which is defined in terms of the number of windings in the primary coil compared to the secondary coil.
Transformers function at load and therefore when there are high demands on the device, They also have high efficiency. This makes them indispensable for a variety of functions such as scaling back voltage for consumer electronics or scaling up voltage for high-voltage power lines. Selecting the right materials and designing the correct structure as well as implementing the proper cooling systems are vital to achieving optimal performance. The efficiency of a transformer, however, is contingent upon lessening various losses, including copper losses resulting from the winding resistance and core losses that arise from the hysteresis and eddy currents.
The role of windings in high voltage transformers
The transformation of electrical energy into high voltage power comes with the use of high voltage transformers which utilize primary and secondary windings that use electromagnetic induction. The construction of these components determines the transformer’s efficacy. For high voltage usages, these windings are constructed with attention to detail to ensure that electric stress is properly dealt with and energy waste is minimized. The type of winding used (whether it is cylindrical, disc, or helical), the nature of the used material (aluminum or copper), and the insulation design are all factors that can affect performance. Moreover, the prevention of overload and insulation failure at high voltage is also ensured through the adequate arrangement and separation of the various windings.
Differentiating between primary and secondary voltage
Primary voltage and secondary voltage represent the input and output voltages of a transformer. The primary windings have a primary voltage connected to them while the secondary windings have a secondary voltage, which is produced by induction. The relationship between the above mentioned voltages is referred to as the turns ratio which is defined as the ratio between the number of windings in primary and number of windings in secondary. This relation can be stated mathematically as:
Vp / Vs = Np / Ns
Where:
Vp = Primary voltage (input voltage)
Vs = Secondary voltage (output voltage)
Np = Number of turns in the primary winding
Ns = Number of turns in the secondary winding
To ensure proper functionality, the device will have the following technical parameters to observe and consider:
Voltage Rating:
The primary voltage should be equal to the supply voltage.
The voltage on the secondary side should be suitable for the load connected.
Frequency:
The frequency on both windings should be equal, commonly 50 Hz or 60 Hz depending on the location.
Load Characteristics:
The connected load of the transformer such as resistive, inductive or capacitive will determine the efficiency and voltage regulation of the transformer.
Insulation Requirements:
Safe handling of the gaps between primary and secondary voltage levels calls for adequate insulation measures.
The parameters need to be wisely designed and verified so that transformers achieve safe and efficient transfer of electric energy between circuits with different voltage levels.

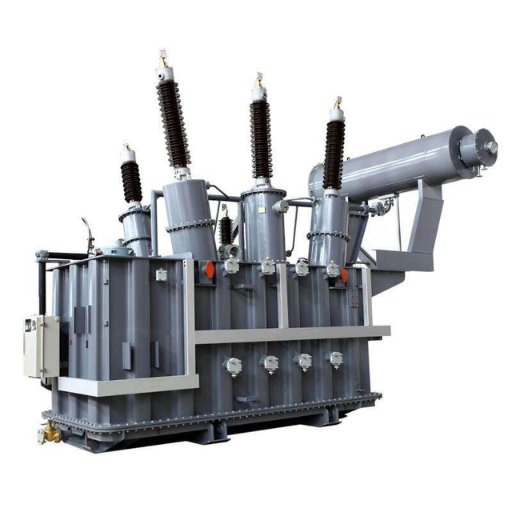

What are the main types of high voltage transformers?
Main Types of High Voltage Transformers: A Detailed Examination of Transformers Used in High Voltage Applications and their Classifications.
The design, use, and functionality of high voltage transformers will determine how they are grouped.
Power Transformers: These transformers are often a part of the transmission and distribution systems where they are used to elevate or lower voltage levels. They are usually constructed for maximum efficiency and sustain continual use when under a load.
Instrument Transformers:
Current Transformers (CT): These are employed in the measurement of high currents, as they scale the overabundant current into a form that can be manageable by other instruments and protection mechanisms.
Voltage Transformers (VT) or Potential Transformers (PT): Those pieces of equipment that step down the very high alternating voltages to lower alternating voltages at manageable and measurable levels for metering and protection.
Distribution Transformers: These are frequently applied in the last stages of power distribution networks, where they perform the final voltage reduction transformation to end users at safe levels.
Transformer Rectifier Units (TRU): These consist of a transformer with a rectifier and, are used for particular industrial purposes like electrochemical processes or in structures that require central DC power supplies.
HVDC Transformers: For the high-voltage direct current systems, these transformers are designed to manage the changing of AC to DC and DC to AC; to increase the efficiency of the long distance power transmission.
Each set of transformers is designed with their respective operation conditions in mind alongside environmental conditions, all the while adhering to safety and performance measures set.
Step-up vs. step-down transformers: Key differences
The difference between step-up transformers and step-down ones is in their functions. A step-up transformer increases voltage from the primary to the secondary winding, while a step-down transformer performs the opposite: it decreases voltage. This operational difference is determined by the turn ratio of the windings, which in turn is determined by how many turns there are in primary versus secondary windings. A step-down transformer has fewer turns in the secondary winding compared to the primary, while a step-up transformer has more.
Increasing voltage is also the primary function of step-up transformers at power generation stations. Voltage is increased so that power can be transmitted efficiently over long distances, and this higher voltage results in lower energy losses. Input voltages can be common and range around 11 kV, while output voltage scales up to 400 kV or more due to operational requirements. On the other hand, step down transformers are utilized closer to end users so that voltages can be lowered before actual consumption. 400 kV can be reduced to consumer voltage levels, such as 230 V or 120 V.
The specific technical details are:
Voltage Ratio, as expressed in Primary to Secondary Voltage
Efficiency, which on average is between ninety five and ninety nine percent
Frequency, for example, standard values like fifty Hz or sixty Hz
Power Rating; measured in kVA or MVA depending on the level of power for that application
Impedance, defined in percentage and is vital for system equilibrium
These two types are components of electrical power systems and are expected to function optimally within certain prescribed limits of their design applications.
Power transformers vs. distribution transformers
The differences between power transformers and distribution transformers lie within the scope of their respective applications in electrical systems. Power transformers can carry electricity over long distances through high voltage transmission lines, and are thus best suitable for generation and transmission networks. They are designed for full load conditions which enables them to work efficiently, and as a result, are bulkier with higher power ratings. Distribution transformers, however, serve the purpose of lowering the voltage to an appropriate level suitable for end-user use in residential, commercial, or industrial areas. These transformers are also rated for lower voltages and optimized for partial load and lower efficiency due to the nature of their application. Although power and distribution transformers contribute towards the same purpose, they perform different roles and are built differently for engineering requirements at various stages of power delivery.
Isolating transformers and their applications
An isolating transformer is an electrical device that is used to couple power between two circuits with galvanic isolation. This isolation is done by separating the primary and secondary windings, so there is no direct electrical connection. The most important function of these transformers is to provide protection to equipment, increase safety, and suppress electrical noise in delicate systems.
Some important applications:
Safety Enhancement:
In both industrial and certain medical circumstances, isolating transformers are favored to shield individuals from electric shocks. By isolating the connected circuits, they help reduce risks of ground loop currents and stray voltage.
Electrical Noise Reduction:
They are frequently used in power sensitive devices such as their equipment for recording audio, telecom systems, and precision instruments. They require clean power. The superiority of their isolation minimizes high frequency noise and EMI (electromagnetic interference).
Voltage Conversion:
Even though falls short concerning step-up or step-down transformers, avoiding this characteristic of isolating voltage transformers is a mistake. It is certainly of great importance in balancing different voltage levels of many electrical networks.
Industrial and Laboratory Use:
These transformers are virtually applied to all test benches, control circuits, and industrial machines where power has to be taken out of their isolated form for testing or work.
Technical Parameters:
Voltage Ratings:
Most voltaic ratings are often 110V-240V which is for standard purpose isolating transformers, but industrial ones can go as high as 480V or even higher.
Power Ratings
Range from hundreds of Volt-Amperes (VA) for sensitive equipment to several Kilovolt-Amperes (kVA) for industrial uses. For instance, units from 1kVA to 10 kVA are common in laboratory and manufacturing facilities.
Frequency
Standard operating frequencies are 50 or 60 Hz range. However, specialized applications can have them higher than those numbers (ex 400 Hz in aerospace environments).
Insulation Resistance
A very high insulation resistance value is necessary to ensure adequate separation, often greater than 1 MΩ.
Leakage Current
Engineered to operate with extremely low leakage currents (typically less than 0.5mA) to comply with safety standards such as IEC 60601 for medical equipment.
The inclusion of isolating transformers into electrical systems allows industries to ensure high safety, good performance, and less noise interference, providing an outstanding solution for all types of industries.
How are high voltage transformers used in power transmission?
High voltage transformers are crucial components in power transmission systems because they allow efficient transfer of electrical energy over long distances. It is achieved by increasing the voltage level at generation stations to reduce energy losses in transmission line resistance. At the receiving end, high voltage transformers lower the voltage to levels that are safe and suitable for industrial, commercial or residential use. The two processes of increasing and decreasing the voltage level guarantee the safe and efficient delivery of electric power over long distances in the grid.
The importance of high voltage in long-distance power transmission
Using several synonyms, paraphrase the following while maintaining the same context. Begin and finish the paragraph with a summation statement. Although posted electric power is transmitted at high voltage, the reasoning for this stems from the reduction of energy losses because of high resistance in long distance transmission lines. Long distance transmission using high voltage is economically viable because of the losses in Joule heating power in wires losing its efficiency.
For instance, power losses could be reduced fivefold by merely raising line voltage from 110 kV to 220 kV while keeping measured line power levels unchanged. New technology 110kV-765kV alternating current (AC) and up to 1100kV high voltage direct current (DC) HVDC transmission lines are now able to cover distances and power requirements. The power that can be economically used with these energies is reduced due to “power” loss in AC systems. Ultra long distances are economical with HVDC. Power loss due to ‘non’ active energy adder is missing.
Efficiency in distances between countries with extensive electricity grids and economic supplies can be saved with these power voltages.
Substation transformers and their role in power distribution
Power distribution system incorporates substation transformers which are fundamental in the conversion of power from one voltage level to another. Their prime reason is to step up voltage for transmission across long distances or step it down for the consumption of an end user. These types of transformers have variable load and specific voltage ranges which can be used owing to the changing parameters of an electrical grid.
These transformers are found at the substations and are responsible for ensuring that voltage fluctuations that occur due to supply and demand changes do not go beyond limits that can cause damage to the feeder circuits and lead to stable power supply. They integrate cooling and heating systems, insulation, and advanced monitoring technologies to improve efficiency and reliability. Substation transformers are an integral part of the power distribution system, facilitating voltage tuning and load balancing to reduce energy losses, control the grid, and enhance resilience to interruptions for secured power delivery to all city and countryside consumers.
Voltage levels in transmission and distribution systems
The design of the voltage levels in transmission and distribution systems is aimed at increasing efficiency and reducing expenditure on energy while delivering power. This is the reason why high-voltage transmission systems such as 110 kV, 220 kV, or even 500 kV are used to minimize resistive losses. For distribution systems, lower voltage levels of 11 kV or 33 kV are stepped down further to standard consumer levels of 120 V or 240 V, which depend on the region. Effective energy transfer is ensured, but the distinctions made are within acceptable limits of safety, cost, and technical value.
What are the safety considerations when working with high voltage transformers?
When dealing with high voltage transformers, it is imperative to evaluate safety measures to avoid accidents and promote operational reliability. Among the key measures to consider are insulation and grounding, which help with electromagnetic shock. Electric workers are expected to cover their naked skin with personal protective equipment (PPE), including insulated gloves and high voltage face shields, and boots. Some crucial procedures are ensuring strict following of the lockout-tagout (LOTO) measures, which deactivate and isolate the electrical circuits during maintenance works, as well as deactivation of the energized components. Also, complying and implementing the established clearance requirements is validated as key. Moreover, frequent visual examination and performance tests of the equipment assist in determining specific threats such as damaged insulation or poor relations, which may inhibit the occurrence of faults. Thorough training processes combined with observance of both local and international regulation codes, for instance, OSHA, and IEEE safety regulation guides have further provided for better safety.
Insulation techniques for high voltage transformers
In the selection of insulation methods concerning high-voltage transformers, both electrical and thermal performance criteria are taken into account to guarantee reliability and durability. Usually, solid insulations such as pressboard and even kraft paper are preferred because of their high dielectric strength and considerable mechanical strength. Most of them are also impregnated with transformer oil which functions as an insulator and coolant by filling in the voids and increasing the breakdown voltage. Moreover, gas-insulated transformers operate with their SF6 gas for insulation in some cases, particularly where size reduction or environmental isolation is necessary.
Some major technical parameters include dielectric strength, for example – for pressboard >6 kV/mm and transformer oil >50 kV at 2.5 mm gap thermal conductivity to keep heat dissipated properly, and moisture content >0.5% in solid insulation materials. On top of that, to guarantee long term performance, I utilize the proper drying techniques to get rid of moisture during manufacturing and recommend a close watch on systems prone to discharges, which should be continuously monitored to detect signs of degradation or partial discharge activity. These ways enable high operating standards to be maintained in high voltage transformer systems.
Protective measures in transformer installations
My system combines preemptive and responsive measures for the protection of transformer installations. These include the placement of surge arresters to protect against increased voltages and the use of protective relieving systems that enable speedy isolation of faults. I also pay attention to placing ‘firewalls’ at the right places and having fire containment barriers that limit oil spills to reduce the chances of overheating or leakages. Taking thermal images and insulation examinations regularly allows me to reveal possible challenges before they arise. Adopting these steps conforms to international standards of improving the reliability and lifespan of the system.
Training and certification for high voltage transformer maintenance
Professional development and proper certification of high voltage transformer maintenance personnel constitute critical factors affecting safety, reliability, and adherence to relevant institutional requirements. Key certifications typically include:
OSHA Safety Training
Guaranteeing knowledge and adherence to relevant Occupational Safety and Health Administration (OSHA) guidelines is important for an understanding of job specific risks and implementing safety measures, such as using lockout/tagout devices and fall protection systems while checking transformers.
IEC/IEEE Standards Knowledge
Knowledge of the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE) enables mercantile and industrial users of equipment to ensure observance and compliance with accepted methods of transformer testing, maintenance, and safety. Standards of importance include:
IEEE C57.152 (Guide for Diagnostic Field Testing of Power Transformers).
IEC 60076 (Power Transformers series).
Specialized Technical Training
Aimed at improving diagnostic abilities, practical courses on basic maintenance practices of insulation resistance testing, gas Chromatography of transformer oil(DGA), and partial discharge measurement are an integral part. Other useful reference technical parameters include:
A megohmmeter test of the windings insulation resistance should be greater than 1000 mega-ohms.
During normal operation, acceptable gas levels in DGA readings are Hydrogen (H2) under 200 parts per million (ppm).
NFPA 70E Certification
This training covers arc flash and electric hazard risks, with special attention on personal protective equipment (PPE) for insulated gloves of the appropriate voltage class and flame resistant garments.
On-the-Job Apprenticeships or Advanced Training Programs
Using transformer systems like high voltage oil filled ones which require more maintenance as well as oil sampling, thermographic monitoring, and inspection of bushings. Such practical experience is given to students from manufacturers or accredited programs. Such students also receive proper instruction on test data analysis and predictive maintenance formulation.
With enough understanding of those critical parameters, proper diagnostics and maintenance are ensured to extend the lifetime use of high voltage transformers while the unit is under as little risk as possible.
How to choose the right high voltage transformer for your application?
There is a rigorous analysis of several important parameters in choosing a suitable high voltage transformer. First of all, what are the voltage and current requirements of the application? Make sure it is suitable for the load and distribution network. Proceed by identifying the transformer’s power rating (kVA or MVA) and it must be equal to or more than the maximum load anticipated otherwise there is a risk of the transformer’s failure. Identify the environmental factors including but not limited to, temperature, altitude and pollution as these parameters affect the degree of design and cooling requirements e.g. dry-type or oil-immersed transformers. Moreover, it is necessary to check the insulation class and dielectric strength of the transformer that in addition to safety standards compliance, knows no limits to long term permanence. Last but not least must include regulatory certifications, efficiency ratings and maintenance feasibility while identifying a transformer appropriate to the specifications and financial constraints of the application.
Determining the required input and output voltage
I choose the requisite transformer input and output voltage by first ascertaining the voltage specifications of my application so that there is no incompatibility. When determining the input voltage, the source utility grid, generator, or any other source of power will have to be taken into consideration. When determining the output voltage, the operational voltage of the equipment or devices is taken considering its design parameters. There may be some drops across the distribution system and once again I have to ensure the efficiency and performance of the whole system. When these parameters intersect with industry standards and system specifications, I can guarantee that the transformer selected should remain within boundary conditions.
Considering power capacity and efficiency
For every application, I calculate the total load requirements for the application in kilovolt-amperes (kVA) as the total power supply of all linked machines is added. This guarantees that all installations have a transformer capable of supporting the maximum possible load and are not designed to One primary assumption that is made is that there is a 10-20% safety margin on top of the calculated load and this should be enough for future growth or changes in demand.
(System losses) are just as important because aside from the operational efficiency, they increase energy costs. I check the transformer’s efficiency rating which is given by the manufacturer as the percent of input power transformed into output power by the system with minimal losses. Economical transformers provide high output efficiency by cutting down the losses due to the core and winding resistances. This optimizes energy consumption and reduces operations costs over time. In addition, I check the transformer’s efficiency curve. With this, I can select a transformer that satisfies the power capacity requirements and the application’s efficiency requirements.
Evaluating environmental factors and cooling requirements
Before analyzing the environmental factors, I focus on the installation environment, for example, ambient temperature, altitude, and the degree of contamination by dust, moisture, or corrosive agents. Usually, transformers are constructed to the standard parameters of temperature +40°C and altitude <1000. Derate factors are, however, used for higher altitudes due to less air density and less efficient cooling. Moreover, there would be a need for enclosures of the transformer or protective coatings to mask the transformer from environmental aggressors.
The cooling requirements are based on the transformer’s load, heat dissipation capacity, and the operating environment. Usually used cooling techniques are natural air cooling (AN), forced air cooling (AF), and oil immersed cooling (ON). In most cases, the type of cooling oil (mineral or synthetic) and cooling class (ONAN, ONAF) are defined. The rise in temperature of the transformer when fully loaded should also be estimated to comply with IEEE or IEC limits.
Key Technical Parameters:
Ambient Temperature: The standard is set at ≤ 40°C; however, adjustments can be made for higher temperatures.
Altitude: Standard is set ≤ 1000m but derating is required for enhanced altitude.
Cooling Class:
Dry type: AN, AF.
Oil immersed: ONAN, ONAF.
Allowable Temperature Rise:
Oil immersed transformer: 55°C – 65°C.
Dry type transformer: 150°C (Class F), 185°C (Class H).
The chosen transformer will undoubtedly operate as intended while being adequately cooled and suited to its surroundings if these issues are attended to and confirmed compatibility with the engineering parameters set.
References
Frequently Asked Questions (FAQ)
Q: What is a high-voltage transformer and how does it work?
A: A high-voltage transformer is a device used to transfer electrical energy between two or more circuits through electromagnetic induction. It operates at high voltage levels and is primarily used to step up or down voltages in power systems. The winding of the transformer is critical for its function, allowing the safe distribution of electricity.
Q: How are high voltage power transformers used in power plants?
A: High voltage power transformers in power plants are used to step up the AC voltage generated by the power plant to higher levels for efficient transmission over long distances. This minimizes energy loss and ensures stable power delivery to substations where it can be stepped down for consumer use.
Q: What materials are commonly used in the construction of high voltage transformers?
A: High voltage transformers are typically constructed using copper wire for the windings due to its excellent conductivity. The core is often made of laminated steel to optimize magnetics and reduce energy loss. Insulating materials are also crucial to safely operate at high voltage levels.
Q: Why is copper wire preferred in high voltage transformer windings?
A: Copper wire is preferred in high voltage transformer windings because of its high electrical conductivity, which allows efficient current flows with minimal resistance and heat generation. This ensures the transformer can handle high power and operate efficiently.
Q: What are the key considerations for a transformer manufacturer when designing high voltage power transformers?
A: A transformer manufacturer must consider factors like the required voltage and power ratings, insulation strength, thermal performance, and physical size. Ensuring a robust design to handle high power and fluctuating load currents, while maintaining efficiency and safety, is essential.
Q: How does a step down transformer operate in high voltage applications?
A: A step down transformer in high voltage applications reduces the high voltage levels to lower voltages suitable for consumer appliances. This process involves electromagnetic induction where the primary winding receives high voltage, and the secondary winding delivers low voltage to the load.
Q: What role does magnetics play in the functioning of a high voltage transformer?
A: Magnetics is fundamental to the operation of a high voltage transformer. The core’s design and material influence how efficiently it can transfer energy between windings via electromagnetic fields. Optimizing magnetics reduces energy loss and enhances the transformer’s performance.
Q: Can high voltage transformers be used for isolation purposes?
A: Yes, high voltage transformers can be used for isolation purposes. Isolation transformers separate two circuits while allowing AC power supply to pass through. This is crucial for safety and protecting sensitive equipment from voltage surges and electrical noise.
Q: What is the significance of transformer boost in high voltage systems?
A: Transformer boost refers to the process of increasing voltage levels using transformers. In high voltage systems, this is essential for efficient transmission and distribution of electricity, ensuring that power plants can deliver energy over long distances with minimal loss.
