These types of transformers are essential parts of modern electrical distribution systems intended to deliver safe and reliable power across residential, commercial, as well as industrial facilities. Pad-mounted transformers are normally installed at ground level and are surrounded by grounded, vandal-proof housings which makes them perfect for urban areas and regions with strict safety regulations. In this article, we discuss various sizes of pad-mounted transformers their applications, capacities, and other important factors relevant to their selection. Attending to this text will provide users with knowledge on the impact of transformer sizes on the system’s performance, the space it demands, and the compatibility with specific power distribution requirements.

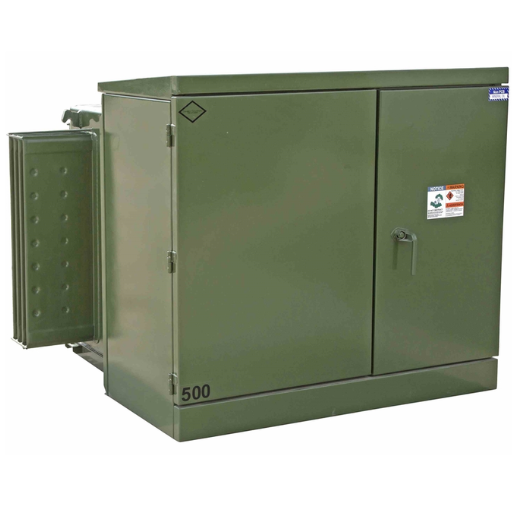

What Are the Standard Pad Mounted Transformer Sizes?
Pad-mounted transformers have different sizes based on the voltage and power needed to be customized. These sizes generally range from smaller units intended for homes or light commercial use at 75 kVA and less, and larger units which pour out 2500 kVA and more for heavy industrial work. Various other factors like primary and secondary voltage ratings, physical proportions, cooling systems, etc. determine standard configurations. When choosing a transformer size to work with, load demand, operational efficiency, installation space, and last but not least, integration into the power distribution network must be taken into account.
How is the Transformer Size Determined?
A transformer’s size is determined by several important aspects. The first focus is on the load demand which is calculated with the power requirement of all equipment in kVA along with the peak load and any possible expansion. Secondly, the corresponding primary and secondary voltage ratings are checked against the network to ensure compatibility. The type of load such as resistive or inductive is also very important as it impacts transformer efficiency and heat dissipation. Cooling requirements i.e. oil versus air, location environmental conditions, and physical spacing at the site are also important. Once the measurements are made, the actual transformer’s capacity is undersized or oversized, guaranteeing efficient energy loss, high performance, and dependability throughout the power distribution system.
What are the Typical Dimensions for Pad-Mounted Transformers?
The dimensions of pad-mounted transformers vary depending on design requirements. For lower kVA ratings, single-phase pad-mounted transformers have an approximate size of 30 inches in width, and depth, and a height of 40 inches. These dimensions increase relative to the unit’s power rating with a 167 kVA transformer’s dimensions estimated to be around 50 inches in width and depth and 60 inches in height. Such transformers enclosed within specially designed tamper and weatherproof cases are mostly used in industries and commercial settings. The largest-sized three-phase transformers begin at 70 inches in width, 60 inches in depth, and 70 inches in height, such as the 500 kVA transformer, but increase as the unit capacity increases. Compliance with industry standards such as IEEE C57.12.28 is assured through the tamper-resistant features. Depending on the particular application and installation needs, manufacturers provide specific data relating to dimensions.
How Do Voltage Requirements Affect Transformer Sizes?
As voltage requirements grow, unlike low voltage transformers that are rather compact higher capacity transformers require more power insulation which adds to the overall physical dimensions of the electric parts. Increased dielectric strength in high-voltage transformers also requires additional insulation which increases their size and weight drastically. Moreover features such as spacers between components and windings become necessary on systems that have higher than 33 kV because these particular systems require special care for safety and efficacy. However low voltage systems incorporate less insulation and windings which further aids in making them more compact. Basic operational requirements of a system about its load still need to be functionally met under a set regulatory requirement and guarantee health and safety alongside voltage requirements to fully integrate the unit.
How Do Single Phase Pad Mounted Transformers Differ from Three Phase?
Like single-phase pole-mounted transformers, single-phase pad-mounted transformers are less powerful and less complex in design and are most often found in residential districts and small commercial buildings where energy use is lower. Simplified design enables these transformers to be cost-effective and easy to maintain since these work on a single alternating current phase. In contrast, three-phase pole-mounted transformers have higher power ratings and are used in industrial, commercial, and utility settings. These transformers employ three alternating current phases, making them more efficient and reducing losses associated with energy delivery, enabling them to support greater loads. Also, three-phase systems can best serve applications where reliable and continuous power supply is of the highest importance.
What are the Key Features of a Single-Phase Transformer?
A single-phase transformer is designed to work with a single phase of alternating current and is mainly used for low-power applications, like in homes and small businesses. The most notable characteristic of a single-phase transformer is its simple design which consists of a single winding around a magnetic core, allowing electric energy to be transformed easily. Such a type of transformer is small, inexpensive, and easy to install and service. Single-phase transformers are commonly used for both stepping up and stepping down voltages, which helps loss accompanied by smaller loads in comparison to three-phase transformers. In addition, the voltage supplied by these types of transformers is steady and can be used for driving household apparatus or lower-powered machinery.
How Does a Three-Phase Pad-Mounted Transformer Work?
For maintaining electrical power at residential, commercial, and industrial premises, a three-phase pad-mounted transformer is a crucial device in the system. These pads transform the electric power received from a higher voltage region in the power grid to a lower, thence usable, value. In their internal structure, they have three sets of primary and secondary windings with delta or wye arrangement. Electric magnetic induction generates electricity in these wires when a current passes through their corresponding magnetic coil.
A pad-mounted transformer has a strong enclosure which makes it weather-resistant and vandal-proof, thus suitable for outdoor use, even at ground level. Stratified cooling enables these devices to maintain stability and reliability under variations of load, as well as over time or across all three phases, making efficient delivery possible. Built-in fuses and circuit breakers protect the device from overloads and faults, ensuring a long life and dependable power supply.
When to Use a 3-Phase Pad Mounted Transformer?
A three-phase pad-mounted transformer is used primarily for good electrical power distribution ranging from the distribution of the high voltage power lines to industrial, commercial, or densely populated areas. These transformers serve well in the case of high power load applications because they deliver steady and balanced three-phase power which is of utmost necessity for industrial machinery, HVAC systems, and large motors. They are perfect for exposed installations because of their sturdy, weather-proof construction, as well as their safe ground-level operations.
Also, these transformers can be used with medium voltage networks of 2.5 kV to 35 kV for reliable conversion of power and consistent performance across three phases. These transformers can be considered fault tolerant by generously allowing overloads through integrated features like fuses and circuit breakers. Integrated features also allow safe maintenance-friendly access. These transformers are considered ideal in low noise, compact installation space, and minimal environmental impact situations. Therefore making them a preferred choice in urban infrastructure or campus-style developments.
How to Choose the Right Pad-Mounted Transformer for Your Needs?
Choosing the right pad-mounted transformer entails taking into account a few important criteria. First, check the required voltage levels and see if they match your medium voltage network’s 2.5 to 35 kV range. After that, calculate the system’s power load requirements to estimate the kVA rating needed while guaranteeing that the transformer can adequately deal with peak loads and faults. Other factors such as temperature, humidity, or even exposure to outside elements also need to be evaluated to choose a unit with the right insulation and weather-proofing design. Then, take into account regional limitations like space and noise to see if a noiseless, compact unit can be used. In the end, take into account the ease-of-use maintenance features, like integrated circuit breakers, or access points which guarantee reliable long-term operation while ensuring ease of servicing.
What Transformer Specifications Should You Consider?
In the process of evaluating transformer specifications, primary attention must be given to the voltage rating. Check that both the primary and secondary voltage requirements are met in both step-up and step-down surgeries. Afterward, check the efficiency rating of the transformer in kilovolt-ampere (kVA) as well. Make sure that the transformer can also be able to provide for potential additional capacity requirements besides your current system’s load demand. Operational costs having to do with energy loss and efficiency are also critical; choose transformers with set efficiency benchmarks for operational cost maximization and compliance with industry norms like DOE or IEC standards.
These parameters along with the type of insulation and cooling method (oil-filled or dry-type) have an impact on safety and reliability for the given environment as well. Undoubtedly important are the short circuit strength and thermal characteristics which determine the transformer’s fault tolerance and heat dissipation capabilities. For other installations, especially in residential areas or highly populated regions, the noise levels are also very important to check. Lastly, operational features that impact maintenance such as access monitoring systems and predictive maintenance tools must be checked for long-term efficient operation with minimal downtime.
How Does KVA Rating Influence Transformer Selection?
The KVA (kilovolt-ampere) capability is one of the most critical features that affect the choice of a mulitwindings transformer to ensure its matching with the load is accurate. It establishes the level of apparent power that the transformer can serve without delivering too much heat energy that would breach its bounds. If a transformer is designed with a KVA rating lower than the expected load, it may cause overloads, boost inefficiency, Fail to insulate, and also damage the equipment. On the contrary, there will be higher investment costs to acquire KVA transformers that are too large; furthermore, should they be poorly utilized, operational efficiency will also drop.
The ultimate KVA values must incorporate primary factors like peak demand and expected future load growth along with the power factor to avoid miscalculating both under or over-containing the transformer. KVA ratings are also dependent upon certain load types like if they are resistive devices, which include lighting, or inductive devices, which consist of motors, or equipment capable of producing harmonic waves. The KVA rate in conjunction with the expected load will ensure that performance, costs, and system specifications are properly met.
Why is Transformer Design Important?
The importance of transformer design cannot be understated, as it has a profound effect on system reliability, efficiency, and economy. Properly designed transformers deal with sustained loads and their variations in an optimal manner, ensuring a balanced delivery of power while preventing overheating, faulty voltage drops, and inefficient power use. Effective design takes into account voltage levels, type of load (including resistive, inductive, or harmonic generating), and the likely future demand growth so that the transformer is neither oversized nor undersized. Such issues can stymie productivity and increase energy costs. Covering transformer needs for application specifics helps engineers reduce risk, protect electrical systems, and support performance and economy within a usable timeframe.
What Role Does Daelim Play in Transformer Design and Production?
Daelim greatly contributes to the design and production of transformers by providing sophisticated tailored solutions for the respective industry. With broad experience in engineering, Daelim ensures that every transformer works with established performance standards like IEC, and ANSI/IEEE, among others. The company introduces modern technologies such as highly efficient cores and novel insulation systems for improved reliability and operational lifespan. Furthermore, Daelim reduces energy consumption and environmental impact with sustainable design energy practices. Through rigorous Daelim quality control and the customer approach, Daelim serves the industry with strong, economical, and optimal transformers with exceptional quality and performance.
Who is Daelim in the Transformer Industry?
Globally revered as a leader in the transformer business, Daelim integrates the design, manufacturing, and supply of high-quality transformer solutions. With full-fledged technological capability and compliance with international standards, Daelim serves a wide range of industries such as energy, manufacturing, and utilities. These include power transformers, distribution transformers, general-purpose transformers, and specialized transformers which are manufactured to maximize efficiency, reliability, and sustainability. Along with a commitment to innovation and environmental protection, Daelim has taken a customer-oriented position, which has enabled the company to fulfill customer’s requirements by providing economical transformer systems that are developed to meet the transforming global energy needs.
What Makes Daelim Transformers Stand Out?
Daelim Transformers offset their rivals using advanced technology, thorough quality control, and compliance with IEEE, IEC, and ANSI standards. The company uses Modern engineering science to create transformers that are highly functional, dependable, and energy efficient. Daelim’s standalone products offer substantial customization to address distinct industrial and operational requirements. Also, Daelim’s eco-friendly policies are aimed at reducing energy losses and pollution during production by using new designs and environmentally safe materials. It is their exceptional after-sales services and prompt delivery that strengthen their market position as a relied-upon partner in the transformers industry.
How to Contact Daelim for Customized Solutions?
For custom solutions, visit Daelim Transformers’ official website, fill out the query form on the contact page, and we will get back to you shortly. Alternatively, you can contact us through our official email or customer service phone number, which you can find on our site. Moreover, Daelim is open to direct consultation services for specific projects which ensures clients get custom transformer solutions without hassle. Clients worldwide are also able to make further inquiries to our regional offices or sales representatives and their requests will be handled promptly.
What are the Benefits of Using Pad-Mounted Transformers?
In the world of electric distribution, pad-mounted transformers have transformed electrical distribution systems and become a key component. These adaptable devices are made for outdoor portable use, and can easily streamline and secure the conversion of high-voltage electricity for residential, commercial, or industrial use. These transformers can be used in even the most extreme weather conditions due to their sealed, tamper-proof enclosures. Additionally, the transformers allow for straightforward integration into underground electric distribution networks, minimizing the chance of accidental contact with live components. Their high efficiency and robust durability at such a low cost make them an excellent option for much-desired diverse applications.
How Do Pad-Mounted Transformers Improve Power Distribution?
Pad-mounted transformers improve energy distribution by managing the voltage within underground and overhead networks accurately. Their design prevents energy loss during transmission by lowering high-voltage electricity into safer and more usable levels for customers, making long-distance delivery more efficient. These transformers enable better organization of the system with their compact installation configuration which makes them easy to integrate into power grids in urban and rural areas without taking up too much space. In addition, these compact power grid installations come with sealed and weatherproof enclosures to guard against contamination, vandalism, and unwanted electrical hazards making sure that power supply is always uninterrupted and available. Pad-mounted transformers are vital in modern energy infrastructure because they increase reliability in the energy grid and make maintenance easier.
What Safety Features Are Included in Pad-Mounted Transformers?
Like every other device in a power distribution system, a pad-mounted transformer has to be tamper-proof and protected from vandalism and other such risks. These transformers come with enclosures that are secured by locks, thus increasing safety against unauthorized interference and vandalism. Sealed construction along with high-quality insulation prevents moisture and contamination from coming in, thereby reducing the chances of electrical faults occurring. To mitigate damage and danger, internal fuses and circuit breakers are installed to deal with overload and short-circuit situations. This also shields the transformer from damage and danger. Other features these transformers have to include safe guards devices for the relief of transfer of pressure to deal with too much internal pressure to stop equipment failure. Clear labels for warning and grounding systems that meet the standards provide added safety by lessening the risk of shocks to the personnel and members of the community. All of these measures enhance the safety of pad-mounted transformers and make them reliable devices for today’s power distribution systems.
Why are Pad-Mounted Transformers Widely Used in Power Distribution Systems?
Every power division system uses a pad-mounted transformer and it’s because of how compact, secure, and efficient in design it is. Since these transformers are placed within protective enclosures on the ground, there is no longer a need for overhead utility poles which eliminates towering eyesores in suburban and urban areas. Their robust construction allows them to endure diverse environmental conditions, thus making these transformers suitable for outdoor installation. Furthermore, pad-mounted transformers are used in underground power distribution systems which improves the reliability of the system by exposing it to low weather disruption. The ease of access for maintenance and low risk of unauthorized tampering achieved through securely locked enclosures further justifies the widespread use of these transformers in modern power distribution infrastructures. Because of the reliability of electricity delivery around the clock, these transformers have become an integral component.
References
Frequently Asked Questions (FAQ)
Q: What are the standard transformer dimensions for pad-mounted transformers?
A: The standard transformer dimensions for pad mounted transformers can vary significantly depending on the type and power rating. Generally, these transformers are designed to meet international standards, ensuring compatibility and safety in various installations. It’s important to refer to the specific dimensions provided by the transformer manufacturer for accurate sizing.
Q: What is a distribution transformer and how is it used?
A: A distribution transformer is used to step down the high voltage from power supply lines to a lower voltage suitable for residential or commercial use. These transformers are essential for power distribution systems, ensuring that electricity is safely and efficiently delivered to end users.
Q: What does a kva transformer indicate?
A: A kva transformer indicates the transformer’s power rating in kilovolt-amperes (kVA). This rating helps determine the capacity of a transformer to handle electrical loads. For example, a 1000 kva pad mounted transformer can handle a higher load compared to a transformer with a lower kVA rating.
Q: How do the core and winding materials affect transformer performance?
A: The core and winding materials of a transformer significantly affect its performance, efficiency, and reliability. The core typically uses high-grade steel to minimize energy losses, while the windings are usually made of copper or aluminum to efficiently conduct electricity. These materials help in reducing energy losses and improving the overall efficiency of the transformer.
Q: What are the differences between single-phase and three-phase pad-mounted transformer sizes?
A: Single phase pad mounted transformer sizes are generally smaller and used for lighter loads, while three phase pad mounted transformers are larger and used for industrial or commercial applications requiring higher power. The phase pad mounted transformer sizes are determined by the power requirements and the type of electrical system they are intended to support.
Q: What is a dry-type transformer and where is it typically installed?
A: A dry type transformer is a type of transformer that uses air instead of liquid for cooling. These transformers are typically installed indoors or in environments where oil-based transformers pose a risk of fire or contamination. They are often used in commercial and residential buildings due to their safety and low maintenance requirements.
Q: How does ambient temperature affect transformer performance?
A: Ambient temperature can significantly affect transformer performance, as higher temperatures can lead to overheating and reduced efficiency. Transformers are designed to operate within specific ambient temperature ranges, and it’s crucial to ensure adequate ventilation and clearance to maintain optimal performance.
Q: What is the significance of the transformer bushing?
A: Transformer bushings are critical components that insulate and connect the internal components of a transformer to the external circuit. They must withstand high voltages and provide a secure path for electrical current, ensuring the safe and efficient operation of the transformer.
Q: What are the advantages of using a grounded wye configuration in transformers?
A: A grounded wye configuration in transformers offers several advantages, including improved safety, reduced risk of overvoltages, and better fault detection. This configuration helps stabilize the voltage and provides a reliable path for fault currents, enhancing the overall performance and protection of the electrical system.
