A key component of sustainable energy production is wind turbines which require highly specialized transformers to be integrated into the power generation systems. These turbines are one of the most used components of sustainable energy production and serve to highlight persisting gaps in the global shift towards renewable energy. Understanding power generation systems includes having a solid grasp on the importance of effective movement and generation of electricity as well as the met technology innovations. This particular post will describe in detail the unique design features of these transformers, how they operate, and how they integrate wind energy into modern power grids. Furthermore, we will discuss the problems faced during the deployment and maintenance of these turbines, as well as changes in transformer technology deployment with the future of renewable energy. At the end of the post, it is hoped that this transformer’s information will serve as a testament to the importance of efficient, clean, renewable energy and why these turbines are deployed worldwide.
What Role Does a Transformer Play in Wind Energy?
The wind energy ecosystem relies on transformers which help link wind turbines to the electrical grid. Since the electricity generated by wind turbines often has a low output voltage, it is not convenient for transmission over long distances. It is here that transformers come in handy as they step up the voltage to higher levels to ensure optimal energy conservation while the electricity travels through power lines. At the same time, transformers can also step down the voltage at the distribution level to make it safe for residential and commercial usage. With the assistance of transformers, electricity from wind farms is successfully integrated into the power grid which in turn helps in the delivery of renewable energy.
Understanding the Basics of a Transformer
The basis of a transformer’s operation relies on the principles of electromagnetic induction. Essentially, it is designed to transfer electrical energy between circuits using two inductively coupled conductors, commonly referred to as primary and secondary windings. The cores of most transformers are made from laminated steel to reduce energy loss resulting from eddy currents. An alternating current flowing through the primary winding induces a magnetic field that generates a voltage across a secondary winding. Based on the ratio of the number of turns for the primary and secondary windings, transformers can be designed to either step up or down the voltage. One of the greatest features of transformers is the high degree of efficiency they offer. This is particularly true for modern transformers, which have been designed to achieve efficiency levels of 95% or greater. This makes transformers essential for transmitting power across long distances as the losses are minimal while ensuring that end-users get the proper voltages for their applications.
How Transformers for Wind Turbines Work
Any transformers in wind turbines are constructed to convert electrical energy to the appropriate voltage level for optimal transfer and consumption. Wind turbines’ nominal power output is in the range of 600 to 690 volts. The transformer, which may be positioned at the bottom of the turbine tower or within it, increases this voltage to levels that are often in the tens of kilovolts, which is appropriate for connecting to the electricity grid.
The process starts with the wind turbine’s generator producing alternating current which is supplied to the primary winding of a transformer. This alternating current produces a magnetic field within this active core, which then propels high voltage onto the secondary winding. Different transformers are always used for a variety of applications, and so a ratio that is specific to the electrical grid’s requirements is often used.
It is common for offshore wind farms or distant mechanical units to have their transformers which increase power to hundreds of kilovolts. This is done to minimize transmission energy loss. To increase the dependability and efficiency of these specific devices, they are built to withstand diverse loads, temperature changes, and environmental limitations caused by systems reliant on wind energy. The transformers are of equal importance in the increase of Vrsq, which allows renewable wind energy to be consumed efficiently and reliably.
The Importance of Voltage in Wind Power Generation
The voltage of wind power has to bear importance at the time of transmission and distribution. Offshore wind farms or wind turbines from remote locations require high voltage levels to reduce resistive losses at the time of long-distance electricity transmission. The voltage produced during wind energy conversion is generally stepped up to hundreds of kilovolts via step-up transformers. Such translations of energy ensure that over distances, energy incoherence is put to a minimum, preserving efficiency.
Renewable energy sources must be aligned with existing frameworks, and an overarching strategy for grid stability must be devised, requiring optimized voltages. Devices meant for voltage regulation as well as advanced control systems help stablize the free flow of power stemming from inconsistent wind speeds. Fluctuations of this sort are difficult to manage, and requires facility planning to ensure that supply is consistent and unequivocally effective.
Innovative methods to integrate grids and reample voltage assist in the smooth conduction of wind power, all whilst ensuring reliability and efficacy of systems that integrate natural resources. This points at why voltage management is so paramount; lack of proper voltage interference can hinder the use of dependable methods for wind energy incapturement.
How Do Wind Farm Transformers for Wind Operate?
Transformers at wind farms serve as the intersection between substantial voltage power generation from wind turbines and the integration of such energy into the main power offer. Electric power generated from wind turbines is within a few hundred volts to a couple of kilovolts. The operating voltage range for the wind farm is usually between 33kV to 400kV. These transmission levels depend on the requirements of the grid and are constructed on the farm site. Power loss that occurs during the transmission is reduced by using the step-up transformers. The step-up transformation also provides additional electrical insulation, cooling mechanisms, and built-in protection against the fluctuating power that may be generated by irregular wind speeds. All of this guarantees seamless gripping into the primary grid power and efficient trimming of energy losses.
Key Components of a Wind Farm Transformer
- Core
The transformer core is typically constructed from laminated silicon steel to minimize energy losses due to hysteresis and eddy currents. The core provides the magnetic pathway necessary for efficiently transferring energy between the primary and secondary windings.
- Windings
Windings are made of highly conductive materials such as copper or aluminum. The primary winding receives the input voltage from the wind turbine generator, and the step-up transformer secondary winding outputs the higher voltage required for transmission.
- Cooling System
Transformers used in wind farms often employ oil-based or air-based cooling systems to regulate their operational temperature. Most transformers use mineral oil or synthetic esters to cool and insulate the components in high-power applications.
- Insulation
High-quality insulation materials, such as paper, pressboard, or oil, are used between windings and core to prevent short circuits and to maintain system safety, even under high voltage and temperature conditions.
- Tap Changers
Tap changers allow for small adjustments in the transformer’s output voltage to accommodate fluctuations in grid conditions or wind power generation. On-load or off-load tap changers are selectively used based on the operational requirements.
- Buchholz Relay and Protection Systems
Modern wind farm transformers utilize advanced protection mechanisms like a Buchholz relay, temperature sensors, and surge arresters. These systems help detect faults, overheating, or gas accumulation, ensuring equipment safety and operational reliability.
- Tank and Housing
The transformer tank encloses all critical components and is designed to withstand environmental conditions such as moisture, dust, and temperature variance. The housing must comply with relevant standards for durability and protection.
These components work together to ensure that wind farm transformers operate efficiently, delivering stable and reliable power to the grid while mitigating the challenges of variable wind energy generation.
Step-by-Step: How a Wind Turbine Transformer Functions
- Voltage Step-Up
Wind turbines generate electricity at relatively low voltages, typically ranging from 400 V to 690 V. The wind turbine transformer steps up this voltage to higher levels (e.g., 33 kV or 66 kV) suitable for transmission over medium-voltage networks, reducing losses during power transport.
- Energy Flow Management
The transformer moderates fluctuations in power output caused by variable wind speeds. It aligns the turbine’s generated power with grid requirements, ensuring a stable transfer of energy to the electrical grid by maintaining appropriate voltage and frequency levels.
- Cooling and Heat Dissipation
Transformers experience significant heat buildup during operation. Efficient cooling mechanisms, such as oil-immersed systems or forced air cooling, ensure the transformer can handle high energy loads while maintaining thermal stability and extending its lifespan.
- Fault Detection and Protection
Integrated protection systems like Buchholz relays, temperature monitors, and pressure relief devices detect internal faults, overheating, or gas build-up early. These safeguards help prevent operational failures or potential damage to key components.
- Grid Integration
The transformed energy is fed into the grid or a substation, where further voltage adjustments are made for large-scale distribution. This step ensures compatibility and efficient electricity delivery to end-users or connected systems.
By following these processes, wind turbine transformers play an essential role in transforming and stabilizing the variable energy produced by wind turbines, enabling reliable and efficient integration into the larger energy grid.
Common Transformer Types Used in Wind Power Plants
The application and function of transformers in the wind energy generation process used within wind power plants must be examined in detail. First of all, voltage Step-Up Transformers are directly installed at the bottom of the wind turbines. These transformers adjust the voltage levels from turbine generators to that of considerable magnitude for transmission to the principal substation.

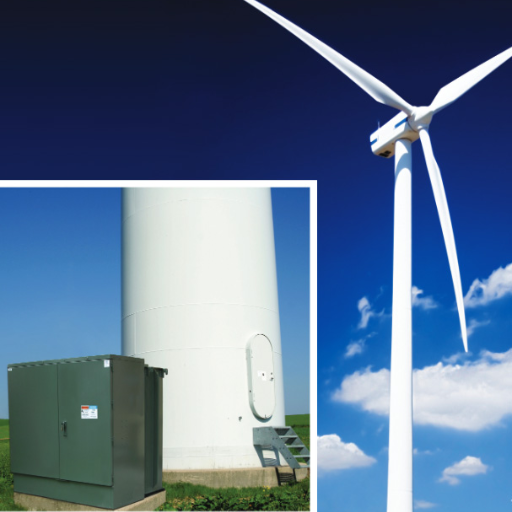

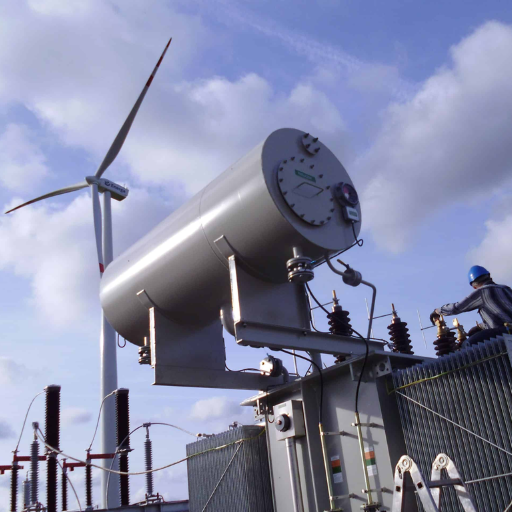

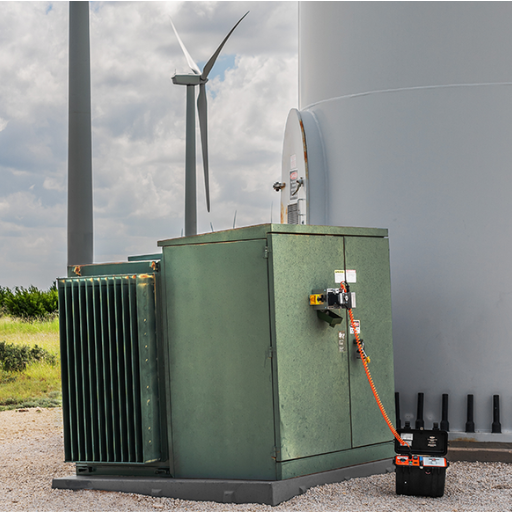

Next, wind farms would not be complete without the installation of Pad-Mounted Transformers, which are found near most individual wind turbines. They grab attention due to their robust construction, which is also meant to endure the elements. Their small stature and heightened effectiveness have made them ubiquitous in industry standard among residential and commercial grade wind power systems.
Finally, after substations consolidate the power from several turbines, Substation Transformers are used to increase the voltage to that acceptable by the primary grid. The transformers guarantee interconnection and energy access; hence there is broad region utilization of the system.
Wind power plants use different types of transformers that enhance power plants’ reliability, efficiency, and smooth integration activities into the existing grid system or energy delivery network.
What Are the Challenges in Offshore Wind Farms?
Despite their possible high energy returns, offshore wind farms come with a great degree of difficulty. One of the most troubling issues is the intricacy of construction and servicing in an ocean setting, which is usually harsh. This incorporates challenges in foundation installation, turbine mooring to the sea floor, and maintaining the structures amid the powerful oceanic currents and winds. In addition, the expenses related to wind farm construction and operating maintenance offshore are greatly more elevated than when it is done onshore. This is because specialized vessels, electric equipment, and advanced technological devices for marine operations are very costly. There is also the challenge of transmission, whereby the electricity produced offshore needs to be transferred to the onshore grid using subsea cables. These cables are very costly and prone to damage. Other impacts such as the effects of wind farms on marine life and international shipping lanes will also need to be considered in detail. All of these issues need to be resolved for cost-effective and maximum offshore wind energy production.
Unique Conditions of Wind in Offshore Locations
The wind patterns in offshore locations exhibit unique characteristics that must be taken into account for value creation and optimum operation of wind farms. Offshore winds are generally more consistent and stronger than onshore winds, as there are no mountains and buildings that would create turbulence. These conditions create problems; on the one hand, the increase in winds causes more mechanical stress on the turbines, and on the other, the turbines need to be robustly engineered to guarantee operational reliability. Furthermore, offshore wind speed is quite constant, but inshore winds are more variable depending on different seasonal and regional meteorological conditions.
One other major component is wind shear, which is the degree of change in wind speed, and direction with an increase in height. Offshore, wind shear is lower compared to inshore regions which allows turbines to work more flexibly at varying heights. Having noted some advantages, harsh conditions in offshore wind environments pose extreme risks down the line; high winds during storms can greatly deteriorate the structural integrity and overall performance of the turbines. In this case, designing such systems to withstand damage is critical to guarantee energy continuity. These refreshing dynamics of the wind must be understood for better positioning of the turbines for energy collection and minimal downtime in offshore wind farms.
Technical Challenges of Offshore Wind Turbine Transformers
Like any machinery, Offshore Wind Turbine Remote transformers face certain restrictions and problems that differ greatly from onshore systems. One primary concern is exposure to extreme saline conditions. One of the most significant issues is the corrosion of materials, which results from incredibly saline operating environments. Such conditions in turn require the deployment of high-quality protective coatings and materials that can resist corrosion and provide armor-like protection. Water ingress poses another issue. Moisture can defeat a transformer’s insulation and efficiency making the sealing mechanisms stringent as well.
Maintaining offshore transformers proves to be another significant problem. Along with highly remote locations, tight design space requires high operational cooling efficiency to make sure heat from operations is dissipated. To combat overheating, transformers remotely deployed offshore often shoehorn in several cooling mechanisms such as oil or forced air cooling while encased in tight spaces.
Furthermore, offshore wind turbine remote transformers have to face immense amounts of mechanical stress that result from vibration due to the offshore turbines along with sea movement. These oscillator forces acting over time can result in fatigue and auxetic wear on transformer components. This is why advanced engineering solutions and materials need to be devised to tackle these issues and improve longevity.
In conclusion maintenance and accessibility present major challenges. The offshore areas can be difficult to access, especially when the weather is bad. This reduces the frequency of inspections that can be carried out and makes it essential to incorporate systems that extend the service intervals and advanced monitoring systems such as condition-based monitoring. This system would eventually predict and prevent these issues from occurring. In addressing these concerns, offshore wind turbine transformers can assist in the growth of renewable energy and ensure long-term sustained operational health.
Solutions to Transformer Failure in Offshore Wind
Addressing transformer failure in offshore wind systems requires a multifaceted approach integrating advanced materials, design optimizations, continuous monitoring, and strategic maintenance improvements. Key solutions include:
- Use of High-Performance Materials
Employing thermally upgraded insulation, corrosion-resistant coatings, and vibration-dampening components helps transformers withstand harsh offshore conditions. Advanced materials combat moisture ingress, salt corrosion, and mechanical fatigue, extending operational lifespans.
- Enhanced Design Standards
Optimizing transformer designs to distribute thermal and mechanical stresses more evenly reduces wear. Additionally, compact modular designs decrease spatial requirements and simplify installation and maintenance operations.
- Implementation of Advanced Monitoring Systems
Integrating systems like online dissolved gas analysis (DGA) and partial discharge monitoring facilitates real-time condition assessment. These tools enable operators to detect anomalies early, allowing predictive maintenance and preventing critical failures.
- Proactive Maintenance Strategies
Leveraging predictive and condition-based maintenance (CBM) models minimizes unscheduled downtime. These strategies rely on data analytics to optimize service intervals, reducing the need for frequent site visits in difficult offshore conditions.
- Improved Cooling Systems
Incorporating forced air or liquid cooling technologies into transformer designs enhances thermal management, preventing overheating during high-demand operations and further mitigating failure risks.
By combining these solutions, offshore wind operations can overcome the technical challenges posed by transformer failures, ensuring resilience and efficiency to meet the growing demand for renewable energy.
How Do Onshore and Offshore Wind Transformers Differ?
The key distinctions between onshore and offshore wind transformers lie in their construction, performance in different environments, and operational processes. Offshore transformers are developed with robust enclosures, advanced cooling systems, and corrosion-resistant materials that withstand severe marine environments. Salt water spray, high humidity, and rising temperature pose a threat to many systems, but offshore transformers are built to endure all of that. Furthermore, since the electricity produced is transferred over long distances to the mainland grids, offshore substations are engineered with higher voltage levels. Not like onshore transformers, onshore units function within straightforward environments, giving them a more simple design. These structural and operational differences ensure optimal performance tailored to the specific challenges of each setting.
Comparative Analysis of Transformer Design
Like with any renewable source of energy, wind has its challenges, particularly when it comes to offshore and onshore sites, due to environmental restrictions. One such challenge lies within the transformers which require enormous amounts of maintenance work concerning the custom structures. The IP86 offshore standard is one of the transformers designed standards. The offshore transformer sits in a deep sealed cage and is coated in anti-corrosion oil while having customized water or oil-based coolers installed along with heavy-grade cooling too to handle rough offshore wind conditions. The set voltage for offshore wind farms usually goes above 220 kV to aid long-distance transmission of electricity.
Onshore transformers are placed land-side, and due to the greater control over the environment comes a sharper increase in voltage setting aircraft setting rate. The voltages go anywhere below the 132 kV mark. As for offshore, more straightforward air and oil cameager operate efficiently due to lack of maintenance and severe environmental conditions.
While offshore transformers aim to cover protection against the marine environment, onshore units focus on value and dependability concerning the lower US. Both designs are fundamentally important for supplying infrastructure, and renewable energy for it along with a non-protected setting such as the open sea.
Cost Implications in Onshore Wind and Offshore Wind Farms
Costs related to infrastructure, installation, and upkeep for both onshore and offshore wind farms tell a very distinct story. The onshore wind farms appear to be far more affordable to operate, ranging between $1,200- $1,700 per KW. This is mainly because of the accessibility provided for both construction and upkeep activities. Furthermore, land-based turbines come with a less intricate distribution system, translating to lower spending over operational costs in the duration of time.
The offshore wind farms, however, come at the highest costs, estimating anywhere between $3,000 to $5,000 per KW. This cost is associated with the vast amount of specialized equipment required like subsea cables and reinforced foundations that survive harsh marine conditions. This coupled with the transportation and installation at sea which requires advanced vessels drives the expenses even further. Servicing while maintenance offshore is always going to be high, as getting specialized equipment and teams to operate in the more difficult environments is a challenge.
Even though offshore wind farms incur higher expenses, they do have certain benefits compared to onshore facilities due to the greater and more consistent wind speeds available at sea, which increase the amount of energy that can be generated. However, the economic soundness of offshore ventures is dependent upon government grants, tax breaks, and new technologies that are developed to lower capital and operational costs. Both concepts are crucial for the international renewable energy industry, with onshore focusing on economic cases and offshore concentrating in areas with high wind energy potential, which maximizes energy production.
Why Is the Reliability of Wind Farm Transformers Crucial?
The wind farm transformer’s dependability is crucial because it plays a vital role in changing and storing the electricity produced by the wind turbines in the power network. Any breakdown in these transformers leads to tremendous downtime and energy losses, which affects the efficiency and finances. For offshore wind farms where maintenance is intricately difficult and costly, ensuring transformer dependability reduces the need for servicing. Reliable transformers are also important for maintaining the stability of the grid and keeping the systems responsive.
The Impact of Transformer Failure on Wind Energy Production
The inadequacy of transformer function within the wind power systems presents severe challenges as far as the reliability and effectiveness of energy generation activities are concerned. The electric energy generated by the wind turbines is converted using transformers into higher voltage levels which can be transmitted to the grid. Any transformer failure due to overheating or insulation breakdown disrupts this wind power and the system instantly goes into an energy loss mode leading to high operational downtimes. All transformer failure activities cause severe energy losses and these transformers are overheating, malfunctioning, or experiencing high levels of mechanical stress.
At the same time, the adverse effects of such failures go beyond the loss of energy. Apart from incurring excessive costs as a result of the repair works, there is a huge amount of indirect costs that need to be served that are included in the idle production and fines for failing to deliver contracted energy. This will add to the number of regions where the grid reliability will get compromised and not just extend it where there is ditched reliance on wind power. As a preventative approach, maintenance activities at regular intervals along with cooling, monitoring technologies, and DGA need to be employed to improve the chances of not encountering transformer failure and ensure that wind energy systems are reliable. This would serve to prevent such issues from turning into something grave when a proactive approach is taken by the operators.
Maintenance Practices for Reliable Power Systems
Effective maintenance practices are critical to ensuring the reliability and operational efficiency of power systems. A comprehensive maintenance strategy should include both preventive and predictive maintenance procedures to identify and mitigate potential issues before they lead to significant failures. Key components of effective maintenance practices include:
- Regular Inspections and Testing
Conducting regular inspections of power systems, including transformers, circuit breakers, and switchgear, helps detect early signs of wear or malfunction. Tests such as insulation resistance testing, infrared thermography, and partial discharge analysis are essential for diagnosing equipment health.
- Condition-Based Monitoring (CBM)
CBM leverages real-time data from sensors and monitoring systems to assess the performance of critical components. This approach enables operators to predict equipment failures and schedule maintenance activities based on actual conditions rather than fixed intervals.
- Systematic Cleaning and Lubrication
Accumulated dust, debris, and moisture can degrade electrical equipment performance. Regular cleaning and proper lubrication of mechanical parts are crucial to prevent overheating, corrosion, and mechanical wear.
- Updating Protection Systems
Periodically testing and calibrating protection relays and control systems ensure that they respond accurately during faults. Upgrades to modern protective devices can also enhance system reliability.
- Documentation and Training
Maintaining detailed maintenance logs and records provides historical data that aids in decision-making. Additionally, ensuring that maintenance personnel are adequately trained reduces the likelihood of human errors and reinforces safety protocols.
By systematically implementing these practices, organizations can minimize downtime, extend the lifespan of equipment, and achieve higher levels of operational resilience in their power systems.
