In electrical power systems, transformers assume a crucial function by permitting the efficient transmission and distribution of electrical energy through the stepping up or down of voltage levels. Of all the types of transformers, the 167 kVA transformer stands out as one of the most commonly used in both the industrial and commercial sectors, as it can support large power loads with very high efficiency and reliability. In this article, we will delve into the details of the 167 kVA transformer which encompasses its design and technical specifications, operational principles, key applications, and maintenance considerations. This guide is intended for engineers, facility managers, or anyone wishing to deepen their understanding of transformer technologies, and it serves to empower the reader with the knowledge to help evaluate and effectively utilize the piece of electrical equipment.
What is a 167 kVA Transformer?

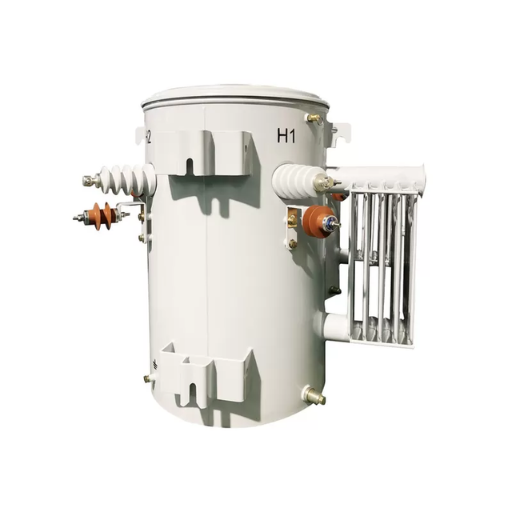

A 167 kVA transformer is an electrical transformer in which the device rating is 167 kilovolt-amperes (kVA). This transformer can also be used to either increase or decrease the voltage levels and ensure effective energy transfer between circuits. Often utilized in medium to large-scale industries, businesses, and utility services, this type of transformer helps manage significant power loads. The sturdy construction ensures superior performance, minimal losses, and dependable service which is crucial in an electrical distribution system.
Understanding the 167 kVA Rating
A 167 kVA transformer has an apparent power rating of 167 kVA, meaning that the transformer can handle electric loads of up to 167,000 volt-amperes under ideal conditions. This rating also reflects the transformer’s capability of managing voltage and current levels, thereby limiting energy losses while maintaining efficiency in an electrical distribution system. The rating of 167 kVA serves other applications, too; its use in medium-scale industrial plants, commercial buildings, and utility grids is made possible by this very standardization. Like other kVA ratings, this voltage rating also incorporates active power, calculated in kilowatts (kW), and reactive power. Transformers clearly can manage both active and reactive power, demonstrating the scope of power they handle.
How Does a Single-Phase Transformer Work?
It uses a magnetic core made of iron which acts like an inductor. An electrical transformer is able to boost or reduce the level of electrical voltages in its circuits within the alternate current range due to AC’s ever changing nature. There are two main windings within the transformer such as primary and secondary winding.
Single-phase transformers are extremely reliable, efficient, and simple in their design and thus enable people to use them in residential electric distribution or industrial settings on a small scale as well as in various electronic devices. Electric transformers do change the level of two voltages by a definable magnitude based on the turn ratio of the primary to the secondary coil. When the amount of turns in the secondary winding is greater than that in the primary winding, the electric transformer boosts the voltage and reduces it when the primary turning amount exceeds the secondary.
Key Specifications of a 167 kVA Transformer
A 167 kVA transformer is designed to deliver reliable performance in residential, commercial, or light industrial applications. Its key specifications are outlined below:
- Power Rating
The transformer has a rated capacity of 167 kVA, which makes it suitable for moderate power distribution needs.
- Voltage Ratings
Typically, a 167 kVA transformer provides a primary voltage of 7200/12470 volts and a secondary voltage of 120/240 volts, meeting standard utility and residential power requirements.
- Phase and Frequency
This is a single-phase transformer operating at a frequency of 60 Hz, ensuring compatibility with North American power grid standards.
- Efficiency and Losses
Transformers in this range are designed for high efficiency with low core and copper losses, maintaining optimal power transfer while minimizing energy waste.
- Cooling System
Most models employ oil-immersed, natural air cooling (ONAN), enabling effective thermal regulation and extended operational lifespan.
- Insulation Level
Constructed with high-grade insulation materials capable of withstanding high dielectric stresses, these transformers typically have a B or F insulation rating, which enhances safety and durability.
- Impedance Percentage
A standard impedance of approximately 2-5% results in controlled short-circuit currents and protects downstream equipment.
- Construction Material
The core is commonly made from laminated silicon steel to minimize hysteresis losses, while the enclosure is designed for weather resistance in outdoor installations.
- Standards
Manufacturers ensure compliance with industry standards such as ANSI, IEEE, and NEMA for performance, safety, and reliability.
By combining advanced design techniques with robust materials, the 167 kVA transformer is a critical asset for managing efficient energy distribution within its application scope.
How to Choose the Right 167 kVA Transformer?
- Load Requirements
Accurately determine the total load (in kVA) the transformer will support, factoring in peak demand and potential future expansions to ensure the transformer is neither undersized nor oversized.
- Voltage Specifications
Verify that the transformer’s primary and secondary voltage ratings match the supply and load requirements to ensure compatibility with your electrical system during operation.
- Installation Environment
Assess whether the transformer will be installed indoors or outdoors. Choose models with enclosures rated for environmental conditions, such as NEMA 3R for outdoor applications.
- Thermal Performance
Review the transformer’s insulation class and temperature rise ratings to ensure sufficient thermal handling capability under continuous operation.
- Efficiency and Losses
Evaluate the transformer’s efficiency and core/coil losses, as these directly impact operational costs over its lifespan.
- Compliance and Certification
Ensure the transformer complies with relevant industry standards (e.g., ANSI, IEEE, NEMA) for safety, reliability, and regulatory acceptance.
- Budget and Lifecycle Costs
Consider both the upfront purchase cost and long-term maintenance costs, including energy efficiency and cooling requirements, to identify the most cost-effective solution.
By systematically addressing each of these factors, you can select a 167 kVA transformer optimized for your specific operational needs while ensuring safety, reliability, and compliance.
Evaluating Power Rating and Voltage
When choosing a transformer, its power value has to correspond to the maximum load value of the system which is usually measured in kVA. To avoid unreasonable thermal stress while enhancing reliability and longevity operationally, the chosen power level to be used should be higher than the expected maximum peak load. On one more note, the voltage requirements are important. The primary and the secondary voltage ratings must be designed by the system input and output levels. Make sure both sides of the transformer meet the voltage levels, and determine if the system needs delta or wye arrangement configurations of the transformer if it is a three-phase system. Power rating and voltage level considerations in an appropriate transformer are balanced to achieve overloading and inefficient operation over voltage mismatches or underperformance with failure to meet regulatory requirements.
Considering Single-Phase vs. Three-Phase Transformers
Choosing between single-phase and three-phase transformers requires a critical evaluation of the application needs and boundaries of the system. Single-phase transformers are used in lesser-powered tasks such as a home or a small business. They are elementary in design and economical for systems that have a low power requirement. Conversely, three-phase transformers are primarily used in industries and high-power applications as they can effectively manage larger loads. They deliver power at a higher level of precision with lower levels of vibration, less conductor materials, and greater efficacy in three-phase power systems.
With single-phase transformers, the voltage is supplied through single alternating current cycle, thus making them appropriate for easier systems. However, with three-phase transformers, the power is supplied steadily through three sets of alternated current pulse making the system more dependable with optimum load balance which makes these kinds of systems more advantageous for larger operations like factories or data centers.
The foremost factors include the compatibility with the system, the load demand, and the cost. Single – phase systems are relatively cheaper for purchase but have a low power supply capability. In contrast, three-phase systems require more of an investment at the start, but offer dependable and efficient energy usage over time in high powered situations. Cost, energy consumption, and overall system life savings are achieved when the transformer’s type is aligned with the operational prerequisites.
Comparing Pad-Mounted Transformers and Pole-Mounted Options
Pad-mounted transformers, along with pole-mounted transformers, cater to specific sets of requirements revolving around their design, installation, and usage. Looking further, pad-mounted transformers are enclosure-based, static units placed within metal enclosures. As a result, they are perfectly suited for the suburbs, malls, and even industries where safety and aesthetics matter. Their design allows them to handle higher power loads and greater resistance to weather conditions thanks to their solid enclosures. Nevertheless, they require more ground space and entail higher installation costs compared to pole-mounted options.
On the contrary, pole-mounted transformers are installed on utility poles and thus, are primarily set in rural regions or areas with a lower population density. Because of their small size and added cost benefit, they become easy to install in locations with restricted ground space. While these structures serve the power delivery goals of small applications quite effectively, their susceptibility to weather related destruction is a downside. The selection between these options relies on factors like power demand, the weather, installation space, and any maintenance considerations.
Where to Purchase a 167 kVA Single Phase Pole-Mounted Transformer?
If you want to buy a 167 kVA single-phase pole-mounted transformer, there are factors you must consider before making a purchase. Well-known suppliers of electrical tools and equipment, including local distributors and national chain stores, usually stock these transformers. General Electric, ABB, and Siemens are other brands known to produce quality units. At the same time, online stores that deal with wholesale industrial tools, such as Grainger, HD Supply, or the business section of eBay, may also be worth a look. For big contracts, dealing directly with manufacturers, or their authorized representatives provides a good sourcing channel along with guaranteed technical support. Be sure to check specifications, certificates, and warranty information before purchase.
Finding Reliable Transformer Manufacturers
Reputable transformer manufacturers can be sought through careful consideration of their reputation, product offerings, and adherence to industry norms. Reviewing customer feedback, credentials, and technical capabilities is a good start. ABB, Siemens, and Schneider Electric have reputable standing by providing high-quality transformers alongside dependable technical support. Also, Hitachi Energy and Eaton are well known around the globe for their innovation and novel approaches to transformer manufacturing. Check whether the manufacturer has the required range of products like the 167 KVA single phase pole mounted transformer and if they have the necessary certifications like ISO, ANSI, or IEEE. Look into long-standing customer contracts and maintenance services offered by the manufacturer for additional confidence in their reliability.
Exploring Daelim and Other Brands
Daelim has established itself as a reliable manufacturer, specializing in customizable transformers that adhere to IEEE, IEC, and ANSI standards. Their product lineup includes energy-efficient models such as the 167 KVA single-phase pole-mounted transformer, backed by comprehensive testing and quality assurance protocols.
Similarly, other reputable brands demonstrate strengths in specific areas. ABB is recognized for innovation in high-voltage transformers, delivering robust and scalable solutions tailored for industrial use. Siemens focuses on environmentally sustainable designs, particularly their ECO-friendly transformers which reduce carbon footprints. Schneider Electric emphasizes intelligent energy solutions, offering transformers integrated with IoT-enabled technologies for real-time monitoring.
Key considerations when comparing these brands involve not only the range of certified products but also post-sale support. Daelim and its peers often provide maintenance services, extended warranties, and tailored design options, allowing buyers to align equipment with project requirements. An in-depth review of each manufacturer’s product specifications, certifications, and customer service will ensure an informed investment.
Understanding Pole-Mounted Transformer Price Factors
Before buying, several factors that affect the price of pole-mounted transformers need to be evaluated. Some of the key aspects are power ratings in kVA or MVA, material type, efficiency, and even the location of the manufacturing firm. Generally, copper wound transformers are more expensive than their aluminum counterparts, but the materials used offer better efficiency and life, which makes it favorable in the long run. Insulation material is another factor that affects the performance, cost, and efficiency of the transformer. Also, meeting compliance requirements for IEEE, ANSI, IEC, and others typically carry higher costs because of the extensive testing required.
Apart from the particulars of the item, the region is also a significant price-influencing factor. A region with good locally-sourced transportation and easy access to factories will incur lower costs. Furthermore, any additional needs such as particular voltage levels or specialized placement during installation will raise the price as well. Lastly, inflation creates higher demand in the market which along with the price of raw materials and production of goods entail more complex multifaceted costs. Conducting a thorough detail and expense comparison analysis before making a purchase is essential to ensure a good return on investment.
What are the Common Applications of 167 kVA Transformers?
167 kVA transformers are very popular in the commercial and industrial areas. They are used frequently in power systems to reduce the voltage of the power taken from the transmission lines to the level that can be consumed by the end users. These transformers serve as a prerequisite for operating tools and appliances in factories, processing plants, and other industries where a constant and dependable power supply is required. Furthermore, these devices were also widely supplied in as well for proper power supply to the lights, air conditioners, and other electrical gadgets in the office buildings. Their versatility serves many purposes across sectors making them a great deal.
Role in Power Distribution Systems
The 167 kVA transformers have a vital place in modern power distribution systems and serve as important components for the transmission and delivery of electric energy. These transformers step down high-voltage electric energy from the transmission lines to an operational and consumer-friendly voltage level while minimizing energy loss during distribution. Their applications range from commercial buildings to industrial facilities, and even in renewable energy systems, where electricity is reliably supplied and adequately controlled. 167 kVA transformers greatly enhance power quality and energy stability by reducing voltage fluctuations and supporting peak load demands. These transformers are expertly built to be efficient and withstand heavy use, which makes them unmatched in enabling proper and consistent power distribution.
Use in Single-Phase Pole-Mounted Transformer Installations
Of particular importance to the electrical distribution in domestic and rural settings, single-phase pole-mounted transformers are fundamentally important to electric power distribution in residential houses and small-scale industries. These specific transformers referred to as 167 kVA are used to cater to the mounted single phase pole transformer with high voltage electricity, primarily from equipment used in electric power distribution, step down fed in high voltage electric overhead lines up onto useable single 167 kVA voltage 120/240V. The transformer is designed for transferring energy from high voltage to low voltage and withstands outdoor environments as its rugged structure is compact yet sturdy. Fitted with insulation alongside weatherproofing equipment and set to endure extreme conditions of temperature, wind, and rain. Single-phase pole-mounted transformers are also inexpensive and easy to install, with little servicing needed, so they are an economical solution for power distribution systems.
How to Maintain a 167 kVA Transformer?
- Regular Visual Inspections
Inspect the transformer externally for signs of physical damage, corrosion, or oil leaks. Look for any abnormalities in the bushings, gaskets, or mounting structure to ensure structural integrity.
- Oil Level and Quality Check
Monitor the transformer’s oil level through the gauge and test the quality of the insulating oil regularly. Dielectric strength tests will help ensure the oil’s insulating performance is uncompromised.
- Load Monitoring
Continuously monitor the operational load to avoid overloading. Overloading can lead to excessive heating and degradation of internal components over time.
- Electrical Testing
Perform routine tests such as insulation resistance, polarity, and winding resistance tests to verify the transformer’s electrical characteristics and detect potential faults early.
- Cleaning and Ventilation
Keep the exterior clean to facilitate efficient cooling. Verify the vent systems or cooling fins are clear of obstructions to maintain proper heat dissipation.
- Grounding and Connections
Ensure the grounding system is secure and functioning correctly. Tighten all electrical connections to avoid sparking or overheating, which could lead to failure.
- Environmental Protection
Maintain weatherproofing components and ensure that the transformer is adequately shielded against heavy rainfall, high wind speeds, or extreme temperatures.
Regular maintenance of a 167 kVA transformer not only ensures efficient energy transfer but also extends its operational lifespan and reduces the risk of costly downtime or failures.
Regular Transformer Inspection and Reliability Checks
Regular inspection and maintenance of transformers are crucial to ensure their reliability, efficiency, and longevity. Key steps in the inspection process include:
- Visual Inspection
Conduct a thorough visual check for visible signs of issues such as oil leaks, corrosion, or degradation in the external components, including bushings and insulators. Any abnormalities should be documented for further evaluation.
- Oil Analysis
Transformer oil plays a vital role in insulation and cooling. Performing Dissolved Gas Analysis (DGA) and checking the oil’s dielectric strength, moisture content, and acidity levels can help detect potential faults, such as overheating or insulation breakdown.
- Thermal Scanning
Infrared thermography is used to identify abnormal temperature rises or hotspots within the transformer. Hotspots may highlight improper connections or overloading, which can lead to critical failures.
- Electrical Testing
Conduct tests such as insulation resistance, power factor, and winding resistance measurements to assess the transformer’s overall electrical integrity. These tests help detect issues like winding degradation or ground faults.
- Load Monitoring
Monitoring the load and ensuring it remains within design limits reduces the chances of thermal overload or mechanical stress on the unit. Reviewing historical load trends can also help predict potential failures.
- Periodic Maintenance
Routine tasks such as tightening loose connections, cleaning insulators, and replacing aging parts minimize the risk of sudden failures. Adopting a condition-based maintenance program can further optimize the transformer’s performance.
- Record-Keeping and Data Analysis
Maintaining detailed logs of inspections, testing results, and repairs provides valuable data for trend analysis and helps in proactive decision-making.
Implementing these checks in a systematic and timely manner ensures that transformers operate efficiently while mitigating the risks of unplanned downtime or catastrophic failures.
Dealing with High Voltage and Low Voltage Issues
Dealing with high voltage and low voltage issues requires precise understanding and adherence to safety protocols. High voltage typically refers to electrical energy operating at levels above 1,000 volts for alternating current (AC) or 1,500 volts for direct current (DC). Conversely, low voltage denotes levels below these thresholds.
To resolve high voltage problems, ensure equipment is rated correctly for the voltage supplied while implementing surge protection devices to safeguard against spikes. Transformer adjustments may also help maintain safe delivery levels. For low voltage issues, check for potential causes such as excessive load, faulty wiring, or transformer inefficiencies. Troubleshooting commonly includes inspecting connections, distributing electrical loads evenly, and utilizing voltage regulators to stabilize the supply.
It is critical to follow insulation guidelines and use personal protective equipment (PPE) when working with high or low voltage to prevent electrical hazards. Proactive maintenance, including routine system audits, also enhances operational reliability and prevents future issues.
References
Frequently Asked Questions (FAQ)
Q: What is a 167 kVA transformer?
A: A 167 kVA transformer is a type of power transformer used in electrical distribution systems. It is designed to step down or step up voltage levels to meet the needs of various electrical equipment. This transformer is highly efficient and commonly used in commercial and industrial applications.
Q: What are the features of a single-phase transformer?
A: A single-phase transformer features an iron core, and primary and secondary windings, and is often filled with mineral oil for cooling and insulation. It is commonly used in residential and light commercial applications due to its cost-effective and efficient design.
Q: How does a 167 kVA pole-mounted transformer function?
A: A 167 kVA pole-mounted transformer functions by converting high voltage to a lower voltage suitable for use by consumers. Mounted on poles, these transformers distribute electricity efficiently across a wide area, supporting local electrical grids.
Q: What are the advantages of using pole-mounted transformers?
A: Pole-mounted transformers are cost-effective, easy to install, and require minimal space. They are ideal for areas with limited ground space and can efficiently distribute electricity to both rural and urban settings.
Q: How do you determine the pole-mounted transformer price?
A: The price of a pole-mounted transformer depends on various factors, including capacity, materials used, brand, and additional features such as IEEE or IEC standards compliance. For specific pricing, one should contact Daelim transformer’s sales team.
Q: What materials are used in the construction of 167 kVA transformers?
A: 167 kVA transformers are typically constructed using silicon steel for the core and copper or aluminum for the windings. The transformer may also include bushing insulators and lifting lugs for mounting.
Q: How do you perform acceptance testing for transformers?
A: Acceptance testing for transformers involves a series of inspections and tests to ensure they meet specified standards, such as IEEE C57. Tests include visual inspections, insulation resistance tests, and verifying the transformer’s electrical characteristics.
Q: What is the role of the iron core in a single-phase transformer?
A: The iron core in a single-phase transformer serves to concentrate the magnetic field, which enhances the transformer’s efficiency by reducing energy losses. It helps in transferring energy between the primary and secondary windings effectively.
Q: How does the installation process of 167 kVA pole-mounted transformers work?
A: The installation process of 167 kVA pole-mounted transformers involves securing the transformer to a pole, connecting the primary and secondary windings to the power lines, and ensuring proper grounding and insulation. It requires careful planning and adherence to safety protocols.
Q: What is the significance of high efficiency in distribution transformers?
A: High efficiency in distribution transformers, such as the 167 kVA model, ensures minimal energy losses during voltage conversion, leading to lower operational costs and improved reliability of the electrical system. This makes them an economical choice for power distribution projects.
