Distribution transformers are an essential component of modern electrical systems, serving as the critical link between high-voltage power grids and the electrical devices we rely on daily. These transformers play a pivotal role by safely stepping down high-voltage electricity to usable levels, ensuring that homes, businesses, and industries receive the power they need efficiently and reliably.
This blog post will explore the fundamental purpose and functionality of distribution transformers, their key components, and their importance in electrical infrastructure. Additionally, we’ll examine the various types of distribution transformers, their applications, and how advancements in technology are shaping their efficiency and sustainability. By the end of this article, readers will have a comprehensive understanding of how these indispensable devices operate and their impact on the delivery of power across diverse settings.
What is a Distribution Transformer and How Does it Work?
A distribution transformer is a vital device in electrical power systems that steps down high-voltage electricity from transmission lines to a lower voltage suitable for end-users, such as homes, businesses, and industries. Operating on the principle of electromagnetic induction, these transformers transfer electrical energy between circuits through a magnetic core and windings. They ensure the safe and efficient delivery of electricity by adjusting voltage levels to meet local consumption needs, minimizing losses during transmission, and maintaining steady power supply within distribution networks.
Definition and Purpose of Distribution Transformers
Distribution transformers are a critical component in the electrical distribution system, designed to step down high voltage electricity from the transmission network to a lower voltage suitable for end-users. Their primary function is to enable the safe and efficient transmission of electrical energy by adapting voltage levels to meet the requirements of consumers in residential, commercial, and industrial sectors. These transformers operate continuously, ensuring a reliable flow of electricity while reducing power losses during distribution. Their robust design and energy efficiency play a vital role in maintaining the stability and sustainability of modern power systems.
Primary and Secondary Windings: The Heart of Voltage Transformation
At the core of any transformer are the primary and secondary windings, which are essential for altering voltage levels to match the system’s requirements. The primary winding is connected to the input power source, where it creates a magnetic field as current flows through it. This magnetic field induces voltage in the secondary winding, which is linked to the output load. The difference in the number of turns between the primary and secondary windings determines whether the transformer will step up or step down the voltage. Efficient insulation and careful design of these windings are crucial for ensuring safety, minimizing energy losses, and maintaining optimal performance within electrical systems.
How Distribution Transformers Manage Power Distribution
Distribution transformers play a pivotal role in managing power distribution by stepping down high transmission voltages to safer, usable levels for residential, commercial, and industrial purposes. Positioned near end-users, these transformers ensure that electricity is delivered efficiently and reliably by minimizing voltage drops over shorter distances. They operate continuously, maintaining a stable voltage output despite fluctuating loads, making them indispensable for daily power delivery. Advanced designs also incorporate energy-efficient features to reduce energy losses, such as amorphous metal cores and improved cooling systems, which contribute to overall grid sustainability.
What Are the Different Types of Distribution Transformers?
There are several types of distribution transformers, each designed for specific applications and requirements. The most common types include:
Pole-Mounted Transformers: Installed on utility poles, these transformers are typically used to supply power to residential areas and small businesses. They are compact, reliable, and ideal for overhead distribution systems.
Pad-Mounted Transformers: These transformers are installed on the ground and enclosed in secure housings, making them suitable for underground distribution networks in urban and suburban areas.

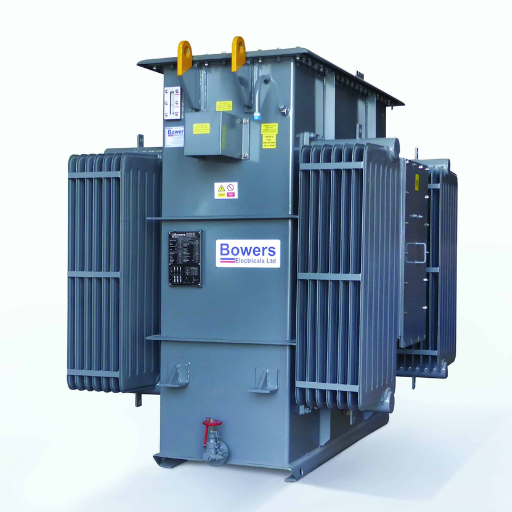

Oil-Filled Transformers: Utilizing oil as a cooling and insulating medium, these transformers are highly efficient and commonly used across various distribution systems.
Dry-Type Transformers: Instead of oil, these transformers use air or other non-liquid insulating materials, making them safer for indoor use or environments sensitive to fire risks.
By selecting the appropriate type, utilities can ensure efficient and reliable electricity distribution based on the system’s operational conditions and environmental constraints.
Single-Phase vs. Three-Phase Transformers
The key difference between single-phase and three-phase transformers lies in their design, application, and power delivery capabilities:
Single-Phase Transformers: These are simpler and smaller, designed to supply power to residential and light commercial applications. They operate on a single alternating voltage and are typically used in low-power scenarios, such as powering household appliances or lighting systems. Single-phase systems are cost-effective for shorter distances and lower energy demands.
Three-Phase Transformers: These transformers are more complex and efficient, suited for industrial or large-scale commercial applications. They utilize three alternating voltages, providing a continuous and balanced power supply. This makes them ideal for powering heavy machinery, manufacturing equipment, and long-distance power transmission, as they reduce energy losses and improve efficiency.
Both types of transformers play vital roles in electricity distribution, with the choice depending on the specific energy needs and the scale of the application.
Pole-Mounted vs. Pad-Mounted Transformers
Pole-mounted transformers and pad-mounted transformers serve as key components in electricity distribution systems, but they are designed for different environments and applications.
Pole-Mounted Transformers: These are installed atop utility poles and are most commonly used in rural or suburban areas. Their elevated position helps to minimize exposure to tampering and is cost-effective for distributing power over long distances where space constraints are minimal. Typically, these transformers handle lower power loads and are suited for smaller-scale applications, like residential neighborhoods or lightly populated regions.
Pad-Mounted Transformers: These are ground-based units enclosed in secure, weather-resistant, tamper-proof cases, making them ideal for urban and commercial areas. They offer higher power capacities and are typically used in underground distribution systems to ensure safety and accessibility in densely populated zones. Since they are installed at ground level, they require more space but are easier to maintain compared to pole-mounted transformers.
Dry-Type vs. Oil-Filled Transformers
Dry-type transformers and oil-filled transformers each offer unique advantages and are suitable for different use cases. Dry-type transformers use air or another non-liquid medium for cooling, making them safer for indoor applications, environmentally friendly, and less prone to fire risks. They require minimal maintenance and are ideal for sensitive environments such as hospitals, schools, and high-rise buildings. However, they may have lower efficiency levels and higher initial costs compared to oil-filled models.
Oil-filled transformers, on the other hand, rely on mineral oil or synthetic fluids for insulation and cooling. This design allows for higher efficiency and better cooling performance, making them suitable for high-capacity industrial and outdoor applications. Despite their efficiency, these transformers pose environmental risks due to potential oil spills and require more rigorous maintenance practices. Additionally, their use near populated areas raises fire safety concerns.
When deciding between the two, factors to consider include installation location, budget, environmental impact, efficiency requirements, and safety protocols. Each type fulfills specific needs, ensuring electricity is distributed reliably and appropriately across a wide range of industries and environments.
How Do Distribution Transformers Differ from Power Transformers?
Distribution transformers and power transformers serve distinct roles within the electrical grid. Distribution transformers are designed for low-voltage applications, stepping down voltage to levels suitable for residential, commercial, or industrial use. They are typically smaller, operate at lower efficiency, and are located closer to end-users. Power transformers, on the other hand, are used in high-voltage transmission networks to step up or step down voltage between generators and distribution systems. These transformers are larger, highly efficient, and primarily operate under full load conditions. The choice between the two depends on their placement within the electrical infrastructure and their specific operational requirements.
Voltage Levels and Capacity Differences
The distinction in voltage levels and capacity between distribution and power transformers is critical for their respective applications. Distribution transformers typically operate at lower voltages, ranging from 400V to 33kV, and are designed to handle smaller loads suitable for residential or commercial distribution. They focus on meeting immediate demand, resulting in lower capacity, which usually falls below 500 kVA. Conversely, power transformers are built for high-voltage use—commonly between 33kV and 765kV—and address substantial capacity requirements, often exceeding 500 kVA. These transformers are essential for long-distance power transmission, ensuring minimal energy loss while transferring electricity effectively between generation and distribution points.
Application in the Power System
Transformers are integral to the operation of modern power systems, playing a critical role in the generation, transmission, and distribution of electricity. Distribution transformers are specifically employed to step down high-voltage electricity to safer, usable levels for residential, commercial, and industrial purposes. They operate efficiently in localized areas where demand is lower and consistent. On the other hand, power transformers are designed for use in transmitting electricity over long distances. They are deployed at substations to step up the voltage from power plants, reducing energy loss during transmission. This stepped-up power is later reduced using distribution transformers for end-user consumption.
Design and Construction Variations
The design and construction of transformers vary significantly based on their intended function, capacity, and operating environment. Power transformers are typically larger and constructed to handle higher voltage levels, ensuring minimal energy loss during long-distance transmission. They are designed for maximum efficiency at full load and often utilize robust insulation systems and cooling mechanisms like oil-immersed or air-cooled designs.
Distribution transformers, in contrast, are smaller and optimized for lower voltage levels. They are built for energy efficiency at partial loads, given the fluctuating demand from end-users. These transformers often employ simpler cooling systems and lighter construction materials. Furthermore, their compact design enables installation in confined urban or rural settings.
Special-purpose transformers, such as autotransformers, step-up/step-down units, and isolation transformers, feature unique construction tailored to specific applications. For instance, autotransformers use a single winding for both primary and secondary functions, reducing size and costs, while isolation transformers provide enhanced safety by electrically isolating circuits.
What Are the Key Factors in Distribution Transformer Installation?
Proper installation of distribution transformers requires attention to several critical factors to ensure reliability and efficiency. First, site selection is essential, as the location must provide stability, ventilation, and protection from environmental hazards. Second, proper grounding is necessary to maintain safety and reduce the risk of electrical faults. Third, load evaluation and connection should align with the transformer’s capacity to prevent overloading and maintain optimal performance. Additionally, adherence to local electrical codes and standards ensures compliance and safe operation. Regular inspections and maintenance further enhance the transformer’s lifespan and functionality.
Choosing the Right Location: Pole, Pad, or Vault
The placement of a transformer, pole-mounted, pad-mounted, or vault, is dependent on application considerations, environmental conditions, safety features, and overall accessibility.
Pole Mounted Transformers: These types of transformers are often seen in residential and rural places with sparse space, as well as areas with overhead power lines. Their advantages include lower cost, speedy installation, and little interference both above and below ground. These transformers, however, cannot be placed in areas exposed to strong winds and storms. The destruction of poles in these areas can disrupt the delivery of electricity.
Pad-Mounted Transformers: This equipment is designed for urban and suburban areas. They are located on the surface and connected to underground power cables. In addition, they enhance safety since the equipment is well secured and suitable for areas of high pedestrian traffic due to the maintenance accessibility they provide. Safety clearances however, must be maintained as per relevant laws and policies.
Vault Transformers: For densely populated metropolitan regions or for particular city buildings, vault transformers are placed in fully enclosed and often underground locations. Apart from supplying maximum anti-tamper and severe weather for critical applications while greatly reducing noise for critical applications. These devices do, however, entail greater installation and upkeep expenses because of limited accessibility to the space.
Safety Considerations and Regulatory Compliance
When implementing any system or infrastructure, prioritizing safety and adhering to regulatory standards is essential. Safety considerations should include the identification of potential hazards such as confined spaces, electrical risks, or environmental factors like flooding. Proper training for personnel and conducting regular inspections are critical to mitigating operational risks. Compliance with local and international regulations, such as OSHA (Occupational Safety and Health Administration) guidelines, ensures not only the well-being of workers but also the legal viability of the project. Additionally, the adoption of industry standards for design, installation, and maintenance enhances both safety and efficiency. Collaborating with certified professionals and regularly reviewing updated regulatory standards can further ensure a safe and compliant operation.
Connecting to the Distribution Circuit
When connecting to a distribution circuit, it is essential to follow a structured approach to maintain safety and ensure system reliability. Begin by reviewing the specifications of the distribution circuit, including voltage levels, load capacity, and protection requirements. Verify that your equipment is compatible with the circuit’s parameters to avoid system malfunctions. Proper grounding techniques must be applied to protect against electrical hazards and ensure system stability.
Additionally, follow established protocols for integrating circuit breakers, fuses, and disconnect switches to manage overcurrent scenarios. Always use certified components that comply with local electrical codes and standards, such as NFPA 70 (National Electrical Code). Before energizing the connection, conduct thorough system testing, including insulation resistance and continuity checks. Collaborating with qualified electricians and adhering to regulatory standards is crucial for a safe and efficient connection.
How Do Step-Up and Step-Down Transformers Function in Distribution?
Step-up and step-down transformers play a critical role in electrical distribution systems by efficiently managing voltage levels. A step-up transformer increases the voltage of electrical power generated at power plants for transmission over long distances. This process minimizes energy loss by reducing the current in transmission lines. Conversely, a step-down transformer decreases the voltage at substations or near end-users, making it suitable and safe for residential, commercial, and industrial use. Both types ensure the efficient and reliable delivery of electricity while maintaining system safety and meeting energy demands.
The Role of Step-Up Transformers in Power Transmission
Step-up transformers play a crucial role in the efficient distribution of electricity over long distances. By increasing the voltage of electrical power, they significantly reduce energy losses during transmission, as higher voltage allows for lower current while delivering the same power. This reduction in current minimizes resistive losses across transmission lines, making the process more economical and sustainable. Step-up transformers are typically located at or near power generation facilities, where electricity is initially generated at lower voltages. The increased voltage is then transmitted across extensive networks to reach substations, where it can be stepped down for safe, practical use. Their importance lies in enabling long-distance energy transmission without significant efficiency loss, ensuring a reliable and cost-effective power supply.
Step-Down Transformers: Bringing Voltage to Usable Levels
Step-down transformers are essential devices in the power distribution process, designed to reduce high voltage electricity from transmission networks to manageable levels suitable for residential, commercial, and industrial use. They operate on the principle of electromagnetic induction, using a coil configuration that decreases the voltage while maintaining power consistency. These transformers play a critical role in ensuring the safety and efficiency of the electrical systems we rely on daily. By lowering voltage levels, they enable appliances and equipment to function without risk of damage from excessive power, aligning with the various voltage requirements of end-users. Their widespread application, from neighborhoods to manufacturing facilities, underscores their importance in modern energy infrastructure.
Voltage Transformation Ratios and Their Importance
Voltage transformation ratios are essential for understanding how transformers operate to adjust voltage levels between circuits efficiently. The ratio is determined by the number of windings in the primary coil compared to the secondary coil. For example, a 10:1 ratio means the transformer reduces the voltage by a factor of 10, suitable for stepping high voltage down for safe residential or industrial use. These ratios ensure compatibility with diverse energy requirements, preventing equipment damage and energy loss. They are fundamental across multiple applications, including power distribution grids and electronic devices, enabling a balance between performance, safety, and energy efficiency.
What Determines the Efficiency of Distribution Transformers?
The efficiency of distribution transformers is influenced by several key factors. One primary factor is the quality of the core material, as better materials reduce core losses caused by hysteresis and eddy currents. Another significant contributor is the quality of the windings, where lower resistance minimizes copper losses. Proper design, including optimal winding configurations and insulation, also ensures efficient energy transfer. Additionally, the transformer’s load factor plays a role; operating close to its rated capacity generally improves efficiency.
Core Materials and Their Impact on Energy Efficiency
The choice of core materials significantly influences a transformer’s energy efficiency. High-quality magnetic materials like silicon steel and amorphous metals are commonly used due to their low hysteresis and eddy current losses. Silicon steel, with its grain-oriented structure, is widely preferred for its ability to reduce core losses while maintaining magnetic performance. Amorphous metal cores, on the other hand, offer even lower core losses, as their non-crystalline structure minimizes resistance to magnetic flux changes, making them ideal for high-efficiency applications. Material thickness and lamination quality also play a role, as thinner lamination reduces eddy current paths, enhancing efficiency. Innovations in manufacturing processes and material improvements have further refined the use of core materials, contributing to more efficient and sustainable energy systems.
Winding Design and Loss Reduction
Effective winding design is crucial in minimizing losses and enhancing transformer performance. Optimizing the geometry of windings can significantly reduce resistive losses, which are caused by the resistance of the winding material to electric current flow. Using high-purity copper or aluminum conductors, with minimal resistance, helps lower these losses.
Additionally, the arrangement of windings, such as interleaving primary and secondary windings, reduces leakage flux and enhances magnetic coupling, decreasing stray losses. Proper insulation and spacing in the winding design are critical to preventing hotspots and ensuring heat is evenly dissipated, avoiding thermal degradation.
Another significant consideration is the mitigation of eddy current losses within the windings, which can be achieved through stranded or transposed conductors. Techniques like continuously transposed conductors (CTC) spread the current more evenly across strands, reducing eddy currents generated by circulating currents or high-frequency harmonics. These design principles, combined with advanced modeling tools, ensure high efficiency and reliability in modern transformer systems.
Cooling Methods and Their Effect on Transformer Performance
Efficient cooling methods are essential for maintaining transformer reliability and extending its operational lifespan. Modern transformers rely on various cooling techniques, tailored to their design and operational needs. The two main categories are liquid-immersed cooling and dry-type cooling.
Liquid-Immersed Cooling Systems: These systems use mineral oil or synthetic fluids as coolant to transfer heat away from the core and windings. Common methods include Oil Natural Air Natural , where heat dissipation occurs through passive natural convection, and Oil Natural Air Forced , which employs fans to enhance air circulation. For higher power transformers, methods like Oil Forced Air Forced or Oil Forced Water Forced introduce pumps and water exchangers to increase heat removal efficiency.
Dry-Type Cooling Systems: Unlike liquid-immersed counterparts, dry-type transformers rely on air or gas for cooling. Air Natural systems depend on convection currents, while Air Forced systems involve external fans to improve heat transfer. Gas-cooled alternatives, such as those using SF6 or nitrogen, are deployed in specialized applications requiring additional safety.
Each cooling method impacts performance by managing temperature rise, thus ensuring insulation integrity and reducing the risk of overheating. Advanced monitoring systems and thermal models enable real-time optimization of cooling, adapting to load variations and extending transformer service life. Selecting the appropriate cooling system depends on operational environments, load capacities, and efficiency requirements.
How Are Distribution Transformers Maintained and Serviced?
Distribution transformers are maintained and serviced through a combination of routine inspections, condition monitoring, and preventive measures. Regular checks include assessing oil levels, analyzing oil quality for contaminants, and testing insulation resistance to ensure dielectric strength. Thermal imaging is often used to detect hotspots that might indicate excessive heating or potential faults. Cleaning external components, tightening connections, and inspecting bushings for cracks or damage are essential steps to prevent failures. Advanced diagnostic tools, such as dissolved gas analysis, help identify internal issues early, enabling timely repairs. Periodic servicing ensures optimal performance, extends the operational lifespan, and reduces the likelihood of costly downtime.
Regular Inspection and Testing Procedures
Regular inspection and testing of distribution transformers are critical to maintaining reliability and preventing unexpected failures. Key procedures include checking for oil leakage, ensuring proper oil levels, and testing oil quality for issues such as moisture or gas buildup, which may indicate internal problems. Insulation resistance is tested to verify the integrity of electrical components, while thermal imaging helps identify overheating or hotspots. Visual inspections focus on areas like bushings, cooling fans, and radiators to detect signs of wear, cracks, or corrosion. Additionally, dissolved gas analysis is a standard method to monitor gases dissolved in the oil, which helps predict faults such as arcing or overheating. Periodic on-load tap changer maintenance and tightening of connections are also vital to ensure efficiency and safety. These procedures, carried out systematically, enhance transformer performance, minimize downtime, and extend the equipment’s service life.
Common Issues and Troubleshooting Techniques
Transformers, while reliable, are susceptible to a variety of operational issues. Below are some common problems and their troubleshooting techniques:
Overheating
Overheating often results from overloading, blocked cooling systems, or degraded insulation. To address this, verify the transformer load and reduce it if necessary, clean or replace cooling fans and radiators, and inspect the insulation for any wear or damage.
Oil Leakage
Oil leakage can lead to insufficient oil levels, reducing cooling efficiency and causing overheating. Troubleshooting involves identifying the source of the leak, tightening connections, or replacing gaskets and seals. Regular maintenance helps to prevent leaks before they start.
Unusual Noises
Humming or buzzing noises may indicate loose components, core issues, or electrical imbalances. Ensure all core bolts and clamps are tightened and inspect the winding and electrical connections for abnormalities.
Low Insulation Resistance
Low insulation resistance, often caused by moisture ingress, leads to reduced electrical performance. Regularly test insulation resistance and verify seal integrity to prevent moisture buildup. Drying techniques, like vacuum drying, can resolve existing issues.
Gas Formation in Oil
Gas buildup, detected through dissolved gas analysis, signals potential internal faults like arcing or partial discharge. Based on the DGA results, conduct further diagnostic testing to pinpoint the fault’s exact location for appropriate repairs.
Tripping or Erratic Operation
Frequent tripping may result from relay malfunctions, short circuits, or unstable power supply. Troubleshooting requires checking protective relays, inspecting for circuit breaches, and stabilizing the incoming voltage.
By following these techniques and implementing proactive maintenance, operators can mitigate risks, optimize performance, and extend transformer lifespan.
Upgrading and Replacing Aging Transformers
It is crucial to update or replace old transformers in order to guarantee reliable and effective performance of electrical systems. Such transformers result in reduced efficiency, higher operational costs, and an increased failure risk. Choosing between upgrading and replacing requires an evaluation of the transformer condition, maintenance record, and operational demands. Enhancements like better cooling systems, modern insulation materials, and advanced monitoring technologies can be added during upgrading to improve the transformer’s longevity and efficiency. However, if the transformer’s severe degradation or capacity shortfalls make it impossible to meet required demands, replacement is likely to be the most beneficial option in the long run. Due to their reduced losses, better energy efficiency, and compliance with environmental regulations, modern transformers are more economical and pos capable.
References
Frequently Asked Questions (FAQ)
Q: What is a distribution transformer and how does it work?
A: A distribution transformer is used to convert high-voltage electricity from the power distribution system to a lower voltage suitable for use in homes and businesses. It consists of a transformer core, transformer winding, and transformer oil, and is designed to efficiently transfer electrical energy from one circuit to another while stepping down the voltage.
Q: What are the different types of transformers available for distribution?
A: There are several types of transformers available for distribution, including single-phase transformers, pad-mount transformers, and pole-mount transformers. Each type is designed for specific applications and environments within the power distribution system.
Q: How are distribution transformers installed?
A: The installation of distribution transformers depends on the type of transformer and its intended application. Pad-mount transformers are generally installed on concrete pads and connected to underground distribution lines, while pole-mount transformers are mounted on utility poles and connected to overhead distribution lines.
Q: What role do distribution transformers play in the power supply system?
A: Distribution transformers are used to step down the high voltage from the primary distribution lines to a usable secondary voltage. This allows the power supply transformer to deliver electricity safely and efficiently to homes, businesses, and other facilities.
Q: What materials are transformers made from?
A: Transformers are made from materials that include a steel core, copper or aluminum windings, and insulating transformer oil. These materials are selected to ensure efficient transformer operation and longevity in the power distribution system.
Q: Can a distribution transformer be used for both residential and commercial applications?
A: Yes, a distribution transformer may be designed to meet the electrical demand for both residential and commercial applications. They are versatile and can handle various load requirements within the power distribution system.
Q: How do pad-mount transformers differ from pole-mount transformers?
A: Pad-mount transformers are installed on the ground and are enclosed in a secure metal cabinet, making them suitable for urban and suburban settings. Pole-mount transformers are mounted on utility poles and are typically used in rural areas where space is less constrained.
Q: Why is transformer oil important in a distribution transformer?
A: Transformer oil is crucial because it serves as an insulating and cooling agent. It helps to dissipate heat generated within the transformer core and windings, ensuring efficient transformer performance and preventing overheating.
Q: What factors influence the demand for distribution transformers?
A: The demand for distribution transformers is influenced by factors such as urbanization, industrialization, and the need for reliable electricity supply. As populations grow and energy consumption increases, the need for efficient transformers designed to handle varying loads becomes more critical.
