Transformers as a whole world are devices of great importance since they facilitate the efficient and effective control of electrical systems such as voltage regulation and power distribution. Of various transformer classes and types, almost all engineers would agree that 35kV class cast resin dry-type transformer safety, reliability and environmental advantages are second to none. This guide can be interpreted as an information source for both engineers and advanced managers in the electrical industry about these transformers.
The history of electrical power engineering, without dry-style transformers, is simply impossible to imagine. In this article, we will reveal the different key characteristics that define the quality of dry transformers such as their composition, construction, and performance in various operating environments and climates as well as the most effective methods of installing and servicing them. By the end of this guide, you should hope to know the whole technology and what Transformers Dry-Type Cast Resin VTT are capable of achieving in our modern squared world, along with the great advantages that make them rise to the top of the power engineering world.
What is a cast resin transformer and how does it work?
A cast resin transformer falls into the category of dry-type transformers, and it uses resin to enclose the winding providing insulation against moisture, dust, and chemicals. A drawback of vault-filled transformers is their reliance on liquid coolants, and cast resin transformers, Conversely, eliminate that concern. These transformers rely primarily on primary and secondary windings coils in which electrical energy is transferred between these coils by induction, where the windings are completely covered in a resin material. With such a setup, not only is there excellent removal of heat but also a decreased chance of fire, and increased reliability, making them suitable for use indoors and at medium voltages.
Understanding the basic principles of cast resin transformers
Due to electromagnetic induction, transformers based on cast resin can transfer energy between circuits through a magnetic field. Both primary and secondary windings are covered with epoxy resin which acts as a strong insulating material hence there is no need to use oil coolants. This construction provides an additional layer of protection against moisture, dust and chemical corrosion making them quite dependable in all operating conditions. As a bonus, this resin encasement contributes towards thermal management, allowing for proper heat distribution, stable operation under heavy loads and decreased maintenance needs. Such transformers are perfectly safe for use as they are non-flammable and non-combustible and therefore do not pose a threat of outbreak of fire, which makes them usable in places with high safety requirements like hospitals, tunnels and some industries.
Key components: windings and core
Transformers have primary and secondary windings. The primary is the input and the secondary the output, with the number of turns present in coils determining the ratio of the transformation. The windings are preferably copper or aluminum due to their excellent electrical conductivity and better thermal efficiency.
The core is equally important for it gives a path for magnetic flux to flow thus enabling energy transfer. The laminated silicon steel is used in the core to minimize eddy current losses and thus improve operational efficiency. The core’s design, shape and material are important for the transformer in regards to energy loss and ability to work under different operating conditions.
How to cast resin transformers differ from oil-filled transformers
The insulation medium, the oil-filled transformers, the maintenance processes, and the winding exposed environment are the main factors determining the differences of the cast resin transformers and the previously mentioned type. These areas include:
Insulation Medium
The insulation medium for cast resin transformers is an epoxy resin that encapsulates the windings, when solidified and acts in damage prevention against moisture and foreign particles.
With oil filled transformers, the mineral oil serves as a better insulating and cooling internal medium.
Cooling Mechanism
In almost all high-capacity designs the need for liquid cooled systems has been substituted by cast resin because the Transformers In dis dampers the oil and is moved around the oil automatically switches on and an AO Centers is incorporated if necessary AF is involved.
ONAN which includes both natural oil circulation. For oil filled transformers the oil serves as a medium for heat displacement during the oils relay Aquarius direction or using additional forced cooling systems which include using pumps or fans set up to otherwise maintained ones aiding in OFAF.
Maintenance
Maintenance of Cast resin transformers is virtually nonexistent due to their dry design and the need for routine surveys now and then.
Oil filled transformers need routine oil maintenance practices such as oil quality checks, filtering and replacements to avoid any forms of oil contamination and or degradation that may lead to them being broken.
Environmental Impact
Due to the increased charge in environmental awareness cast resin transformer development supports do help in easing the worries of fires, oil spills and pollution that would root from oil leak poisoning.
Oil filled transformers on the other hand have a few environmental disadvantages at oil spillage regardless of whether it’s a risk.
Technical Specifications
Operating Temperature Range:
Cast Resin Transformers: Three Class H or Class F insulation ( up to 155 °C)
Oil filled transformers: Single Class A insulation (up to 105 °C)
Voltage Levels:
On the other hand, Cast Resin also has higher capacitance but the range of voltage is limited to 36 kV.
Oil-filled transformers can work with much greater voltages which are sometimes over 100 kV.
Life Cycle:
The average range for Cast Resins is about 20 to 25 years.
With good care and use, Oil filled transformers can go on for 30 to 40 years.
These variations explain the basis for transfer type selection for the application, working environment, and environmentally sustainable development in the future.

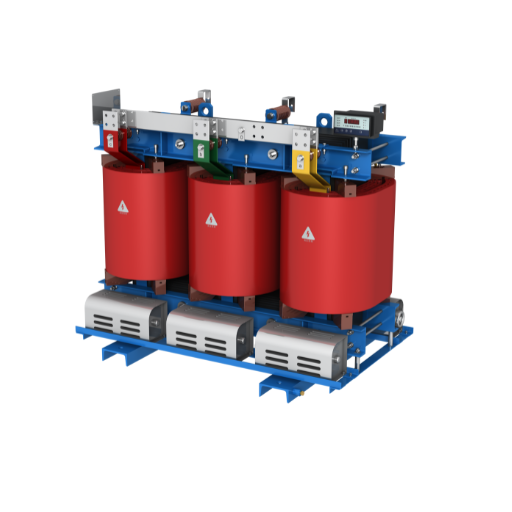

What are the advantages of using cast resin dry type transformers?
Transformers hyped up of dry cast resin have gained advantages, particularly in dry environments where security well well-being but ease in maintenance are preferred. Because of their encapsulated windings, the potential of oil fires being present has been eliminated, making them highly fire resistant. They have a much higher resistance to maintenance in comparison to oil-filled ones due to the reason that they are self-extinguishing, leaky oil and routine oil maintenance checkups are avoidable. Having a high density against moisture, corrosive elements and dust, cast resin transformers have a long life span making it easier for the installation to be conducted indoors or even in harsh conditions. They also are very quiet when in use, and are nonpolluting as they do not consist of any hazardous liquids. In sensitive cases such as medical facilities, schools or densely populated cities, their reliability and safety make them best suited.
Enhanced safety and environmental benefits
In an industry where protecting people is paramount, it is significant to have a low fire hazard in case of failure measures like internal arc resistance and an overall better equipment design to reduce risks. For example, every unit has self-extinguishing materials and pressure relief systems that make sure the unit is safe to operate under fault conditions.
On a broader and more environmental scale, this sub-sector is adapting well to the trend of moving away from the traditional SF6 gas in most systems and moving over to the air or another inert gas. Alternative technologies that employ clean air insulation and vacuum interruption, for instance, have almost no global warming potential when compared to SF6 gas which has a GWP of 23,500. Also, using energy efficient designs as well as recyclable materials during the integration phase of the enabled units reduces the environmental impact throughout the equipment’s life cycle.
The market offers units that have working voltages of 36kV with currents that range from 630A all the to 3150A and these units have breaking features that can stop up to 40kA but these differ from a manufacturer and functionality standpoint. These characteristics however allow the equipment to be rugged while adhering to safety and environmental requirements like IEC 62271.
Improved reliability and reduced maintenance
To the reader, reliability improvement and maintenance reduction are the same, and both simply boil down to enhancing monitoring systems and components. In such a case, I would recommend the use of vacuum or SF6 interrupters, as these have been shown to improve the performance of the system whilst decreasing the maintenance intervals. In addition, the use of predictive diagnostics tools will also help in preventive maintenance, in the sense that potential faults will be checked and reports are done, hence minimizing breakdowns, and unplanned downtime. Adopting proper systems that conform with engineering standards such as IEC 62271 will enhance the life of equipment and its overall functionality.
Space-saving design and installation flexibility
There has been much advancement in technology and design but it is of no use until the change is effective and space is preserved. I would recommend taking advantage of switchgear systems because they manage to maximize all dimensions of efficiency and design. Custom panel design and multi-directional cable entry permit a system to be easily installed in a variety of locations thus eliminating a lot of potential site issues. It must be kept in mind that the maximum height of a panel should not be more than 2000mm, the depth of the panel must not be between 600-800mm and a weight exceeding 250 kg is considered inefficient. These attributes not only conform to the design guidelines but also enable the system to be installed every day without any loss of productivity.
How are cast resin transformers designed for optimal performance?
Transformers that utilize cast resin insulation, or ‘dry type transformers’, are well engineered as they employ effective insulation systems and high grade materials to boost the transformer’s durability and efficiency. The windings are coated or embedded with epoxy resin which provides the best moisture proof and dust proof as well as corrosion resistance. The thermal management systems focus on robust heat dissipation characteristics while the magnetic core is reasonably designed to attain a minimal core loss and noise. The designs of these transformers are by standards established around the world, especially the IEC and ANSI standards which aim at ensuring that these transformers can perform effectively under different loads and for a longer period. Furthermore, these transformers are characterized by low maintenance requirements, suitability to surrounding conditions as well as good short circuit withstand strength enabling use in a wide range of industrial and commercial applications.
Insulation techniques and epoxy resin encapsulation
Techniques regarding insulation are of utmost importance in ensuring that the transformers perform their functions consistently and efficiently. My objective is to use materials with high dielectric strength to increase both thermal and electrical isolation. Together with precision winding, multi-layer insulation systems are effective in minimizing the chances of partial discharge, hence, improving lifespan. When it comes to epoxy resin, my preference goes to VPI processes so that air caps can be removed and smooth coating applied. This technique enhances mechanical strength, shields the devices from the environment including moisture and dust, and improves service life. If these time proven practices are observed, I can assure that the transformers will be functioning and wearable optimally.
Temperature monitoring and ventilation systems
For a transformer to operate effectively and not overheat, it must be coupled with regular monitoring of temperature and controlled ventilation. Temperature monitoring systems usually consist of RTDs, thermocouples, or fiber optic sensors which are capable of reading temperatures from windings and oils. This ensures the abnormal increase in heat is detected immediately and necessary steps are undertaken to conserve and protect the vital components. It is noteworthy that for insulation class specifications, a transformer should be designed in such a way that the maximum operating temperature for oil-filled transformers is 105 °C while for dry-type transformers it is 180 °C.
Then it comes to ventilators as effective ventilation has an equally important role in preventing overheating. For dry-type transformers, air forced systems and air with forced water are employed for effective temperature control. The correct position of air ducts alongside cooling fans guarantees airflow around critical components. For adequate heat transfer within the enclosure, ideal air speeds of between 2 – 4 meters per second should be maintained.
In the case of working, all integrated temperature control units are in danger of reaching set temperature limiting factors and it is on this occasion when monitoring and alarm systems automatically switch on cooling fans. The advantages of such designs are obvious; the task of regulating the temperature of the transformers is maintained within the safety limits attributing to higher operational efficiency and reliability. It is of great importance that in the case of any sensors or cooling systems maintenance work is performed to keep accuracy and efficiency at the desirable levels.
Short-circuit and partial discharge protection
To enhance the safety and performance of electrical equipment, short-circuit protection can isolate efficiently damaging fault currents. Such protective devices include fuses and circuit breakers, which are parametric depending on the load specifications and the fault current available in the system. A range of 25 kA to about 40 kA for about 1 to 3 seconds is usual for medium voltage systems depending on application requirements.
Protection against insulation loss due to partial discharges is very important to extend the lifetimes of switches. Each partial discharge can be tested via specialist detection equipment which works at very low levels sometimes only a few pC. There are specified levels of discharges tested within the insulation of materials and appliances by working at a given voltage for instance <5 pC at 11 kV and <10 pC at 33 kV under normal conditions. Key elements in reducing downtime and ensuring safety include the use of online PD monitoring systems which allow changes to be tracked across a range of variables. Finally, the routine testing of the systems and procedures for monitoring is central to enhancing the determinative values of the system.
What voltage levels can cast resin transformers handle?
Typically, cast resin transformers revolve around the low and medium voltage levels everywhere ranging from 1kV to 36 kV depending on the design and application of these transformers. They are mainly usable across medium voltage networks and they can perform the operation of step up or step down of voltages with ease and are reliable. uncomplicated use.
Understanding LV and HV applications
Taking into account LV (Low Voltage) and HV (High Voltage) applications, I see that cast resin transformers are indeed very practical and seem to meet every operational need. As for LV, the maximum voltage range for these transformers is usually rated not higher than 1 kV, thus they can be effectively employed in industrial or commercial applications where the safe and reliable distribution of electric power is a must. Conversely, in HV applications, the cast resin transformers may have ratings of up to 36 kV and are essentially utilized in medium voltage networks in some industries or infrastructure constructions. Considering their reliability, low maintenance and reduced risk such as fire, these types of transformers do provide a suitable answer for both LV and HV applications.
35kV class cast resin transformers: capabilities and uses
Unveiling the 35kV Class Cast Resin Transformer is a gamechanger when it comes to security and performance Electrodes cast resin transformers offer a wide variety of options and it won’t be a surprise that these can easily serve up to a voltage capacity of 35 kV On a more technical note this transformer is highly recommended for power distribution for industrial, renewable energy plants, as well as other structural development projects As for its core capabilities some very promising features include remarkable insulation performance, moisture and contaminant resistance as well as superior fire safety due to the self-extinguishing features of resin
As of now, the features and structure of 35 kV cast resin transformers have been golden in creating reliability while minimizing maintenance costs and requirements The use of a solid insulation system does remove the dependence on oil which all together increases not only their overall performance but decreases the chances of leakage or fire Their features of high thermal endurance would allow operation in extreme weathers namely humid or coastal regions and high altitudes something their high performance and reliable design style allows them to do Combining operational features with built-in advanced cooling systems only boosts the lifespan of the transformer while maintaining the same level of steady heat dissipation
These transformers are a common sight in critical areas like commercial spaces, factories, server rooms, and projects that revolve around clean sources of energy. Moreover, they can help pass strict confinement compliance through heavy-load situations, which makes them essential elements for contemporary power systems. With the right technological advancements and compliance with international standards, 35kV class cast resin transformers can cater to the requirements of energy efficient operations that are required in various sectors.
Voltage transformation ratios and efficiency
A 35kV class cast resin transformer’s operational characteristics are completely governed by the voltage transformation ratio. This ratio which is known as the primary voltage to the secondary voltage ratio is between 10 to 35 for high to low voltage transformation at the low voltage distribution end. For example, the primary voltage is 35,000V which is stepped down to a secondary voltage of 380V or sometimes even 400V depending upon the requirement. The efficiency rating of these transformers is normally very high, coming up to around 98% or more calculated for full load usage and hence minimal energy losses. Important parameters for consideration are kW load losses, W no load losses and kVA impedance voltage which is around 6% – 10% for the transformer in question. These values make sure that the energy compliance levels are met for standards such as IEC 60076-11.
How do cast resin transformers compare to oil-filled transformers?
There are some distinct differences between cast resin and poured oil transformers. Cast resin transformers have solid insulation which makes them suitable for indoor locations without sufficient ventilation as well as those with higher fire safety requirements since they are classified as self-extinguishing, and non-combustible. On the other hand, an oil-filled transformer has liquid insulation, therefore, high thermal resilience and efficiency are achieved under greater load due to the enhanced heat dissipation. Unfortunately, units filled with oil present fire risks since their use is accompanied by difficulties such as regular maintenance to control leakage and pollution. Usually, filled with resin transformers have less risk of polluting the environment, whereas transformers filled with oil are more appropriate for external applications where the effectiveness and load indices matter more. Each type is appropriate for certain applications based on the conditions of operation and the degree of safety needed.
Environmentally friendly aspects of dry-type transformers
From the point of view of the environment, cast resin transformers, which are included in dry-type transformers, have some advantages over oil filled transformers. The chances of oil spillage which could result in pollution of water and soil are done away with, making them very much safe for the ecosystems. They also do not have to use insulating oil, hence, reducing the dependence on oil-based products. The maintenance of dry-type transformers is less and hence the use of resources throughout their life is saved. They also help make environments safer because they do not emit any toxic substances and are self-extinguishing. So the sustainability policies are not compromised in any way because of this feature. All these reasons enhance their reputation as an environmentally friendly solution suitable for nearly any application.
Maintenance requirements and total cost of ownership
Dry-type transformers have low operational costs over time due to the lack of maintenance needed. They also do not have any oil or any other insulating liquids which would require a check from time to time. The maintenance work in this case includes cleaning air ducts and examining dust build-up at various connections. Structural durability also improves the efficiency of operations besides reducing maintenance downtime.
One of the biggest financial reasons to go for dry-type transformers has to do with their longevity which brings the total cost of ownership down. Capital costs aside, dry-type transformers strike more value in the long term due to savings on the costs of oil management and spill containment. Most importantly, dry-type transformers operate better over a longer period compared to wet ones, alongside being able to tolerate moisture among other substances affecting the environment. Overall, these factors mean that the cost of setting up the transformers is very reasonable compared to what value a company seeking long-term assets would receive.
Performance in different operating conditions
Because of their sturdy design as well as lack of oil-based insulation, dry-type transformers operate well in different working conditions.
High-temperature Environment
Due to the inherent insulation system design, some dry-type transformers can even function in higher ambient temperatures (up to 40 degrees Celsius) without a hassle (IEC 60076-11 specification). The insulation system allows for end windings to reach a temperature of 155 to 180 degrees Celsius maximum. This limits thermal overloading and helps in achieving the required operating temperature.
Moisture Prone Areas
Dry-type transformers work well in humid or wet environments due to their design, which makes them resistant to moisture and dampness. Their windings are further protected from moisture using vacuum epoxy encapsulation or cast resin encasement, thus maintaining dielectric integrity.
Dusty and Contaminated conditions
Dry-type transformers function well in dusty and industrial areas with an IP enclosure rated from 20 to 54. Cleaning Routine also helps enhance air circulation and improve heat dissipation thus improving performance.
Overload Conditions
Dry-type transformers are effective when there is a short term rated load average using 1.2 – 1.5 of its capacity. Overload capabilities have limitations depending on the rated insulation and ventilation construction sequences of each equipment stagger.
Seismic and Vibration-Intensive Environments
To be operational in zones that are likely to experience earthquakes or industrial vibration, dry-type transformers have designs that are robust in mechanics satisfying seismic prerequisites like IEEE 693 or IEC 60721-3-4.
These features enable dry-type transformers to be used in a variety of applications in different environmental and operating conditions. However, care has to be taken in the installation and consideration of manufacturers’ specifications for optimal performance.
References
Electrical resistance and conductance
Frequently Asked Questions (FAQ)
Q: What are cast resin transformers and how do they differ from oil transformers?
A: Cast resin transformers are used in environments where oil-filled transformers might pose a fire hazard or require extra maintenance. Unlike oil transformers, cast resin transformers are designed with sealed cast epoxy resin, eliminating the need for oil. This makes them safer and easier to maintain in indoor applications.
Q: How does cast resin technology improve energy efficiency?
A: Cast resin technology enhances energy efficiency by using void-free resin impregnation throughout the transformer winding. This minimizes energy losses and ensures that the transformers are designed to operate efficiently over their lifespan.
Q: What is the typical application of cast resin transformers?
A: Cast resin transformers are usually found in distribution networks, industrial plants, and commercial buildings. They are particularly suited for indoor environments where safety and low maintenance are priorities.
Q: How do cast resin transformers handle temperature rise?
A: Cast resin transformers are designed and manufactured to manage temperature rise effectively. The natural air cooling system in these transformers helps dissipate heat, ensuring that they operate within safe temperature limits.
Q: What are the benefits of using a magnetic core of the transformer in cast resin models?
A: The magnetic core of the transformer in cast resin models is designed to reduce energy losses and improve performance. It helps maintain the efficiency of the transformer while reducing noise and vibration.
Q: Can cast resin transformers operate in areas with high humidity?
A: Yes, cast resin transformers are well-suited for areas with high humidity as their sealed cast epoxy resin body prevents condensation from affecting the transformer winding and other components.
Q: What standards or certifications do cast resin transformers comply with?
A: Cast resin transformers are designed to comply with international standards such as IEC. These standards ensure that the transformers are safe, reliable, and perform efficiently under various operating conditions.
Q: What maintenance is required for cast resin transformers compared to oil transformers?
A: Cast resin transformers require less maintenance than oil transformers due to their sealed design. There is no need for oil checks or replacements, and they are less susceptible to environmental contaminants, reducing maintenance frequency.
Q: How does the impregnation process benefit cast resin transformers?
A: The void-free resin impregnation throughout the transformer winding provides robust insulation and mechanical strength, enhancing the transformer’s reliability and longevity.
Q: Are there any special transformers within the cast resin category?
A: Yes, special transformers can be designed using cast resin technology for specific applications, such as those needing unique voltage configurations or enhanced environmental protections, making them versatile for various industrial needs.
