Demystifying MVA: The Mega Volt-Ampere Powerhouse in Electrical Systems
How is MVA used in transformer ratings
Facebook
Twitter
Reddit
LinkedIn

The Mega Volt-Ampere (MVA) metric is one of the more common measurements in large scale systems and thus an important concept in the field of electrical engineering. This article sets the objective of demystifying MVA by providing a nuanced discussion of its meaning and importance, its use and its ability to improve the functioning of electrical grids. We will deal with the basic theory of the MVA, its mathematical formula, as well as its relations with the real and reactive power of an AC system. Also, attention will be given to the ampere – the volume of transformer rated power, generator volume, and balance of power supply systems in the economy. After going through this discussion, the readers of this article would comprehend how and why MVA has become indispensable in cable and wire arrangement design. Readers will also appreciate the necessary designs that will need to be put in place to make the MVA effective in the different applications.

What exactly is MVA in electrical terms?

What exactly is MVA in electrical terms
What exactly is MVA in electrical terms

MVA, also known as Megavolt-Amperes, describes the capacity of Large AC systems especially in nonrotating equipment where a high amount of combined energy is required. It is very useful to know as it provides the users or engineers with a clear understanding as to how the active input to a signal provides an output without calculations on the distortion components affecting the signal. The reason MVA is hugely relevant is that for any device to work, it needs both active and reactive energies combined. This is uni-directional when in a steady state. Hence MVA describes a clear All-Encompassing rating of a system. In the context of generators or rotating equipment Large energy systems typically consistently work above a threshold of 2 MVA.

Understanding the concept of Mega Volt-Ampere

Mega Volt-Ampere (MVA) is the metric that quantifies the combined active and reactive power in an electrical system. Reactive and active power multiplied together gives us MVA which is active power. Let us discuss why this is so, starting with the crucial metric which is apparent power. Power is the amount of electrical energy that is supplied by a source that is useful for doing work and stored temporarily by inductors and capacitors and this also returns, the active energy, which is measured in watts while the reactive energy is measured in VARs. The amount of reactive energy to a great extent determines the design of systems such as transformers, generators, and transmission networks, all of which have a high load. A predetermined set rating of these parameters facilitates systems to take care of requirements, that are both real and counteracting, thus effectively contributing towards grid stability. MVA is commonly used by engineers to determine the electrical power systems capability, regulate loads and ensure that overloads on essential equipment are avoided. Which ultimately aims at ensuring excellent safety and operating effectiveness.

How MVA relates to voltage and current

MVA stands for mega volt-amperes and has a very close relationship with voltage and current as it measures apparent power in a system and it can be written mathematically as:

MVA = (Voltage × Current) / 1,000,000

This clearly states that MVA is equal to the system voltage in volts and the current in amperes multiplied by 1 million. Of course, the MVA can represent weight as it encompassed megawatts of active power and megavars of reactive power which allows one to understand the entire requirement of electrical load. When it comes to capacity analysis, MVA has ensured that the design and operation of the power systems do not exceed thermal limits or fail under conditions of excessive loading. This property is also very important in the designing of the transformers, switchgear or circuit-breakers since the values of total apparent power must be transformed by all these elements.

Differentiating MVA from other power units

MVA, or Megavolt – amplifiers is the combining of two quantities, real power (‘MW’) and reactive power (‘MVAR’), in total weight to signify the quantity of power and electrical systems.

To understand MVA relative to other units of power, we refer to:

Real Power (MW)

Is, the load’s nominal watts drawn to do work?

Technical Parameter: \( P = VI \cos\phi \) \(\cos\phi\) is the power factor.

Reactive Power (MVAR)

Normally occurs when the source and the load have passive agitating elements and that oscillating power Pourof ratio real power output.

Technical Parameter: \( Q = VI \sin\phi \), \(\sin\phi\) being the reactive part.

Apparent Power (MVA)

Interests in real and reactive power composite such that this is useable for the designs and applications of electrical appliances such as COS or taking the conventional MVA.

Technical Parameter: \( S = \sqrt{P^2 + Q^2} \), ensuring the system activities are in minimum operational parameters.

In the end, all of these distinctions make sense in design and assumptions that the electrical parts and systems are meant to be efficient and orderly and do not have sudden deviations in steady states.

How is MVA used in transformer ratings?

How is MVA used in transformer ratings
How is MVA used in transformer ratings?

MVA or Megavolt-Amperes is a crucial measure in transformer ratings since it indicates the maximum capacity the transformer can handle in terms of apparent power. It denotes the upper limit of real (\(P\)) and reactive (\(Q\)) power that can be drawn from the transformer while preventing it from overheating. By indicating MVA, manufacturers guarantee that the transformers have the right proportions with the load requirements without wasting energy. It also relates to this that it enables engineers to use appropriate transformers for the given task because it defines the operational range of the transformer.

Decoding MVA ratings on power transformers

While translating MVA ratings inscribed on power transformers, the number jawed is the apparent power which encompasses the total load that the transformer is capable of managing. As suggested by its name – apparent power, it is a generic term that includes active power (kW) along with reactive power which is usually denoted in kVAR and it is the total load that the transformer is required to withstand. MVA ratings are important because they determine the amount of electrical energy when placed on the transformer can be transferred without the transformer overheating for a given set of circumstances. Knowing these ratings eliminates the possibility of getting a transformer that does not meet the operational requirements of the system and also prevents the transformer from being overloaded which in turn enhances efficiency.

The significance of MVA in transformer selection

Dielectrics failing due to overheating within a transformer’s core might cause damages that are more serious than just adding replacements to the winding. Considering how its construction is not as simple, purchasing a transformer would push the production back quite a lot; this is why I take note of its MVA rating before purchase to ensure that proper load handling is met.

Parameters that I tend to focus on include the following;

Load Demand: This is done by knowing both peak and average loads to then be able to see where the MVA rating of the transformers falls into our depreciated load needs.

Voltage Levels: This speaks quantities the importance of looking closely at the graph to avoid differences within the input and output voltages.

Impedance: The correlation between the two greatly emphasizes the fact that currents might not always have the desired voltage for equipment.

Cooling System such as ONAN or ONAF: This is because these transformers require the capability of adhering to the regulation at a complete scale.

When a transformer is selected with an appropriate MVA parameter, the chances of overheating and failure are minuscule which in turn guarantees a relatively higher long term output performance.

Comparing transformers with different MVA ratings

While buying transformers with different MVA ratings, several considerations need to be weighed in:

Load Demand and System Requirement

Transformers with bigger MVA ratings are meant for catering larger loads and hence find applications in industries or bulk power distribution. On the other hand, MVA transformers with smaller ratings are suited for small scale industries or smaller electricity consumers. It is important to evaluate the load profile of the system to ensure that the transformer chosen is suitable for the needs, otherwise, the transformer will never be overloaded or utilized to its capability.

Loss and Efficiency

The larger the MVA rated transformer, it is noted that the efficiency under full load is always best as the designed features can reduce core or copper losses however at less than full output the level of efficiency recorded drops. Similarly, it will be the case for smaller servants as well but at lighter loads they may become more energy efficient transformers.

Size Constraints and Other Issues Relating to Construction and Placement

Cooling needs like ONAN or ONAF systems have an impact on the size of transformers and the space needed for their deployment. Large MVA transformers naturally require much room and also much stronger infrastructure. On the other hand,d the deployment of smaller transformers seems to require less room and are more adaptable to space constraints.

Cost and Long-Term Economies

MVA costing is critical. Transformers with higher ratings MVA are expensive but their capability of taking on new loads without replacement is commendable. A transformer on the other hand which is Low-rated may find initial investments easier but may inhibit future expansions.

Fault Currents and Voltage Regulation

A transformer with a fault protection scheme with a high MVA is preferred but be aware of the fault current during a proportional short circuit. Moreover, the voltage regulation requires proper consideration because the usage of large numbers of power transformers may affect the stability of the system concerning network conditions of varying loads.

Transformers are not only selected based on their cost and operational loading properties, but also suitable MVA transformers are finally chosen by the parameters of the adoption load, these include levels of performance and the funds available.

What’s the relationship between MVA and MW?

What's the relationship between MVA and MW
What’s the relationship between MVA and MW

Megavolts-amps and megawatts are power measurements but do not indicate the same things about electrical systems. Megavolt-amperes is the unit of measurement for apparent power which is the combination of real power, measured in megawatts, and reactive power, measured in MVAR, in alternating current systems. The amount of megavolt-amperes necessary in exchange for one megawatt is purely dependent on the power factor of that device meaning a megawatt is equal to megavolt-amperes times PF where 0<PF<1. The closer one is to 1 the better as that means more of the managed power is useful and not just reactive.

Understanding apparent power vs. real power

Power is measured in MVA (Mega Volt-Amperes) is known as apparent power and is the total power of an AC electrical system that is composed of both real power (MW) and reactive power (MVAR). From another perspective, real power is one of the forms of energy measured in MW which is consumed in other forms such as lighting or making machines operational. Another form MVAR or reactive power does not do any work, instead, it is needed for voltage regulation, which in turn allows real power to be transformed throughout the system.

The measure of how well power is utilized in a system through MVAR and MW is what differentiates the two. Power usage by the power system and all the losses caused by reactive components are represented geometrically as apparent power. In comparison to other devices, real power is governed by the power factor and the efficiency of the device. Hence, to increase energy saving efficiency and minimize distribution losses while safeguarding system stability of the electrical networks focusing on the power factor is essential.

The role of power factor in MVA to MW conversion

When converting MVA (megavolt-amperes) into MW (megawatts) the power factor is important as it indicates the portion of the apparent power that is put to use. Since the relationship between real power and apparent power is expressed in the formula, MW = MVA × PF. So, real power is represented by MW, while apparent power is represented by MVA. How well electrical power is converted into useful work is represented by the power factor (PF). A more efficient utilization of power is indicated by a higher power factor, while a lower power factor indicates that reactive power wastes a considerable amount of power. Increasing the power factor minimizes energy losses, enhances equipment efficiency, and may reduce costs of operation in electrical systems.

Calculating MW from MVA in electrical systems

To change MVA (apparent power) into an equivalent value of MW (real power), one can use the formula MW = MVA × PF where PF is understood to be a Power Factor. Key parameters required for this calculation are as follows: A ‘power factor’ is a dimensionless unit ranging between 0 and 1 giving the ratio between real power to apparent power and defining the effectiveness alongside the efficiency of power usage in most electrical systems. The measure of apparent power in the system is defined in MVA or Mega Volt-Amperes.

For example, let’s assume the system is working with an apparent power of 50 MVA and a powering factor of 0.8 then the calculation would be put forth as thus below:

MW = 50 × 0.8 = 40 MW

The figure showcased the real power which is being passed onto the load with the remaining amount being attributed to the reactive power which is lost across components in the system. Amber stated that ensuring that PF is functioning at its optimum value of 1 increases power consumption efficiency and minimizes wastage.

How do you calculate the MVA of a transformer?

How do you calculate the MVA of a transformer
How do you calculate the MVA of a transformer?

The calculation of the Maximum Voltage Amperage, or MVA in short, of a transformer can be done by takingthe  rated voltage, represented by V, and the amount of power supplied, denoted by I, and then dividing the outcome by 1000000. The formula is as follows:

MVA = (V * I) / 1,000,000

As for V, it could be the primary or the secondary voltage, which is measured in Volts, and for the letter I, it is the current, measured in Amperes. Take into account that the figures used should be accurate to the specifications of the transformer, otherwise the results won’t be reliable. This particular calculation gives you the apparent power rating of the transformer.

Essential formulas for MVA calculations

I prefer to employ the simple MVA formula MVA= (VI) / 1,000,000. Here, V stands for volts and I stands for amperes, to simply estimate the MVA of a transformer. For three-phase transformers, the formula needs to be changed owing to the nature of the system and it becomes MVA = (√3 × V × I) / 1,000,000. All the system specifications no matter whether the system is single-phase or three-phase should be used in their rated characteristics, to maintain accuracy in calculating the apparent power.

Factoring in voltage and current in MVA determination

Sometimes, when it comes to determining the MVA rating the final parameters that seem to be somewhat more complex are the voltage and current since these parameters will affect the overall accuracy of the equation. Whenever a three-phase transformer is being discussed, the customary value of V which is in this case voltage can be interpreted as the line-to-line voltage while the value of I which is the current can be interpreted as the line current under normal conditions. To ensure that these figures used in the computation are accurate, I cross-check these ratings with the available transformer data sheets and any other technical documentation available. Things that need to be checked include the primary and secondary voltage ratings, rated current in amperes, and the system’s phase arrangements. In this way, I will be able to determine the apparent power of the system with the help of the relevant standard formulas.

Practical examples of MVA calculations

The next part presents the MVA calculations specific to a three-phase transformer operating at a line voltage of 11 kV and a line current of 50 A. While undergoing these calculations, we will be using the following standard formula For three phases, the formula for apparent power states:

For the three phases, the formula for apparent power states that:

MVA = (√3 × V × I) / 1000

Substituting the values:

MVA = (√3 × 11,000 × 50) / 1000 = 0.95 MVA

A second case study is when a transformer is rated at 33 kV and the line current is 100 A. Utilizing the same equation given above:

MVA = (√3 × 33,000 × 100) however, this time it is divided by 1000 which translates to 5.72 MVA

Indeed, the above calculations and results highlight the necessity of correct input values and proper phase arrangement of the system. All the parameters regarding the transformer substations are in strict accordance with the rated values of this transformer, thus allowing for correct and accurate calculations of apparent power.

Why is MVA important in power distribution systems?

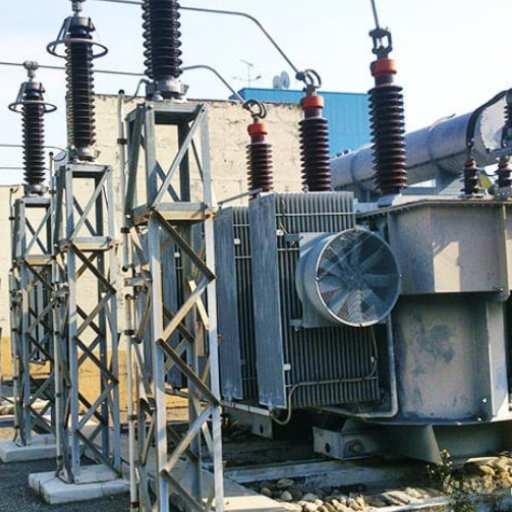

Why is MVA important in power distribution systems
Why is MVA important in power distribution systems?

MVA, or megavolt-amperes, is one of the most important characteristics of power distribution systems since it indicates the quantum of the apparent power comprising both active and reactive power. This evaluation is important within the practice of transformer, generator, and transmission line capacity planning in so far as the structures are matched to the load requirements. The accurate MVA values assist in avoiding overloading; improving the energy efficiency and the system security level by considering both the active energy supplied and the reactive energy needed for the voltage support of the system. In this regard, this parameter is significant in the designing and implementation of the power system to ensure that the operations and safety standards are achieved.

MVA’s role in determining system capacity

The assessment and evaluation of electrical components of the power system is greatly hinged on the MVA. This means that with the use of Electric Power Apparent Power, MVA incorporates both active power (converted into useful work, measured in MW) and reactive power (connotes the power which is used to maintain the voltage level, measured in MVAR). This measure also guarantees that the electrical rating of transformers, generators and transmission lines are appropriately set to cope with the anticipated electrical loads and current flow without reaching the level of overloading or being inefficient. In this manner, efficient designs are made that eliminate the chances of transmission bottlenecks and elevate the quality of power transmitted while maintaining the set voltage level with variations in the load Regarding his role, it also helps in coordinating load when more than one source or supply is available and in estimating the power source limits to guarantee robustness and expandability of the power distribution network.

How MVA affects power transmission efficiency

The amount of kVA being utilized impacts the efficiency of power transmission systems because of their relationship with kilovolt efficiency and the capacity of transmission grids as such both kVA and MVA translate to the volume of electrical current in the conductors, which leads to increased resistive losses thus reducing efficiency. This is the reason that to lessen these losses, transmission lines and systems are designed in such a manner that they can operate at elevated voltages P = VI and this helps reduce the electric current being drawn to ensure the same level of power is conveyed through the systems.

Parameters include:

For long distances power supply, kV values for levels are set at 110kV, 220kV, and 400kV or even higher – all to minimize I²R losses.

Measurements covering one kilometer have positioned the resistance of aluminum-core steel reinforced cables to be lower as opposed to others.

Determining the load I is based on the formula MVA multiplied (kilo times kW) divided by A root of three times V.

Thermal overload protection, protection against extreme voltage drops and strong and weak electrical currents are to be maintained to ensure stability – and the only way to oversee all these parameters is by limiting the load and maintaining the kVA values within the systems limits, so the engineers will be able to ensure maximum transmission capabilities.

MVA considerations in substation design

In the case of MVA ratings in your substation design, I make sure that all the equipment can put up with the peak load, without compromising on reliability and safety. As far as the maximum demand requirements of the substation are concerned, the transformer MVA rating should always have the capability to meet it, as well as cater to future requirements. Select the circuit breakers and switchgear according to the requirements of their interrupting capacity so that the safe working level is not compromised.

I also take into consideration the thermal limits regarding the conductors, optimum voltage regulation, and the thermal expansion during the normal and fault conditions.” Proper distribution of load across all the feeders, along with appropriate coordination of the protection system, will make sure that no part of the system exceeds its design limitations. Furthermore, the economic and functional parameters guide me in optimizing the arrangement and the amount of infrastructure in the network to achieve the desired results in the long run.

References

AC power

Volt-ampere

Watt

Frequently Asked Questions (FAQ)

Q: What is MVA in electrical terms?

A: MVA stands for Mega Volt Ampere, which is a unit used to measure apparent power in an electrical system. It is the product of voltage and current, without considering the phase angle, and is used in power generation and distribution systems.

Q: How is MVA related to a transformer?

A: An MVA transformer is an electrical device that helps in the transfer of electrical energy between two or more circuits through electromagnetic induction. It is used to match the MVA power capacity between different parts of the power system.

Q: Why is MVA important in high voltage applications?

A: MVA is important in high voltage applications because it indicates the apparent power that a transformer can withstand or transfer. High MVA ratings are crucial for ensuring efficient power flow in high voltage power stations and networks.

Q: What is the difference between MVA and actual power?

A: MVA measures apparent power, which includes both inductive and resistive load components, while actual power, measured in watts, only considers the resistive load with a unity power factor. The difference accounts for power loss in the system.

Q: How is MVA used in power generation?

A: In power generation, MVA is used to measure the total apparent power output of generators. It helps in designing and operating thermal power and other power generation facilities to ensure they can handle the required power capacities.

Q: What does a 10 MVA transformer signify?

A: A 10 MVA transformer signifies that the transformer is capable of handling an apparent power of 10 Mega Volt Amperes. This rating helps determine the size and cost of the transformer needed for specific applications.

Q: Can you explain the concept of the unity power factor about MVA?

A: At the unity power factor, the apparent power (MVA) is equal to the actual power (megawatts) because there is no inductive or capacitive component. This means the electrical device operates efficiently with purely resistive loads.

Q: What role does MVA play in power station design?

A: In power station design, MVA is critical for ensuring that all components, including transformers and generators, are capable of handling the expected power flow. It helps in planning and optimizing the infrastructure to minimize power loss and enhance reliability.

Q: How does a 100 MVA transformer differ from a 1 MVA transformer?

A: A 100 MVA transformer can handle a much larger apparent power than a 1 MVA transformer, making it suitable for larger installations like power stations or industrial plants, where high voltage and large power transmission are necessary.

Q: What factors affect the cost of a Daelim transformer with high MVA ratings?

A: The cost of a Daelim transformer with high MVA ratings is affected by factors such as the materials used, the complexity of design, cooling mechanisms, and the capacity to handle high voltage and power requirements. High MVA ratings typically lead to higher costs due to the need for more robust construction and safety features.
