The proper Transformer neutral grounding is essential in the functionality of modern power systems concerning safety, stability, and economy. It is part of the architecture of an electrical network that ensures that fault currents are absorbed and system protection devices function correctly. Neutral grounding provides direct or controlled system paths for fault current circuits which facilitates system damage reduction, correct fault isolation, and utmost safety for the operating personnel. In this article, we will analyze the technical aspects of neutral grounding of transformers, identify its various methods such as solid grounding, resistance grounding, and reactance grounding, and outline their respective applications in different operational scenarios. Furthermore, the article covers the effects of incorrect grounding from damage to equipment and even to network collapse, and how to issue such grounding techniques. By the end of this article, we will ensure that after the analysis conducted, everyone reading will understand fully why proper transformer neutral grounding is so invaluable for effective high-power systems operation.
What is the Purpose of Grounding in a Transformer?
Grounding in a transformer serves a couple of important issues. First, it guarantees the safety of the users as it adds a path with low resistance to the earth which helps a lot during insulation failures or lightning strikes by overvolting. Grounding additionally ensures system normal voltage stability under normal operating conditions which protect system equipment from electrostatic stress and depletion. Lastly, appropriate grounding of transformers permits the proper functional operation of protective devices as these grounds allow the flow of fault currents which guarantees quick fault detection and separation. This prevents damage to power equipment, reduces outage time, and enhances the effectiveness of the power system.
Exploring the Purpose of a Neutral in Electrical Systems
A neutral in electrical systems is important for smooth and safe working. In single-phase systems, neutrals serve as current return paths, functionally balancing the system which enhances operational efficiency. The neutral helps in properly distributing the voltage in a circuit by splitting the total supply voltage so that the loads work within their designed limits, hence preventing overvoltage damage to the equipment, and improving system efficiency.
The neutral is equally important for fault management. It provides a low impedance path to the transformer’s star point or ground which helps to stabilize the voltage levels in the presence of unbalanced conditions. This reduces the neutral point voltage and allows protective devices like circuit breakers and fuses to detect faults and isolate faulty circuits in an attempt to minimize risks for equipment and personnel.
Neutral wires play a crucial role in limiting electromagnetic interferences (EMI), achieving electrical standards compliance as well as maintaining system stabilty during transients or asymmetrical loading. The neutral wire acts to build up dangerous voltages ensuring safe operation of the electrical system. All these make the neutral very important in modern electrical installations.
The Role of the Ground Wire in Transformer Safety
The ground wire provides a direct path for fault currents to safely travel to Earth, ensuring the safety and reliability of transformer systems. It protects the possibility of electrical shocks, equipment damage, or even fires from insulation failures or live wires. Grounding also helps stabilize the voltage by neutralizing unwanted electrical surges caused by lightning or when switches are operated, thus, reducing the risk to the transformer and other equipment.
Grounding additionally improves the overall efficacy and response time of protective devices such as relays and circuit breakers by enabling them to quickly detect fault conditions. An effective grounding system is vital because it ensures that fault currents flow freely which in turn allows protective devices to respond quickly and helps minimize harm to the personnel and systems.
Lastly, the ground wire is essential in reducing electromagnetic interference (EMI) within the transformer system. By ensuring proper dissipation of stray currents and maintaining system stability, ground wire guarantees compliance with industry standards thereby reducing operational risks. From these functions, the ground wire is very important in the safety of transformers and their operational efficiency.
How Neutral Grounding Prevents Overvoltage and Other Issues
Neutral grounding is a critical aspect of electrical systems which keeps the network safe and stable. It reduces the magnitude of overvoltage during fault conditions like line-to-ground faults, by connecting either a transformer or generator to the ground. This practice helps reduce the chances of damage to the insulation, the equipment, and even aids in decreasing the operational downtime.
Grounded neutrals minimizes the response time of protective apparatus like circuit breakers or relays, allowing them to activate quickly during fault currents. This responsive mechanism aids in rapid isolation of faults that could stretch system dependence. Additionally, when overvoltage is caused, sensitive devices are protected from extreme surges, increasing the chances of no damage being done to any devices.
Neutral grounding provides safer conditions from dangerous buildups of overvoltages resulting from lightning strikes or switching surges. It provides a point of reference that stabilizes the voltage under normal functioning conditions while also helping mitigate phase imbalances. This neutrality stricken benefits both power quality and the safe operation of all connected equipment.
To summarize, neutral grounding equips electrical systems with safe protection from overvoltage, improves fault detection, and protects personnel and equipment from danger zones whilst increasing integrity and efficiency.
Why is Neutral Grounding Essential for Transformer Safety?
Grounding in a neutral manner is crucial for transformer safety since it provides a pathway for fault current to flow, which helps limit damage to equipment and increases the speed of fault clearance. It also ensures the electric system’s proper functionality by controlling the voltage, hence, reducing the chances of overvoltage scenarios. Simultaneously, it stabilizes phase voltages while avoiding great overvoltages that may be the result of lightning bolts or switch surge faults. Such measures guarantee the personnel’s operational safety together with efficiency in the long term when using the transformer.
Understanding Ground Fault Protection in Power Systems
Ground fault protection is one of the most important safety devices in power systems intended for the detection and interruption of ground faults. These include faults path that goes directly to ground or to some conductive parts of the equipment. Such faults normally occur because of breakdown of insulation, inadvertent touching, and other environmental factors. Without proper protection, ground faults can lead to severe damage to the equipment, safety risk, as well prolonged outages of the system.
Such protection devices are applied to constantly measure the electrical systems for overcurrent within the neutral line and between the phase and neutral. Upon detection of a ground fault, a protection unit such as a circuit breaker or a relay is activated to disconnect selectively the faulty portion of the system. Apart from the aforementioned system methods of ground fault detection could include zero-sequence current transformers, residual current monitoring, and system grounding techniques. Proper implementation minimizes fault energy, improves fault clearance time, and ensures personnel safety.
The appropriate method of ground fault protection is largely determined by the system’s configuration, load properties, and operational needs. Low-resistance grounding, for example, is used on industrial systems because it limits or controls the magnitude of fault currents. On the other hand, high-resistance grounding is mostly applicable on critical systems in order to avoid any downtime. The use of these techniques improves system performance, ensures safety compliance and extends the lifespan of the equipment.
Preventing Electric Shock and Short Circuit Scenarios
Preventing electric shocks requires uses of technology and adherence to safety measures: insulation of wires, application of grounded outlets, and the use of GFCIs greatly reduce the risk of electric shocks. GFCIs cut off power supply when current leakage is detected. Regular equipment maintenance is also important to safety enhancements as this ensures compliance with safety standards, such as UL certification.
In the case of short circuit prevention, a sound system design along with effective maintenance is a prime requirement. Critical components for preventing short circuits include circuit breakers and fuses to control the electrical load thresholds, properly rated loose wires, and overused electrical connections. Controlling the power demands, along with effective extremely high-temperature scans and prevention measures can eliminate trouble spots and greatly reduce the chances of circuitry failure. If combined with useful personnel training, these policies ensure system and operational effectiveness while eliminating system failures.
Mitigating Fault Current with Proper Grounding Techniques
Effective grounding techniques help to reduce the level of fault current. Such measures are critical for ensuring the safety of personnel and the reliability of the system. Grounding provides a low-resistance path for fault currents to flow into the earth, thereby minimizing the risks of electric shocks, equipment damage, or fires. Some of the key methods include the use of ground rods, plates, or mats which are made to ensure the ground is stable and balanced. Proper bonding of all the conductive elements and connecting them to the earth helps to establish equipotentiality which minimizes the voltage differences during fault conditions. Regular ground resistance measurement tests using special tools are paramount to ensure the effectiveness of grounding systems and the detection of any degradation over a while.
Modern systems also take advantage of additional features such as ground-fault relays, which help to sense and disconnect fault currents before they develop. Compliance with other ground fault current interruption measures should also be done like the NEC or the IEEE standards. These standards set limits on the resistance values that may be used and provide the installation requirements for appropriate grounding. Reliable records, regular examinations, and good training of the personnel guarantee the efficiency of such systems which helps to ensure the grounding measures do not fail and people and systems are protected.
How Does the Ground and Neutral System Work in Transformers?
The neutral and ground system in transformers aims at electrical safety and system security by ensuring a fault current path is established and voltage balance is sustained. The grounding transformer has its neutral point usually connected to the neutral system to create a low-impedance path for the return of the fault current to the source. This connection allows the operation of overcurrent protective devices such as circuit breakers during faults. Moreover, grounding of neutral helps to stabilize the system by reducing the level of voltage fluctuation due to an imbalance in the loads or external surge. The system is designed to meet the regulatory requirements, which enhances system efficiency and protects the personnel.
Connecting the Neutral to Ground Safely and Effectively
Connecting neutral to the ground is essential to the safety and effectiveness of electrical operations. This linkage is commonly made in one place only, at the main electrical panel or at the transformer, to avoid undesired circulation of currents and grounding loops. Conductors of a certain gauge, as set by standards such as the NEC in the US, must be used to deal with possible faulty currents.
The neutral-to-ground connections allow for overcurrent protection devices such as breakers or fuses to activate swiftly during faults. In addition, it helps to equalize the voltages while bringing the potential of the system to earth ground which will lessen the influence of lightning or other external surges. Also, effective grounding conductors and connections must meet safety requirements which is why regulatory compliance and routine inspections are necessary. Like all upgrades, these designs should follow local standards for codes, zoning, and permits to protect human life and defend equipment.
The Importance of Transformer Grounding in Power Distribution
Transformer grounding remains crucial in power distribution systems as it serves a plethora of technical and safety functions. A properly grounded system voltage reference point mitigates the chances of equipment failure and system reliability is improved. The transformer’s neutral point, when grounded, allows for effective fault current circulation, and the earth directs energy towards ground. This proactive approach permits the use of protective devices such as circuit breakers to quickly isolate faults, which reduces hazards.
Transformers also assist in protecting electrical equipment and preserving the stability of operational functions. Furthermore, lightning and surge overvoltages are also mitigated efficiently. Apart from this, grounding of the transformer also serves for compliance with numerous industry standards such as the IEEE and NEC that require the installation of specially grounded systems to control fault conditions while ensuring personnel safety. Incorporating appropriate grounded practices alongside inspections enables power distribution systems to work effectively and ensure the safety of the structure and people from electrical dangers.
Understanding the Neutral Point of the Transformer and Its Function
In a transformer, the neutral point is invaluable for the effective management of power distribution systems, as it ensures that there is always a stable return path for currents as well as enhancing the management of faults. The primary purpose of this is to enable the system around which the transformer’s windings are constructed to serve as a reference for balanced voltage levels which makes sure that the phase-to-phase and phase-to-neutral voltages are measured accurately. This helps to improve the overall reliability of the system and also assists in voltage regulation under normal and fault conditions.
Connecting the neutral point to earth is highly recommended, especially in the case of three-phase systems. This connection helps in dissipating fault currents to the earth, thus avoiding the possibility of destructive overvoltages on the system, thereby protecting equipment. Moreover, the neutral point enables the separation of circuits during faults, thereby enabling the efficient operation of protective devices like relays and breakers. Such positioning maximizes safety. It protects machinery and devices from insulation breaking down, which causes arcing and equipment failure.
Good practices, such as those defined in IEEE, NEC, and IEC standard documents, should be adhered to for effective operational continuity. With a well-organized maintenance schedule for transformers, the neutral point risks can be properly managed and ensure compliance with predetermined standards. This blend of foresight and technical installation design ensures that equipment and people are protected while preserving the operational continuity in dense environments.
What Are the Different Methods of Neutral Grounding?
Neutral grounding methods are categorized based on the degree of connection between the system’s neutral point and the ground. The primary methods include:
- Solid Grounding: This involves directly connecting the neutral point to the ground without any impedance. It limits overvoltages and ensures efficient operation of protective devices but may result in higher fault currents.
- Resistance Grounding: A resistor is inserted between the neutral point and the ground to limit fault current while reducing potential damage to equipment. This method is used for medium-voltage systems.
- Reactance Grounding: A reactor is used between the neutral and the ground, providing controlled fault current levels and minimizing transient overvoltages. This method is suitable mainly for higher voltage systems.
- Ungrounded System: The neutral point is not directly connected to the ground, relying on system capacitance to determine the fault path. While this minimizes current during ground faults, it risks sustained overvoltages.
- Peterson Coil Grounding (Arc Suppression Coil): By employing an inductive coil tuned to match the system’s capacitance, this method minimizes arcing faults’ impact and is particularly beneficial in mixed-load networks.
Each method is chosen based on system requirements, voltage level, and network stability considerations, ensuring efficiency and safety in power distribution.

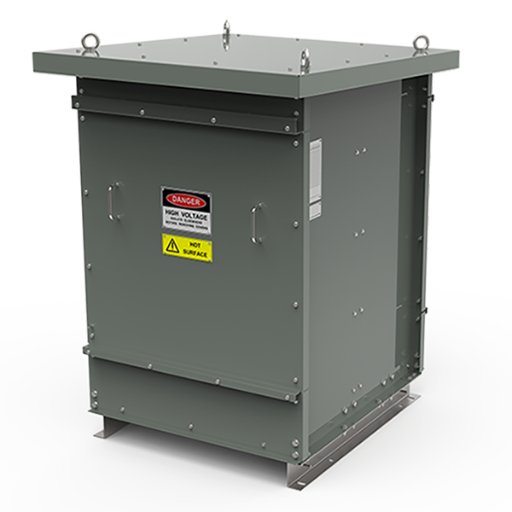

Exploring the Use of a Grounding Resistor in Transformers
The integration of grounding resistors in transformers is of utmost importance to electrical systems since it keeps the ground-fault current at safer levels. This inhibited level of ground-fault current helps to limit the amount of equipment damage that can be sustained, Fire hazards are diminished and, operational safety is enhanced. Besides these, grounding resistors also help in system stabilization by reducing the effects of overvoltages that occur during grounding faults.
From an application point of view, grounding resistors are extensively used in medium and high voltage systems, which otherwise, would result in very high fault currents if used through direct grounding. By placing a resistor in the grounding path which is normally done through the transformer neutral to ground terminal, a compromise is achieved between continuity of service and isolation of the fault. This method helps to meet industrial regulations, improves protective relay coordination, and provides more service life for the insulation systems.
Also, the value of the resistance chosen limits the magnitude of the fault current. High-resistance grounding (HRG) works great on systems that cannot be out of service, like on industrial sites because it helps mitigate the system too without tripping too many heretofore uncontrolled faults. By helping enhance safety and operational continuity at the same time, grounding resistors are an effective means of modern power distribution systems.
Advantages of Ungrounded vs. Grounded Systems
Single Line to Ground Faults (SLGF) have always been a major concern for almost all systems, however, ungrounded systems do possess a unique advantage. Ungrounded systems provide the ability to operate even when an SLGF occurs since there is no direct path to ground, and these systems produce a lower amount of fault currents during overvoltages. This diminishes the capacity for damage to various types of equipment, such as transformers or other electrical systems, but does increase the need for maintenance. Because incipient arcs can cause overvoltages, ungrounded systems will always be at risk for system imbalance. But as mentioned before, the ability to prolong system use will always be favorable, especially in sensitive tasks or systems used in industrial manufacturing and critical systems.
Like most systems, grounded systems also have their pros and cons. One of the advantages that these systems, particularly low-resistance and high-resistance ones, utilize is system safety. Because overvoltages can be hazardous, grounded systems retain the ability to provide controlled fault currents, which reduces the chance of voltage spikes and- in the case where fault conditions do occur- enables rapid detection and isolation of the issue for personnel safety while minimizing damage to equipment. Best practices in power distribution management concerning fault current containment, surge protection, and system safety are the priorities where grounded systems are widely accepted.
Implementing a Reliable Grounding Path for Safety
For the proper function of the electrical system, for the protection of facilities equipment, and the safety of people against electric shocks, proper grounding arrangements are required. Grounding paths provide a way of safely guiding fault current to a safe point on the ground, thereby reducing the possibility of injury or destruction to the equipment. Good grounding practice must adhere to the prescribed requirements such as those from the National Electric Code or NEC or the IEEE.
The steps necessary for implementing a reliable grounding path include creating a reliable bond between the system neutral point and ground, the use of appropriate-sized grounding conductors, and regular maintenance and testing of grounding components. The resistance values of grounding systems should be calculated carefully to ensure the optimization of fault current control without compromising system productivity or increasing arc flash potential. Additionally, it increases safety and minimizes downtime in critical environments by using high-resistance grounding augmented with other grounding systems The goal is greater safety and less downtime.
New methods use new sophisticated monitoring systems to evaluate the condition of the grounding system all the time. This makes it possible to detect possible faults long before they happen, increases operational reliability, and makes it easier to adhere to safety measures. A strong grounding path can be achieved by integrating design accuracy, safety compliance, and periodic maintenance, increasing system, and personnel safety within an industrial or commercial electrical framework.
How to Ensure Proper Transformer Grounding?
To begin, select an efficient grounding technique relevant to the system, be it solid grounding, resistance grounding, or impedance grounding. After this, measure the soil resistivity for designing an effective grounding grid that would guarantee low impedance paths for safely dissipating the fault currents. Furthermore, utilize spacer electrodes, such as rods or plates, that have been well maintained and installed at an adequate depth to minimize resistance. In addition, bond all parts of the transformer, including the neutral point of the winding bus, to the grounding system properly to eliminate any potentially hazardous differences. Use modern monitoring systems to regularly inspect the ground connections for continuity and resistance and resolve any flagged issues as fast as possible. Remember to adhere to NEC and IEEE standards to remain compliant and ensure operational safety.
Best Practices for Connecting the Grounding System
- Secure Connections: Ensure all grounding connections are mechanically robust and free from corrosion or contamination. Use appropriate connectors and clamps designed to endure environmental conditions and maintain long-term reliability.
- Minimize Resistance: Optimize conductor size and type to reduce resistance in the grounding path. Copper is widely recommended due to its superior conductivity and durability. Verify that all connections are clean and tightly bonded to achieve minimal impedance.
- Follow Layout Standards: Design the grounding system to adhere to established standards, like IEEE 80 and NEC Article 250. Grounding grids should be installed with appropriate spacing to distribute fault currents efficiently and avoid thermal overload.
- Testing and Monitoring: Regularly perform tests, such as fall-of-potential or clamp-on resistance measurements, to ensure the grounding system maintains adequate performance. Employ continuous monitoring systems for real-time detection of degradation or anomalies.
- Bonding All Components: Bond all interconnected metallic parts, including transformer structures, neutral points, and enclosures, to eliminate differences in electrical potential. This prevents circulating currents and enhances overall system safety.
By implementing these practices, the grounding system will achieve greater safety, reliability, and compliance with applicable electrical standards.
Maintaining Normal Operation with Effective Grounding
Effective grounding is essential for ensuring both the safety and continuous operation of electrical systems. To maintain normal operation, it is critical to follow core principles that optimize grounding system performance:
- Minimizing Ground Resistance: The primary goal is to achieve a low-resistance path to ground, ideally below 5 ohms for most electrical systems. This minimizes the risk of overheating, equipment damage, or disruption caused by transient voltages or fault currents. Soil resistivity testing and enhancement techniques, such as adding conductive backfill or deeper ground rods, are effective ways to achieve this.
- Implementation of Redundancy: Grounding systems should have redundancy to provide alternative current paths in the event of equipment failure. This is achieved by designing grounding grids with multiple interconnected electrodes and conductors, ensuring system reliability even during high-fault events.
- Integration with Surge Protection Systems: To handle transient overvoltages, such as those caused by lightning strikes or switching surges, grounding systems must work in tandem with surge protectors. These devices channel excess energy safely to the earth, protecting sensitive equipment and maintaining system stability.
- Inspection and Preventive Maintenance: Conduct routine inspections and maintenance, such as verifying connections, checking for corrosion, and testing ground resistance frequently. Monitoring advancements, like online systems, also provide real-time insights to detect abnormalities and trigger corrective actions quickly.
By combining these strategies, facilities can prevent interruptions, protect equipment, and comply with operational standards across varying electrical environments.
Understanding the NEC Regulations for Grounding Systems
The National Electrical Code (NEC) provides comprehensive guidelines for grounding systems to ensure safety, performance, and code compliance in electrical installations. Below are the key elements outlined by the NEC for grounding systems:
- Grounding Electrode System (Article 250.50): The NEC mandates the use of specific grounding electrodes, such as ground rods, metal water pipes, or building foundation components, to create a reliable connection to the earth. All accessible electrodes at a site must be bonded together to form a unified grounding system.
- Connection Requirements (Article 250.64): Grounding conductors must be installed with proper protection against physical damage and follow strict sizing guidelines based on the current carrying capacity of the system. Conductors must also be securely bonded to eliminate resistive connections.
- Bonding Conductors and Jumpers (Article 250.102): Proper bonding is essential to ensure low-impedance paths to facilitate the flow of fault current. All non-current-carrying conductive materials, such as enclosures and piping systems, must be bonded to reduce the risk of electric shock or fire hazards.
- Grounding for Equipment Protection (Article 250.4): Equipment grounding is required to prevent dangerous voltages on enclosures and to provide a pathway for fault currents. This includes grounding for electrical panels, switchgear, and devices connected to branch circuits.
- Ground Resistance Testing (Recommended per NEC): While NEC does not set a specific value for ground resistance, it emphasizes the importance of achieving low earth resistance to ensure system performance. Industry standards recommend maintaining resistance below 25 ohms for better efficiency.
- Supplemental Grounding Conductors (Article 250.53): Where necessary, supplemental grounding electrodes must be installed to meet resistance requirements, ensuring additional safety margins.
By adhering to the NEC’s detailed grounding system requirements, facilities can mitigate electrical hazards, enhance system reliability, and comply with local and national safety codes. It is crucial to regularly reference the latest NEC updates for precise implementation and adjustments in grounding designs.
References
Frequently Asked Questions (FAQ)
Q: What is transformer neutral grounding and why is it important in power systems?
A: Transformer neutral grounding refers to the method of connecting the neutral wire of a power transformer to the ground. It is crucial for ensuring safety, enhancing fault detection, and protecting electrical equipment from damage. Proper grounding helps manage voltage levels, prevents equipment damage, and reduces the risk of electric shock.
Q: How does neutral grounding affect the voltage levels in a power transformer?
A: Neutral grounding stabilizes voltage levels in a power transformer by providing a reference point for the voltage. This helps in maintaining consistent voltage levels across the system, preventing overvoltage situations and ensuring the safe operation of electrical equipment.
Q: What role does the neutral wire play in transformer systems?
A: The neutral wire in transformer systems serves as a return path for current and plays a key role in the grounding and bonding process. It helps in balancing the voltage, ensuring the proper functioning of the transformer, and reducing the risk of equipment damage and electric shock.
Q: What are the risks associated with improper grounding of transformer neutrals?
A: Improper grounding of transformer neutrals can lead to serious risks such as equipment damage, overvoltage, resonance overvoltage, and increased risk of electric shock. It can also hinder fault detection and lead to non-compliance with national electrical codes.
Q: Why is low impedance important in neutral grounding?
A: Low impedance in neutral grounding is important because it facilitates the easy flow of fault currents to the ground, ensuring quick fault detection and operation of protective devices like breakers. This minimizes the potential for overheating and equipment damage.
Q: How do grounding and bonding enhance the safety of power systems?
A: Grounding and bonding enhance the safety of power systems by providing a safe path for fault currents, reducing the risk of electric shock, and ensuring the proper operation of protective devices. They help in maintaining system stability and prevent equipment damage caused by voltage fluctuations.
Q: What is the difference between a single-phase and a three-phase transformer in terms of neutral grounding?
A: In a single-phase transformer, the neutral wire is typically grounded directly to the earth, providing a return path for current. In a three-phase transformer, the neutral grounding can be more complex, often involving grounding resistors or reactors to manage fault currents and maintain system stability.
Q: How does neutral grounding contribute to compliance with electrical codes?
A: Neutral grounding ensures compliance with national electrical codes by providing a safe and effective grounding system. It helps in meeting the requirements for system bonding, fault detection, and protection against overvoltage, which are essential for the safe operation of electrical systems.
Q: What are the potential consequences if a fault occurs and the neutral is not properly grounded?
A: If a fault occurs and the neutral is not properly grounded, it can lead to equipment damage, increased risk of electric shock, and system instability. Fault currents may not be effectively managed, leading to overheating, non-operation of protective devices, and possible violation of electrical codes.
