For engineers who deal with power systems, electrical power ratings are critical. They have to deal with numerous technical terms one of them being MVA which means “Mega Volt-Amperes”. MVA is an important unit for measuring apparent power in electrical engineering and is useable when constructing and running big electrical equipment like power transformers generators and power distribution systems. However, the role and significance of MVA are often misunderstood hence the confusion with other measurements of power such as real power which is denoted in MW and reactive power which is measured in MVAR.
The goal of this blog is to explain why MVA is used in power systems through its definition, how it is used, and how it relates to other electrical power ratings. This article will explain these concepts and provide practical applications of the principles where there have been problems in understanding the fundamentals so that the reader will not remain stranded in the world of power evidenced by MVA. Everyone who would want to have a better knowledge of MVA and its relation and significance to electrical engineering from students to practicing electrical engineers should read this MPM post as it would help them understand more about the mentioned concepts.
What does MVA mean in electrical terms?
MVA is known as Mega Volt-Ampere which is an electrical measurement unit of apparent power in the systems. The apparent power defines the system as a combination of real power which in this case is measured in watts and the reactive power which is measured in volt-amperes reactive or var in an alternating current (AC) circuit. MVA gives the rating for all electrical appliances including power transformers and power generators which have power ratings without any distinctions of active or reactive power loaded into them. It is an important factor in engineering and power network activities, guaranteeing that the connected devices are designed and used within tolerable limits to be safe and efficient.
Definition of MVA in power systems
MVA, or Mega Volt-Amperes is a unit of measurement for the system’s apparent power’s transmittable capability. Apparent power is the total power which is the combination of real power which is the usable power that performs work and reactive power which is power that oscillates between the source and load because of inductive or capacitive elements. So the importance of MVA is that it is a number used for guiding limits on the system voltage or bus substation or generator. It allows engineers to define voltage levels at which equipment e.g. transformers and generators or substations can operate without being overloaded. With regards to MVA, Kw usage encompasses a wider scope of the system adding reactive components for active and helping a lot during fault of the system studies, system optimization and ensuring high reliability of the power networks. Does MVA matter? It does in the sense that it prevents overloading, improves the stability of the system, and increases effectiveness in the transmission of electricity across complicated electrical grids.
Relationship between MVA, MW, and MVAR
When examining how MVA, MW, and MVAR interact, it is important to consider their functions on the power grid. Thus, MVA (Megal Volt-Amperes) is the total power available in the system for both active and reactive and what is the active power (MW) which is work, as well as the MVAR (Mega Volt-Amperes Reactive) a quantity of power that is needed for the transfer of work in the system, that is mainly voltage.
These components, at the same time, have a mathematical relation through the power triangle, wherein MVA forms the hypotenuse; MW, the adjacent side; and MVAR, the opposite side. This relationship can be stated in terms of the Pythagorean theorem as MVA squared equals MW squared plus MVAR squared. Thus, this equation enables us to define any one of the three quantities if the other two are provided. This is important in the proper electrical design of power systems whereby appropriate components are selected as well as the stability of the grid.
Importance of MVA in electrical engineering
MVA or Megavolt Amperes is an important measurement unit in the electrical engineering sector with its main use being in defining the apparent power on a particular system. It is also a good metric to consider when determining the size of a transformer, generator or any other power system. According to distinct classifications, there are two types of power apparent and MW. While the former provides the necessary levels of voltage for effective stability within the system, the latter does the work. With this kind of information in mind, engineers will be able to determine how far electrical or thermal limits are within the range of given equipment and effective measures will be put in place to avoid overloads and general ineffectiveness.
Key Technical Parameters:
Real Power (MW): This particular aspect talks about the amount of power consumed by given input devices or how much of it is being transferred through the entire system.
Reactive Power (MVAR): It is very essential in maintaining voltage balance within a system depending on whether the system is inductive or has capacitive properties.
Power Factor (PF): It is defined as the ratio of MW to MVA. The more the figure of the power RC given Power Factor the more efficient the system is since the losses are at a more minimal level.
Transformer Base Rating (MVA): It is the measure of apparent power, which is equivalent to times maximum current and voltage, to which the transformer may be operated without overheating.
Fault Current Calculations: too much MVA might result in overloads thus it is crucial in this situation in assisting to rate out the protective apparatus efficiently.
With correct analysis of these attributes the optimization of the system, its reliability as well as the general quality across different components of the system will be assured and maintained for long periods.
How is MVA different from MW and kVA?
MVA– Mega Volt Amperes, MW– Mega Watts and kVA– Kilo Volt Amperes are all power related terms but they do not have the same significance. MVA stands for the total power that exists in the system composed of both real and reactive powers (the real being expressed in MW). MW values the real or Active power which is the work done or consumed. In contrast, kVA is however a smaller unit when compared to MVA as 1 MVA is 1000 kVA units. The difference here is in their conception: MVA and kV. As are aimed at total electric capacity, whereas, MW is aimed only at the energy component used for purposes, excluding such components as reactive power.
Comparing MVA, MW, and kVA units
It is crucial to highlight the particular role that the various units within the power systems. When megavolt-amperes (MVA) are mentioned, they indicate the apparent power and this contains MW and the reactive power within a system. As this is the case, it is fair to note that providing energy is two concepts that apply when talking about MW. In this instance, it is worth noting that kVA (kilo-volt-amperes) is a smaller unit also used to measure kVA power apparent, where 1MVA is the same as 1,000-kVA power. MVA and kVA stand more for the total power of the system along with its capacity while MW on the other hand is talking about the total active power which is able and usable for doing certain works out of the total energy delivered.
Understanding apparent, active, and reactive power
In discussing active power (light power), with the use of MVA/MVA units magnetic power and light power are referenced alongside reactive power in the system. Furthermore, apparent power on its own is a combination of both active and reactive power and presents theoretical power in a system. In contrast,t real power is usually measured in MW and is the aggregate of energy that does the work or gives light but avoids including the total energy which may include losses from operating machinery like induction motors.
From engineering, basic parameters also consider and define the term the power factor which is the ratio of active power (MW) over apparent power (MVA) that shows a measure of efficiency. In relation, the closer the power factor is to 1, the better the energy efficiency is in the operating system where power losses are minimized. For instance, there are relevant equations such as ‘S² = P² + Q²’ that can be incorporated into the system analyses of tackling A, P, and R alongside others on S.
When to use MVA vs. MW in power calculations
Within the scope of analyzing the power system parameters, the use of MVA (megavolt-amperes) or MW (megawatts) is context dependent. MW equates to the amount of work done and active power, or the amount of energy utilized by the load in its full capacity which is most appropriate considering energy losses, expenses and load requirements.
While taking account of the definition of MVA it is evident that it is rarely used as an active measure since it stands for the total composite measure of power being delivered which is composed of both “real”(MW) and “reactive” (MVAr) power. This argument raises an interesting counterpoint in the sense that it can be predominantly used for system design, equipment consideration as well and capacity planning as it considers the actual power and reactive power requirements to conveniently define the approximate measure of the overall power supplied by the system.
Some technical parameters to take into account are outlined below:
Active Power (P): This is measured in MW and can be defined as P = S × PF, where PF is the power factor.
Apparent Power (S): This is measured in MVA and can be defined as S = √(P² + Q²).
Reactive Power (Q): This is measured in MVAr and is the product of either inductive or capacitive power.
Power Factor (PF): This is a non-physical quantity that can be calculated as PF = P/S, its ideal value is achieved at 1 or ranges between 0 and 1.
The choice between MVA or MW comes down to total power capability measures (MVA), or the actual energy consumed and utilized (MW).

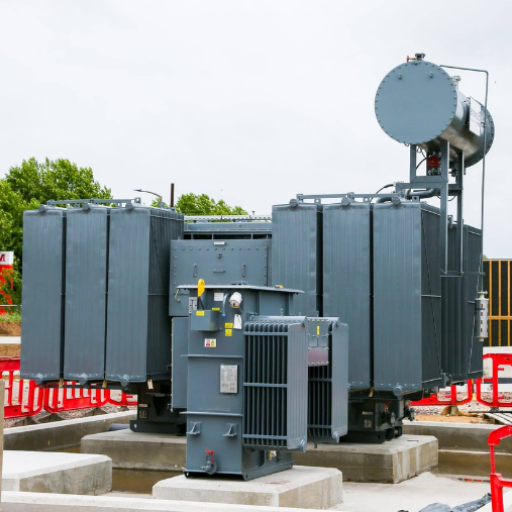

What is the significance of MVA rating in transformers?
Incorrectly, sometimes such parameters are called MVA and even kVA. The transformer’s rating in MVA is a very significant parameter that describes the apparent power of the transformer which could be transferred without being operated at temperatures beyond its design limit. This is so because it bears a direct relationship with the ability of the transformer to transfer electric power during use. Imposing the MVA rating makes it possible to size the transformer for the load it is intended to serve to prevent under or overloading. In addition, the MVA rating assists in establishing the adequacy of the transformer to mesh within the voltage and current levels required by the system, thereby enabling an effective and reliable power supply.
Interpreting transformer nameplate ratings
In my view, ‘transformer application’ has a peculiar touch that is bolstered by a hierarchy of ratings; hence, it goes without a doubt that when interpreting transformer nameplate ratings, I focus only on key parameters so that the application and integration conform. In the first place, I check whether the primary and secondary voltage ‘ratios’ are by the specification. Secondly, I observe the MVA (or kVA) rating to make sure that the transformer is capable of supporting operational loads without exceeding the design capacity. Concerning the impeding effect, I also look at the percentage impedance as it is important information for determining the fault currents as well as the changing influence of the transformer on the power augmentation system that ought to be maintained. There are other important factors to consider such as ‘vector group designation’ which informs the phase shifting and winding arrangement, coupled with ‘cooling class’ which shows how the oil-immersed transformer vents heat out during its course of work. I approach these particulars with concern so that the transformer in question performs its required functional changes and is optimally embedded into the electric network and supply system.
MVA capacity and transformer loading
MVA stands for Mega Volt Ampere. It refers to the amount of power that a transformer can handle without exceeding its thermal or mechanical limit. It is essential to define the operating parameters of the transformer and ensure that the equipment can withstand peak loads without sustaining damage. A satisfactory loading of a transformer consists of assessing the load to the actual load on the transformer. Transformers not fully loaded are supposed to work within 70 to 80 percent of the transformer’s rated capacity continuously to increase efficiency and ensure that overheating does not occur which limits the lifetime of the transformer.
Equally important when calculating loading are temperature, cooling class, load type (e.g., resistive, inductive, or capacitive) and conditions. Moreover, such parameters of siege necessity as overload capacities should also be taken into consideration, following the operation within the limits of short time loading performance as stipulated by the IEC or IEEE. Reliable loading estimates will prevent such problems as excessive losses not consistent with positive voltage, excessive dips, or insulation failure, and maintain reasonable performance of the transformer integrated into the electric power system.
Impact of power factor on transformer MVA rating
The power factor is very crucial for effectively utilizing the output of a transformer since it determines the ratio of one form of power (real) kW to another form of power (apparent) kVA. A lower power factor indicates that a greater amount of apparent power is necessary to grid the same level of real power which means the MVA loading on the transformer has intensified. This happens because of the active and reactive power flow in the transformer. Therefore, low power factor operation is disadvantageous in that it may require higher currents and thus moisture losses are increased resulting in reduced efficiency and life span of the transformer. The transformer might be operating optimally, but using and adjusting the power factor helps to balance out the strain on the system.
How do you calculate MVA in electrical systems?
For MVA (Mega Volt-Amperes ) in the electric systems, the equations take the following form:
MVA = ( V x I ) / 1,000,000
Where voltage is usually in volts (V) and a current in Amperes (A). In the case of three-phase systems, it is necessary to take into account the system’s configuration to determine a generalized3 phase formula:
MVA = sqrt(3) * (Voltage * Current) / 1,000,000.
When calculating three-phase systems, it is important to use line-to-line voltage. The value attained is the apparent power of the system.
MVA calculation formula and examples
To get better insights on how to calculate MVA in real-world scenarios, let us look at the formula and its examples in practice.
Single-Phase System Calculation.
For a single-phase electric power system, the apparent power (MVA) is computed as.
MVA = Voltage * Current / 1,000,000.
Example.
Let us assume that the single phase system operates at a potential difference of 240V and a current of 50A, then the MVA will be calculated as follows.
MVA = (240 * 50) / 1000000 = 0.012 MVA.
Three-Phase System Calculation.
The MVA estimation in the case of three-phase systems accounts for the line-to-line voltage using factor √3.
MVA = (√3 * Vline to line voltage * I current ) / 1,000,000.
Example.
Let us have a three-phase system with a line of 11000V and a current of 100A, applying the calculations we will have.
MVA = 1.905 MVA.
Additional Considerations.
When these calculations are carried out, accurately determining the line-to-line voltage and the current is crucial for computations to be precise. Such values are basic parameters that are helpful in the analysis of power systems since they assist engineers in creating systems that will not operate beyond certain values leading to loss optimization of efficiency.
Concerning the above formulas, it would then be appropriate to conclude that engineers would be able to ascertain the apparent power concerning either the single-phase system or the three-phase system to aid the planning of loads, the selection of transformers, as well as the optimization of systems.
Factors affecting MVA calculations
I will list some of the important factors which could affect MVA calculations in light of my understanding, as follows:
Line-to-Line Voltage Imbalance
The line-to-line MVA depends directly upon the measure of the line-to-line imbalance. Inappropriate input voltage could in turn result in unacceptable apparent power outputs as well, and thereby influence design systems and their performances.
Carrying Capacity Current
Equally very important is the accuracy of the current measurement. Measurement errors whether from instruments via induced measure or from the physical environment have the potential of making these calculations of MVA erroneous.
Power Factor – Sizing
The headroom between MVA and power factor is best illustrated in DDR where apparent power with its voltage rating MVA is the focus. The power factor supports and complements system planning and its use in MVA values in day analysis reactive power and capacity use efficiency has been self-managed.
Effects of Temperature on Conductors
Since the resistance of conductors through which current passes varies when the temperature is altered, this factor ranges from hot summer days to cold winter days When determining accurate values and pieces of information for these calculations, such distinct adjustments should be made in this case.
Variable Loads
In the worse MVA situations, or on the edge of stability demand does vary with MVA values rotting certainty, order or inflated, depending on the circumstances in question. Load forecasting would lessen the impact of the conciliation of these crimes and would, in any event, ameliorate matters.
These factors also support the claim that precision in measurements and the conditions of the system in use have to be accounted for when performing MVA calculations.
Tools and software for MVA calculations
Robust tools & software solutions for complex electrical parameters and system conditions are essential when calculating accurate MVA. Some of the widely used for MVA calculation tools include;
ETAP (Electrical Transient Analyzer Program)
ETAP is an electrical power system modeling, analysis and simulation software suite. It enables MVA calculation through load flow analysis, short-circuit analysis and power factor studies. Key parameters of relevance are;
System voltages and current ratings.
Load impedance.
MVA ratings of transformers and generators.
PowerWorld Simulator
This interactive software specializes in the simulation of electric power systems. PowerWorld helps to study system behavior and also assists in graphs trends of the data evaluated. It does so by applying MVA calculations which use such parameters as.
Bus voltages and angles.
Power flow limits.
Reactive and active power components.
PSCAD (Power System Computer Aided Design )
This software PSCAD is used in the study of detailed electrical systems transient analysis. It is possible to use it in the calculations of MVA in both steady state and dynamic conditions. Technical parameters utilized in PSCAD are, for instance:
Network topology and connection information
Electrical components as conductive resistance, inductance ,etc.
Dynamic load features.
These tools enhance accuracy through scenario-testing and dynamic updates, therefore also making MVA calculations easier. The type of software to be used differs with the size and complexity of the system, as well as the specific demands of the analysis.
Why is MVA important in power plant design?
MVA is an important measure for power plant construction since it will determine the types capacity and dimensions of the generators, transformers and other equipment. The calculations of MVA allow designing the plant in such a way that the plant will be able to accommodate the expected demand without being overloaded, thus guaranteeing reliability and efficiency. Furthermore, due to such MVA values, the system can perform short-circuit evaluation, system stability analysis and grid code compliance, thus it is important for performance and regulatory purposes. Adequate management of MVA also enhances future growth and integration of the system.
MVA considerations in generator sizing
At the MVA stage, while estimating generator sizes, I aim at setting a generator’s potential that is in equilibrium with the load, the working conditions and future load increases. Important parameters are obvious power (in MVA), power factor (usually 0.8 for many industry uses), and amount of load during the highest and the normal usage periods. Also, consider voltage level, withstand fault current and thermal limits in order not to exceed temperature limits and therefore to maintain reliability. Proper sizing also improves equipment utilization and avoids its underutilization or overloads thus enhancing performance and extending the life of the equipment.
Balancing MVA capacity with grid requirements
In balancing MVA capacity with grid requirements, my main interests are the compliance of voltage generators with grid codes and live operational conditions. This includes ensuring the thermal limits of the generator relate to both reactive and active power during steady state conditions or in the event of a sudden change in loading conditions. Ride-through for power system faults, harmonic distortion, and inertia supporting emulation must be observed. Further, I look at the terms of interconnection to ensure they do not conflict with the requirements of the RTO, which alleviates any constraints of transferring energy without compromising reliability and operational criteria. All this is designed to guarantee that the system is safe, easily extensible and regulatory approved.
MVA and power plant efficiency
MVA (Mega Volt Amperes) has a direct effect on the active/reactive power balance of a power plant and thus its efficiency. This optimal relationship guarantees minimum losses in energy and a maximum operation of the equipment’s capacity. The power factor, load profile and thermal limits are some of the dominant factors affecting the efficiency.
Power Factor (pf): The higher the power factor and the closer it is to 1.0 the better active power is provided and transmission losses are lower.
Recommended Range: 0.95 to 1.0 (leading or lagging depending on grid requirements).
Load Profile: Adapting the MVA rating capacity to the required thermal/electrical load needed by the plant reduces the stress applied to the equipment.
Peak Load Utilization Target: 80-90% of the total MVA capacity aims at margin safety and operating at optimal efficiency.
Thermal Limits: The excessive winding of transformers or generators does increase thermal losses.
Acceptable Equipment Loading Level: 85-95% of the available MVA rating of the steady operating state of a system is reached at this stage to avoid overheating.
When used together by altering these parameters and some evaluation of performance carried out in between, the performance of power plant operators can greatly improve while operating within set out grid measures and restraining pressure on the components of the system. Refining the MVA rating to growing needs and grid connection is one of the core features of a weight balanced work rate and sustainability of the target area.
References
Frequently Asked Questions (FAQ)
Q: What does MVA mean in electrical terms?
A: MVA stands for Mega Volt Amperes, which is a unit of apparent power used in electrical systems. It is the product of voltage and current and is often used to describe the power capacities of generators and transformers.
Q: How do you calculate the MVA in an electrical system?
A: To calculate the MVA, multiply the voltage (in kilovolts) by the current (in amperes) and then divide by 1,000 to convert to Mega Volt Amperes. This calculation often assumes a power factor is 1, especially in a purely resistive load.
Q: Why is MVA important in high voltage systems?
A: MVA is important in high voltage systems because it helps power companies and utilities determine the total electrical power transmission capacity of transformers and transmission lines, ensuring they can handle the required load efficiently.
Q: What is the difference between MVA and MW?
A: MVA measures apparent power, which includes both active and reactive power, whereas MW (Megawatts) measures only the active power. MVA is used when considering the total power, including any reactive load, which is significant in systems not operating at unity power factor.
Q: How do transformers with a rating in MVA work?
A: Transformers with a rating in MVA are designed to handle a specific amount of apparent power. This rating indicates the maximum power they can transfer between circuits under specified conditions without exceeding temperature limits, ensuring safe and efficient operation.
Q: Can MVA be used to measure power in a three-phase transformer?
A: Yes, MVA is commonly used to measure the power capacity of a three-phase transformer. In such cases, the total MVA is the sum of the apparent power in each phase, which is crucial for balancing loads and ensuring efficient power transmission.
Q: What role does MVA play in power stations?
A: In power stations, MVA is used to determine the capacity of generators and transformers to ensure they can handle the electrical demand. It helps in designing the layout and operation of power stations to optimize performance and reliability.
Q: Why do transformers come with MVA ratings instead of MW?
A: Transformers are rated in MVA rather than MW because they need to account for both active and reactive power. This ensures they can manage the total electrical load, including any reactive components like inductors and capacitors.
Q: How does the power factor affect the calculation of MVA?
A: Power factor affects the calculation of MVA by determining the ratio of active power to apparent power. With a power factor of 1 (unity power factor), all the power is active; otherwise, the presence of reactive loads such as capacitors or inductors will increase the MVA.
Q: What is the significance of having one MVA transformer in a utility system?
A: A one MVA transformer in a utility system signifies that it can handle one Mega Volt Ampere of apparent power, making it suitable for certain levels of power distribution and transmission. It ensures that the transformer can manage specific loads without overheating.
