Transformers have become ever more essential in the distribution of electrical systems as they are primary devices needed for voltage alteration and the distribution of electrical energy. Among the numerous transformer configurations, Delta to Wye conversion is arguably the most notable due to its practical merits and adaptability. In this discussion, we analyze the most important features of Delta to Wye transformer configuration, its principles of operation, and its advantages within electric power systems. This will deepen understanding about the power transmission and grid stability functionalities of the configuration, which is vital towards the commanding strength and resilience of grids. Versatile engineers as well as inquisitive learners will greatly appreciate the subsequent sections as they provide vivid exploration to this fundamental transformer design.
What is a and how does it function?
A Delta to Wye transformer operates by transforming electrical power between different configurations, where the primary is delta connected and the secondary is wye connected. The primary winding is in a delta configuration, or triangular, and the secondary winding is in wye configuration with neutral point or star. This allows power to achieve balanced distribution while creating stable neutral points. Moreover, it enables three-phase power systems to smooth electricity transmission, overcoming geographical limits while ensuring different electric systems can be used interchangeably. The combination of these features makes the Delta to Wye transformer critical for electrical grids.
What is a Delta to Wye Transformer Configuration and How Does it Function?
I can share that the Delta to Wye transformer configuration is one of the most critical designs within electrical power systems. In simple terms, this configuration transforms voltage by connecting the primary winding in Delta (triangle) and the secondary winding in Wye (star). The primary side Delta connection is perfectly designed for accommodating large currents with little phase shift, whereas the Wye connection on the secondary side has a neutral point which is ideal for safe and efficient power distribution. Not only does this configuration maintain reliable voltage transformation, but it also enables the conversion of three-phase systems to single-phase systems or vice versa if needed. This balance of functionality and practicality allows for the control of power across phases, harmonic mitigation, and grounding simplification through the Wye connection. Such balance of practicality and performance gives the reason why the Delta to Wye configuration is widely adopted in power distribution networks.
Understanding the basics of a Transformer
A transformer is an electrical apparatus that moves electrical energy from one or more circuits to another through electromagnetic induction. It can either step up voltage to maximize enduring long-distance transmission or reduce it to safe levels for local use. A transformer contains a primary winding, secondary coil, and magnetic core as its main components which allow energy transfer. Through voltage and current alteration, while maintaining energy loss at a minimum, transformers serve a major purpose globally by keeping power distribution systems efficient and reliable.
Exploring the connections
the particular interconnections in power distribution systems are closely related to transformers, transmission lines, and substations. A safe and dependable energy delivery system is achieved through the step-up and step-down processes of voltage delivery done by transformers. I have witnessed the consequences of inefficiency within a system and its far-reaching consequences within a network; costly downtimes. Through strategically designed and maintained systems, performance optimization becomes attainable, reliability is enhanced, and the everyday demands of consumers and industries are appropriately met.
Applications and Advantages of a Transformer
The applications of transformers range from power generation, transmission, and industrial activities to renewable energy systems, emphasizing their importance. In modern electricity grids, they are essential because they allow the efficient transfer of electrical energy over extended distances by minimizing losses. In addition, transformers are also used for voltage regulation, guaranteeing that power is reliably delivered to homes and businesses. Their benefits also incorporate increased energy efficiency, greater safety through circuit isolation, and adaptability to different sectoral voltage needs. Such dependability and economy make transformers the spine of versatile infrastructure circuits all over the world.

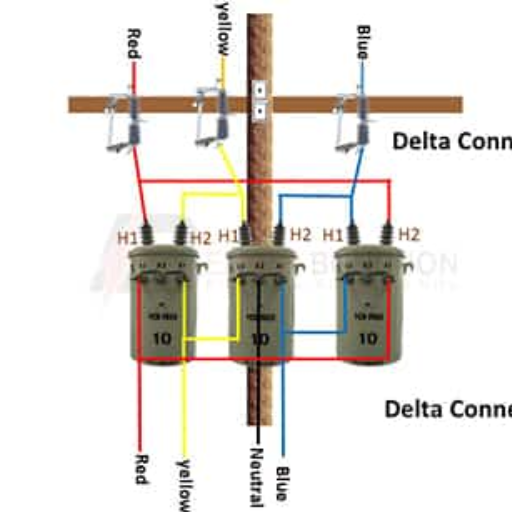

How does a work?
A transformer’s function is to transfer electric energy through two or more circuits using electromagnetic induction. In my perspective, it’s all about the primary and secondary windings in a transformer and how they interrelate. The primary winding alternates current which produces a magnetic field strong enough to induce a voltage in the secondary winding. The transformer does not connect the circuits electrically and still manages to increase or decrease voltage levels as needed. This method is effective and important to the reliable and safe power distribution in different systems. Much of today’s energy technologies are reliant on this technology because of its simplicity and efficiency.
Key features of a Transformer
- Voltage Transformation: The major function of a transformer is to raise (step-up) or lower (step-down) the voltage depending on the wishes of the electrical system in use. This flexibility allows for efficient power transmission and distribution.
- Electromagnetic Induction: Transformers work based on Faraday’s Law of Electromagnetic Induction which states that energy can be transferred from the primary to secondary windings without direct electrical contact being made.
- High Efficiency: Transformers are constructed to function at very low levels of energy loss, in many cases achieving levels of efficiency in the area of 99%. This efficiency is vital to reducing wasted energy in power networks.
- Durability and Reliability: Provided that there is a proper schedule of maintenance, failure of a transformer is unlikely. It has a long operational lifespan, performing seamlessly for decades. Its rugged construction provides for all electrical systems.
- Thermal Management: For the safe and efficient functioning of a transformer, even under heavy loads, they must be equipped with systems for cooling either oil or air to dissipate heat created during operation.
- Versatility: Adapting to many functions ranging from residential, commercial, and industrial, transformers are utilized in renewable energy systems, data centers, and also in the transportation infrastructure.
Today’s electricity extensions and their corresponding functions are significantly aided by transformers due to the seamless transmission of power they enable over extensive distances, easily powering diverse systems and devices.
The Process of Transformer Installation in a Setup
I would like to share some ideas with you on how different industries treat installation, utilization, and site evaluation of systems on and above grade level. It is easy for us to miss a step and blindly set a unit without any prior thoughts. In order to avoid such practices, we must begin with a site survey.
Weather conditions can directly affect the usability of a unit and during the site survey, factors like ventilation, access ways, and safety protocols should also be kept in mind. After preparing the site, the transformer should be moved in position ready to be placed with care so as not to damage it using manual or motorized cranes.
Mechanical and electrical interlocks should be carefully placed to prevent any possible removal. They must be more than adequately strong and compliant with the set subordinate legislation. At this stage, proper grounding should be executed lest the system suffers from faults and surges. To ensure dependability of the setup and its foresaid performance, long-term maintenance, multi-level stress testing, and peak power cycling should not be skipped.
Understanding the Role of Transformers in a System
Transformers are crucial parts of electrical apparatus, as they facilitate the effective transmission and distribution of electricity by modifying voltage levels for different uses. They reduce losses from energy expenditure in transmission, guarantee proper interfacing between various components of the system, and improve the safety and effectiveness of electric networks. Transformers also aid in stabilizing and operating the entire system by increasing or reducing voltages as the circumstances demand.
What are the differences between the configurations?
Experts in the industry say that the differences between Wye (Y) and Delta (Δ) configurations differ in their structure, performance and applications. A Wye configuration connects each phase to a neutral point, which creates both phase and line voltages. This arrangement is helpful for systems with two voltage level requirements and is often used in power distribution systems where neutral connections are required for single-phase loads.
Delta configuration, on the other hand, connects the phases in a closed loop without a neutral point. This design gives them greater reliability and uninterrupted function in the event of a missing phase, which makes it suitable for industrial applications where equipment demands higher currents. While Wye systems are more efficient for long distance transmission, Delta configurations excel in handling balanced loads and operating at peak performance in localized networks. Each configuration has advantages and disadvantages, which means that the selection should be tailored to the requirements of the system.
Structural differences in and windings
The Wye (Y) and Delta (Δ) windings have different structures based on their connection points. Wye windings have each coil connected to a neutral point that forms a “Y”, meaning both line to line and line to neutral voltages could be used on the coil. Delta windings are, however, end to end connected in a loop which has no neutral point forming a triangle. This difference has an impact on their operational characteristics such as the level of voltage, fault tolerance and flexibility of the load.
Impact on and in different configurations
The outcome on selecting either a Wye or Delta Configuration is fundamentally determined by the unique application in consideration and the desired results hinged on the configuration targeted. Wye configurations are particularly useful when higher levels of versatility are preferred as their neutral point allows the utilization of different voltage levels, making them optimal for connecting diverse residential and commercial loads. In contrast, Delta configurations are best in cases where there is a high reliability need and balanced load handling such as in industrial systems where equipment uptime is vital. Neutral Wye systems tend to have better fault management owing to their grounded neutral, but it is the isolated Delta systems or those set to optimize energy loss in distributed networks that bear witness to such setups. The choice is a matter of striking the right equilibrium between the system’s efficiency, safety requirements, and responsiveness to the load conditions.
Choosing between and for your needs
The selection of Wye or Delta configurations varies with an application’s unique criteria. Choose Wye if your system requires flexibility in voltage levels, better fault handling, or serves varied types of loads. On the other hand, Delta is the superior choice for high-reliability applications such as industrial settings where balanced loads and energy efficiency are highly valued. Review the system’s load profile, safety priorities, and operational preferences to make an educated decision.
Why and when is a conversion necessary?
a conversion becomes relevant when the current configuration of power equipment does not align with the requirements of the developing system. For example, shifting from Wye to Delta may apply when there is preference for efficiency and low transmission losses, as is often the case in rigidly controlled industrial systems. On the other hand, switching from Delta to Wye is often required when there are higher loads that require more safety and flexibility; Wye configurations are better at this because of the neutral ground. In the end, resolving issues such as load imbalances, future upgrades, or specific safety and efficiency requirements determines the conversion choice.
Benefits of Converting From Delta to Wye
The conversion from delta to wye has several notable advantages. One of the most important of these is safety, given that Wye configurations contain a grounded neutral that mitigates fault currents, therefore lowering the possibility of electric shocks. This configuration is also more suitable for systems with a greater number of voltage levels, which makes it useful for applications with complex load requirements. Moreover, wye configurations are best at managing fault tolerance and load balancing, thereby enabling smooth and dependable performance in systems with variable operational requirements. These considerations make it a more practical option for newer systems.
Benefits of Converting From Wye to Delta
Conversely, the shift from Wye to Delta can increase energy efficiency by reducing transmission losses in high-power networks. Delta Configurations can carry higher loads with lower currents, making them suitable for industrial applications where performance and longevity matter greatly. In addition, the lack of a grounded neutral simplifies some network designs and removes dangers related to grounding tenders. This conversion is especially beneficial when optimizing systems for operational efficiency, control, and structural robustness.
Steps involved in a transformation
both transforming from Delta to Wye and Wye to Delta, require precise planning, meticulous execution, and compliance with safety standards. Here is what I suggest:
- Assess the Current System Configuration
Begin with a comprehensive review of the current power system. Ascertain if the system is functioning in Delta or Wye configuration, and capture essential parameters such as load profiles, voltage magnitudes, and current measurements. This aids in understanding baseline performance while revealing inefficiencies, safety concerns, and other issues.
- Define Objectives for the Conversion
Clarify what you intend to attain with the transformation, outlining goals such as safety improvement, loss minimization, fault tolerance enhancement, or expansion accommodation. Establishing objectives enables the necessary operational outcomes from the change.
- Evaluate System Requirements
Analyze the equipment’s technical requirements. Some important parameters to look at are:
-
-
- Load Capacity: Confirm the new configuration can handle the load without placing undue stress on the system.
- Voltage Balance: Check that the change does enhance voltage stability or, at the very least, does not impede it.
- Safety Standards: Take into account the faults of the grounding requirement (Wye grounded neutral vs. ungrounded Delta) that affect neutral grounding.
- Energy Efficiency: Analyze whether the new configuration will increase losses due to resistance or unbalanced loads.
-
- Design the New Configuration
Following the steps collected, plan in detail the new configuration, including the selection of appropriate transformers, compatibility with circuit breakers, as well as connections for distribution. If applicable, use simulation tools to predict performance.
- Procure Necessary Equipment
Obtain the necessary equipment including transformers, cables, and protection devices. Check that the specifications align with design requirements and that all components comply with applicable standards.
- Implement the Conversion
Safely disconnect the existing setup while reducing the risk of a safety hazard. As per the planned design, install the new components ensuring that all connections are made according to electrical codes.
- Test and Validate
Conduct rigorous testing after the new configuration is completed. Check system measurements including voltage, load balance, and fault response to see if they are within acceptable ranges, and if not, address them in this phase.
- Monitor and Maintain the System
Post implementation, keep track of the monitored system’s performance continually. Set maintenance schedules to overcome any encountered issues and upkeep optimum output.
By executing these steps, you can facilitate the most accurate and seamless transformation process. It’s important not to overlook any detail, as having a clear comprehension of the constraints in question can decide whether you achieve the set results or have sustained operational efficiency.
Common challenges in conversions
It is my observation that one of the more challenging obstacles to overcome during any conversion process is dealing with unanticipated compatibility problems with newer and older components. Even with meticulous planning, there are often unexpected minor differences that need to be resolved on the fly. Another challenge is achieving the lowest possible system downtime. This is usually crucial in operationally critical systems and entails a complete level of timing and coordination. Finally, as with any system, striving to maximize its effectiveness while still adhering to industry regulations creates conflict. Having foreseen such problems together with back-up plans has always resulted in success in my career.
How do we enhance power distribution?
To improve the power distribution network, efficiency, reliability, and scalability optimization is required. Major approaches involve the application of smart grid technology that enables real-time monitoring, the use of advanced modern materials for infrastructure upgrades, supporting renewable energy sources, and system supply diversification. Furthermore, issued outage prevention measures, automated supervision and control systems, and maintenance analytics aid in uninterrupted energy supply delivery.
The role of power distribution in modern systems
power distribution is the underlying structure of contemporary systems and is crucial in meeting energy delivery requirements in real time. It assists in daily life and industry activities and supports multifaceted power integration (including renewables) without risking the stability of the grid. With newer technologies such as automation and real time monitoring, I can improve system efficiency and reduce the risk of disruptions. Power distribution is about much more than delivering energy. It is a dynamic process requiring constant adaptation: to demands, for sustainability, and to economic and technological development.
Optimizing with Configurations
The optimization of sophisticated configured power distribution systems makes the power systems design and operation more efficient by adjusting precise control for specified operational requirements. Specific design considerations, including looped or networked systems, enhance reliability and mitigate outage impacts while improving load balancing. Further, the incorporation of smart grid technologies, along with automated switches and adaptive control, guarantees optimal network performance during demand shifts while decreasing energy losses. These technologies allow for improved agility, resilience, and overall adaptability to changes in operational conditions within the power distribution framework.
Reference
- The Ultimate Guide to Delta Wye Transformer – A detailed explanation of Delta Wye transformer configurations and their applications.
- Delta vs. Wye Transformer Winding Configurations – A comparison of Delta and Wye configurations for power distribution.
- Three Phase Transformer Connections and Basics – Covers the basics of three-phase transformers, including Delta and Wye connections.
Frequently Asked Questions (FAQs)
Q: What is a delta-wye transformer?
A: A delta-wye transformer is a type of power transformer used for voltage transformation in a three-phase system. It features a delta winding configuration on the primary side and a wye winding configuration on the secondary side, enabling efficient phase distribution and voltage transformation.
Q: How does a delta-wye transformer differ from a wye-wye transformer?
A: A delta-wye transformer has a delta winding on the primary side and a wye winding on the secondary side, whereas a wye-wye transformer has a wye winding on both sides. This difference affects the phase shift and the way the neutral wire is used within the transformer system.
Q: Why is the delta-wye transformer configuration commonly used in power distribution?
A: The delta-wye configuration is favored for its ability to step up or step down voltages effectively while providing a stable neutral point. This makes it suitable for balanced 3-phase power distribution, reducing harmonics and providing a reliable supply line for various applications.
Q: What are the advantages of using a delta-wye transformer in a 3-phase system?
A: The delta-wye transformer offers several advantages, including improved fault tolerance, efficient voltage transformation, and the ability to handle unbalanced loads better than other configurations. Its design also mitigates issues of harmonics, making it ideal for a stable 3-phase supply.
Q: Can delta-wye transformers be used for single-phase applications?
A: While delta-wye transformers are primarily designed for three-phase applications, they can supply single-phase power by using one phase of the wye winding. However, for purely single-phase applications, a single-phase transformer would be more efficient.
Q: What considerations should be made when connecting a delta-wye transformer to a 60Hz power system?
A: When connecting a delta-wye transformer to a 60Hz system, considerations should include ensuring proper phase alignment, understanding the phase shift from primary to secondary, and ensuring that the transformer’s kva rating matches the system requirements to prevent overloads.
Q: How does a delta-wye transformer manage the phase shift from primary to secondary?
A: In a delta-wye transformer, a 30-degree phase shift occurs between the primary and secondary sides. This phase shift is a result of the different winding configurations and is essential for maintaining balanced power distribution in 3-phase systems.
Q: What happens if a delta-wye transformer is incorrectly connected?
A: Incorrect connections can lead to issues such as phase imbalances, overheating, or failure to deliver the required voltage levels. It is crucial to ensure that the delta primary and wye secondary are properly connected to avoid these potential problems.
Q: Why can’t delta-wye transformers be paralleled with delta-delta transformers?
A: Delta-wye transformers cannot be paralleled with delta-delta transformers due to their inherent phase shifts. The phase shift differences would cause circulating currents, leading to inefficiencies and potential damage to the transformers involved.
Q: What role does the neutral wire play in a delta-wye transformer system?
A: In a delta-wye transformer, the neutral wire provides a reference point for the secondary side, allowing for line to neutral connections. This is crucial for supporting both 3-phase and single-phase loads, enhancing the versatility of the power distribution system.
