What is a Delta-Wye Transformer Configuration?

A delta-wye transformer configuration transforms high voltage systems across three phases. This means it has the capacity to step down different current levels, balance voltage proportional to the current phase, and shift the three phase system from one voltage level to another. Its greatest usefulness lies in the fact that it provides a neutral point at the secondary side which allows easy earthing and increases stability of the system. This is especially useful for power distribution networks in industrial and commercial regions.

Definition and basic principles of delta and wye connections

the main difference between delta and wye connections is the way the windings of a transformer or electrical system are configured. A delta connection is shaped as a closed loop with each phase electrically connected to the next in an end-to-end fashion. This earthing configuration is strong and best suited for transmission of high power at low voltages because of its high current carrying capabilities. In a wye connection, on the other hand, one end of each phase is connected to a common neutral point which gives it a star-like shape. This configuration is quite flexible and works well for load balancing across the phases, reduction of voltage levels, as well as for supplying phase-to-phase and phase-to-neutral loads. These principles support their frequent use and illustrate how these connections protect mutual aspects in power utility and industrial processes.

Importance of delta-wye transformers in power systems

Delta-wye transformers play a vital role in the power system because they ensure an effective voltage transformation, load balancing, and reduction of harmonic distortion. They aid in effective power distribution by changing the delta configuration that is suitable for high voltage transmission over long distances to a low wye configuration that’s appropriate for the local area, ensuring stability and adaptability to different electrical networks. Additionally, their configuration is designed to allow effective earthing which improves safety and fault detection in the system.

Key differences between delta and wye configurations

delta and wye configurations differ in their structure, application, and performance characteristics. Delta configurations are characterized by the use of triangular circuits, where every single winding creates a closed loop. This configuration is extremely effective for long distance high voltage transmission and is widely employed in power distribution systems. In contrast, wye configurations are marked with a “Y” shape where each end of a winding is connected to a common neutral point. Wye setups are appropriate for localized low voltage systems because of their ability to provide grounded neutral points which increases safety and eases fault isolation. The selection of systems is very much dependent – for instance, on load balancing or the required voltage ranges or safety issues.

How Does a Delta-Wye Transformer Work?

A Delta-Wye transformer works by transforming power from delta configuration on the primary side to wye configuration on the secondary side. This design allows for efficient voltage change, making it ideal for use in power distribution. The primary side’s delta arrangement optimally balances power transfer and reduces the effects of harmonic distortions, while the secondary side’s wye connection enhances safety and allows for stable three-phase power delivery due to the additional neutral point for grounding.

Explanation of three-phase power and transformer windings

the three-phase power system is skeletal for electrical systems and their operations. Its functionality stems from three staggered alternating currents which provide 120 degree phase displacement and guarantee a steady and constant electrical power flow throughout the system. This structure significantly minimizes energy losses and eases the process of high power applications. In terms of transformer windings, the delta-wye configuration is quite favorable. The primary delta winding reduces the harmonics and shifts the power factor towards lower values. In contrast, the wye secondary brings out a neutral point to ground the overvoltage. This combination of wye delta is the most suitable for reliable, efficient, and flexible power distribution to different systems.

Voltage and current relationships in delta-wye transformers

In my experience with the relationships of voltages and currents with delta-wye transformers, I always like to simplify things into smaller points that are easier to digest. This is how the two formats cusp together:

1. Voltage Relationship: The wye (star) side voltage is lower than that of the delta side by a factor of √3. This is because in a wye connection, each line voltage which is between two lines is √3 multiplied by the phase voltage which is measured between a line and neutral. As an example, assume the delta side uses a phase voltage of 480V, the wye side line voltage would have an average of 277V. This factor of √3 is a defining trait in any delta-wye method of transformer connection.
2. Current Relationship: This parameter (current) behaves differently on each side of the transformer with respect to delta and wye connections due to the difference in connections of the windings. On the delta side, the line current is greater than the phase current by a factor of 3^{\frac{1}{2}} because the winding shares current paths. However, the opposite is true for the wye side. Each line current connects to one phase, therefore, line current equals phase current. As an illustration, if the delta phase current is 10A, the line current will be roughly 17.32 A.

In these relations, a delta-wye transformer can perform its function of upping or lowering the voltage levels of a system without significantly altering the current levels necessary to keep the system stable and functional. One of the reasons as to why delta-wye transformers are dominantly utilized in power distribution networks is the fact that they are capable of transforming high voltage level while keeping a balanced current.

Phase shift characteristics of delta-wye connections

Connections between delta and wye transformers incur a thirty-degree phase shift which causes a separation between the primary and secondary windings. This phase shift takes place as delta connection constitutes phase to phase voltages while the wye connection has phase to neutral voltages. The shift may lead or lag depending on the direction of power flow and given wiring. These characteristics are of utmost importance when considering network capabilities with multiple interconnected transformers, or, more broadly, in regard to load centers with many power operating sources to ensure synchronization or intercompatibility within the elaborate multicellular power systems.

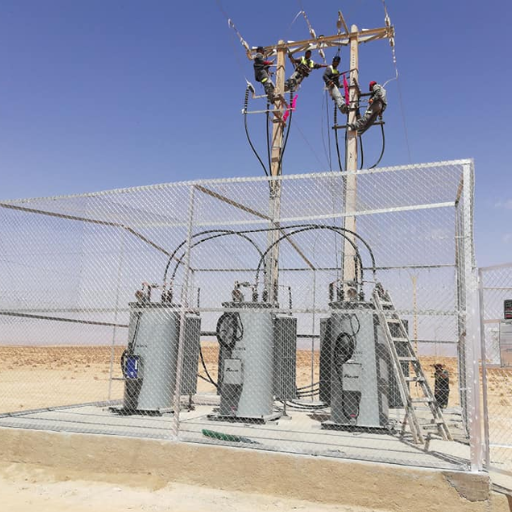

What Are the Advantages of Delta-Wye Transformer Connections?

delta-wye transformer connections are very advantageous. First, there is good isolation between the primary and secondary windings, which helps alleviate problems such as harmonic distortion and grounding difficulties. This configuration also permits interlevel voltage transformation for two-way versatility in applications. In addition, the wye-connected secondary permits a neutral point and allows the system to use both three-phase and single-phase loads. This flexibility, along with better management of unbalanced loads, makes it suitable for many power distribution systems.

Benefits for voltage regulation and power distribution

The wye-delta transformer connection facilitates effective voltage regulation and power distribution because it ensures stable voltage levels under different load conditions, while also managing unbalanced loads. It supports both three-phase and single-phase loads which, alongside the ability to step up or step down voltages, enhances flexibility in neutral point of wye configuration. This arrangement is very efficient in the sense that it optimizes power delivery, allows for improved system reliability, and takes care of a number of distribution issues in contemporary electrical systems.

Improved grounding and fault protection

enhanced grounding and fault protection achieve higher safety and operational productivity for electrical systems. Correct grounding helps in providing an acceptable path for fault currents, which cuts down the chances of electric shocks and equipment damage during electrical faults. Furthermore, newer protective circuits like circuit breakers and protective relays help improve system response time by detecting and isolating faults, preventing multiple failures at once and improving the entire system’s stability. This combination ensures not only safety for workers, but also infrastructure longevity, making it essential for contemporary power systems.

Flexibility in handling unbalanced loads

Imbalanced loads stem from the over or under consumption of electricity in one of the phases, leading to inefficiencies as well as undue strain on equipment. Modern power systems deal with this problem through the use of phase balancing transformers, adaptive control systems, smart inverters, and other advanced technologies. These technologies operate responsively to changes, thus enabling optimum energy use and minimizing energy waste while ensuring system stability.

How to Read and Interpret Delta-Wye Transformer Diagrams?

Key components of delta-wye transformer diagrams can help in better understanding the diagrams. In the diagrams, the primary side is represented as a closed triangle on one of the sides of a delta, while the secondary side is represented as a star formation on the wye. The focus on phase relationships is crucial due to the fact that the delta configuration produces no neutral and shifts the phase 30 degrees relative to the wye side. To analyze the step-up or step-down function, delta-wye transformer diagrams ensure to focus on the voltage levels shown at the primary and secondary terminals. Moreover, as delta wye systems are the most widely used commercial systems, tip attention to ground details on the wye side as it determines the stability as well as the fault tolerance of the system. Attention to the details of the receivers’ grounding details on the wye side should pay attention to suffices for stabilizing the system and masking the faults. A more effective approach to understanding the transformer’s function is to examine systematically the connections and the notations in order to determine the transformer’s integration into the power network.

Understanding transformer winding symbols and notations

The first impression the symbols and notations linked to transformer winding convey is that it is complicated, and indeed it has the potential to be so, but with clear stepwise breakdowns, the entire procedure becomes simple. This is how I would consider and describe the above based on the knowledge I have gathered:

1. Voltage Levels at Primary and Secondary Terminals: In order to ascertain whether the transformer is a step up or step down unit, I would first compare the voltage ratings shown on both the primary (typically the wye connected side) and secondary (delta connected side). By way of illustration, if the transformer terminal voltage on the primary side is 11kV, while on the secondary side it is 415V, this definitely suggests that the transformer is stepping down the voltage.
2. Phase Shift Considerations: This is the phase shift that accompanies compatibility with many power system configurations, a shift of 30 degrees in wye to delta conversion. This serves to load balance and enhance stability of the systems by providing natural phase compensation between different sections of the network. The importance of this is that not paying attention to the phase shift can cause serious synchronization problems in the system.
3. Grounding on the Wye Side: The wye side grounding is essential seeking to enhance safety as well as fault management. Proper grounding ensures stability in fault conditions and, at the same time, reduces the probability of overvoltages. For example, a solidly grounded wye connection can single-handedly eliminate line to ground faults enabling the system to avoid damaging equipment.
4. Transformer Purpose and Integration: Knowing the parameters and together with the winding identification letters, I can ascertain the transformer’s function. For instance, the mark YnDelta 11 indicates that the primary side is wye grounded, the secondary side is delta connected, and there is a 30 degree lead phase shift in standard notation.

At the center of this is an exhaustive study on the transformer’s nameplate, wiring diagram, and all relevant documents. In regards to the goals, their implementation in practical work is quite simple when the steps are categorized in such a manner.

Identifying primary and secondary windings in diagrams

In order to recognize the primary and secondary windings in the transformer diagrams, focus on the labeling and schematic notations provided. The “H1” or “H2” notations are unique to the primary voltages, which also sources power for the transformer. As for the load, it receives the transformed voltage through the secondary which is usually indicated by low “X1,” “X2”, or “X3” markings. The layout of the windings and their connections to form systems such as wye or delta is presented in the diagram for extra clarification. These steps allow for effective interpretation and utilization of the system in question.

Interpreting connection points and phase relationships

In order to determine connection points or phase relationships, I start my work by looking into the schematic diagram thoroughly. The markings “H1” and “X1”, for example, point towards the transformer’s high-voltage and low-voltage sides and are of great significance. It is also pertinent to know the type of connection, which may be wye, delta, or their combination, because they impact the phase relationships and the manner in which power is distributed. As a sample, I have learned through experience that focusing on the phasing symbols and the proper winding configuration helps in preventing errors and maximizing the performance of the system. This meticulous attention to detail has always been of great importance to me in troubling shooting and doing power system designs and plans.

What Are Common Applications of Delta-Wye Transformers?

In power distribution networks, Delta-Wye transformers are often utilized in voltage conversion where high transmission voltage levels are transformed into lower distribution ones, so they can be supplied to industrial, commercial, and residential regions. Their capability of providing phase shift, as well as isolating different levels of voltage, makes them a central component in harmonic distortion reduction and load balancing in three-phase systems. They are also widely used in renewable energy for the interconnection of solar farms or wind turbines to the grid in a reliable and efficient manner.

Industrial and commercial power distribution systems

industrial and commercial power distribution systems form the basis of modern infrastructure. Their designs are complex, and they are efficient, safe and reliable. Important parts such as transformers, busbars, circuit breakers, etc., are all integrated to achieve stability and prevent outages. I have witnessed, over the years, real-time power system monitoring and automation advancements that allow for system health diagnostics and power system performance. These automate efficiency, but more importantly, significantly reduce risk of critical failures, which is vital for clients with constant electricity dependency.

Utility-scale power transmission and distribution

The integration of electric power energy generation, high voltage transmission lines, and substations enable the construction of utility-scale plants. This integration helps in the stepwise distribution of electric energy which minimizes energy losses while guaranteeing grid stability. In tandem with smart grid technology automation, operators now have real-time system monitoring that allows optimization of energy flow in response to disruptions, ensuring reliable large-scale power delivery.

Specialized applications in renewable energy systems

Quote. “The integration of renewable energy systems into the grid calls for sophisticated tools to control variability and optimize efficiency.” Close Quote. This statement describes bottlenecks at the intersection of power system and renewable energy technology. From my experience in the industry, I know the IoT application for battery energy storage systems, advanced inverters, and real-time energy management systems are crucial for achieving supply and demand balance. Numerous approaches pertaining to this matter are available. A good case example is optimizing energy storage for later use when solar and wind generation is not sufficient. Moreover, grid operators have been increasing the use of predictive models and AI tools to estimate renewable output for improved grid management, which in turn enhances grid performance. Reliability and scalability of renewable energy sources is significantly improved within these advancements.

How to Choose Between Delta and Wye Transformer Configurations?

When selecting between Delta and Wye Transformer Configurations, one has to consider the User’s particular application and operational needs. Due to greater cover in industrial settings, Delta configurations tend to be common as they are able to manage unbalanced loads and have high fault tolerance. They also help in reducing harmonic currents in power systems. Conversely, Wye configurations are more flexible as they can cater to sustained multiple voltage levels which makes them appropriate for distribution systems, as well as for longer distance transmissions. At the end of the day, the type of load, voltage requirements and system design objectives need to be analyzed to identify the most appropriate configuration.

Factors influencing configuration selection

the preference for system configuration is determined by several key aspects. To begin with, the primary concern is the nature of the load, as it can either be balanced or unbalanced, and this characteristic can greatly impact performance results. Next in line are the requirements for voltage compatibility; host systems must ensure effectiveness without making the system overly complicated. The operational reliability and efficiency always greatly impact the chosen configuration—this is especially true for systems that need some level of fault tolerance or some form of harmonic mitigation. Last, but not least, the costs associated with accommodating changes and new expansion possibilities greatly impact the decision and frequently support low-cost configurations. With this analysis, I found that it is possible to achieve both the short and long-term goals of the system in question.

Comparing delta-delta, wye-wye, and delta-wye connections

Each connection of a transformer has its advantages and applications. Delta-delta connections are used in the industry because of their capability of serving high reliability with no neutral conductor present and their ability to work with unbalanced loads. Wye-wye connections are more appropriate for long distance transmission because the neutral point can be used for grounding and the voltage levels are concentrated within a lower value of insulation. Lastly, delta-wye connections are particularly flexible since they allow the transformer to step voltage down (or up), and have a grounded neutral which improves the stability of the system. The choice among these configurations depends on the application, the load, and the design of the system.

Considerations for specific load requirements and system designs

I have gathered that for each application, there are particular requirements that need to be analyzed to make sure the application has the load balanced. As a rule of thumb, for unbalanced or heavy duty industrial loads, I usually recommend delta-delta configurations for their strength and dependability. However, delta-wye arrangements seem to be the most adjustable, proven to provide controlled outcomes when it comes to voltage transformation, either by boosting or reducing it. While for long distance transmission or systems needing neutral for grounding, wye-wye connections typically are the best because of the effectiveness and safety features they offer. Ultimately, the optimal configuration is delta-wye as reliable performance is achieved through the delicate balance of the operational goals and system constraints.

What Maintenance and Safety Considerations Apply to Delta-Wye Transformers?

Reliable operation and increased service life of delta-wye transformers is dependent on the careful execution of maintenance and safety practices. Inspections performed on a routine basis should include checks for overheating, loose connections, bushings and insulation components, as well as any other signs indicating wear. By performing oil or dielectric fluid analysis, potential problems such as contamination or aging can be identified before they worsen. From a safety standpoint, ground and bond systems must comply with standards set because the system’s stability, along with the safety of the operator,r can be compromised by inadequate grounding. Another factor for improving safety is making sure that protective devices such as surge arresters and circuit breakers are functioning properly to minimize equipment damage due to overvoltages or faults. Adherence to maintenance schedules coupled with sound safety practices help avoid failures and ensure dependable system performance.

Regular inspection and testing procedures

While monitoring and servicing delta-wye transformers, I always adopt a structured and meticulous method. My first step is to perform visual assessments aimed at finding easily detectable problems like discoloration, ruptures in insulation layers, or oil ooze. I also use thermal imaging cameras to locate signs of overheating that would otherwise remain unchecked. Insulating oil dielectric strength and contamination tests are crucial to the process since they provide decisive information on the unit’s internal health. Equally important is checking the grounding system’s resistance, as well as the proper operation of the overcurrent circuit breakers and surge protection devices. Following this step-by-step approach enables me to keep the transformer’s primary systems functioning continuously, which significantly reduces the probability of failure.

Safety precautions when working with high-voltage transformers

Security risks are extremely high while using high-voltage transformers, hence utmost caution should always be applied. Sweat proof gloves, shock proof shoes, and face shields are just some of the equipment that an operator should wear to reduce exposure to electric shocks. Further, make sure that the transformer is not energized and that it is properly grounded before starting any maintenance or inspection activities. Implementing lockout/tagout (LOTO) procedures can help to prevent accidental energization of the transformer. Remember to also ensure the proper environment by staying away from water and poor shock junctions. Finally, everyone who is taking part in the operation should follow the safety measures and always check the surroundings to make sure that the risks are contained.

Troubleshooting common issues in delta-wye transformer systems

Originally, including primary and secondary wiring errors to delta-wye transformer systems, unbalanced voltage output is something that bothers me. Normally, the first steps involve carefully looking at the wiring to make sure proper phasing is set and the wiring is in order. This step alone often resolves the issue. Other times it’s simply voltage overheating due to excessive power in combination with poor cooling. I have found that keeping an eye on load ratio, along with adequate ventilation, helps to keep everything balanced. Unfortunately, insulation breakdown or winding issues bring upon short circuits, which result in loss of power or even temperature problems. Early detection of such errors is always best when using insulation testing combined with thermal scanners. Above everything else, I believe it is all about reliable long term results paired with proper maintenance.

Reference

1. Easy understanding of 3-phase transformer connections – Electrical Engineering Portal.
2. The Ultimate Guide to Delta-Wye Transformer – Daelim Transformer.
3. Delta vs. Wye Transformer Winding Configurations – UTB Transformers.

Frequently Asked Questions (FAQs)

Q: What is a delta-wye transformer and how does it differ from other transformer types?

A: A delta-wye transformer is a three-phase transformer with delta configuration on one side and wye (star) configuration on the other. It differs from other transformer types in its winding arrangement, which allows for voltage and current transformation between delta and wye connections. This configuration is commonly used in power distribution systems due to its flexibility and efficiency in handling various voltage levels.

Q: What are the main advantages of using a delta-wye transformer connection?

A: The main advantages of using a delta-wye transformer connection include: improved voltage regulation, reduced harmonics, ability to handle unbalanced loads, provision of a neutral point on the wye side for grounding purposes, and a 30° phase shift between primary and secondary voltages. These features make delta-wye transformers widely used in industrial and commercial applications, as well as in power distribution systems.

Q: How does transformer construction differ for delta and wye configurations?

A: Transformer construction for delta and wye configurations differs primarily in the way the windings are connected. In a delta configuration, the windings are connected in a closed loop, forming a triangle. In a wye configuration, one end of each winding is connected to a common point (neutral), forming a star shape. The physical construction of the core and coils remains similar, but the terminal connections and internal wiring differ to achieve the desired configuration.

Q: What is the significance of the 30° phase shift in delta-wye transformers?

A: The 30° phase shift in delta-wye transformers is significant because it helps reduce harmonics in the power system. This phase shift occurs naturally due to the difference in winding connections between the delta and wye sides. It is particularly useful in minimizing harmonic distortion in three-phase systems, improving power quality, and reducing interference with sensitive electronic equipment. The phase shift also allows for parallel operation of transformers with different vector groups.

Q: How do delta-wye transformers handle single-phase and three-phase loads?

A: Delta-wye transformers are versatile in handling both single-phase and three-phase loads. For three-phase loads, they provide balanced voltage and current transformation. For single-phase loads, the wye side can supply power between any phase and the neutral point. This flexibility makes delta-wye transformers suitable for a wide range of applications, from residential power distribution to industrial settings where both types of loads are present.

Q: What are the key considerations when selecting between delta or wye configurations for primary or secondary windings?

A: When selecting between delta or wye configurations for primary or secondary windings, key considerations include: voltage levels, grounding requirements, harmonic mitigation needs, load characteristics, and system reliability. Delta configurations are often preferred on the high-voltage side for better isolation and reduced insulation requirements, while wye configurations on the low-voltage side provide a neutral point for grounding and single-phase loads. The choice also depends on the specific application, such as power distribution, industrial processes, or data center requirements.

Q: How does a delta-wye transformer bank differ from a single three-phase transformer?

A: A delta-wye transformer bank consists of three single-phase transformers connected in a delta-wye configuration, while a single three-phase transformer is a unified unit with all windings on a common core. The transformer bank offers advantages such as easier maintenance (as individual units can be replaced), flexibility in capacity adjustment, and potentially lower transportation costs. However, a single three-phase transformer generally has a smaller footprint, lower losses, and may be more cost-effective for higher power ratings. The choice between the two depends on factors like power requirements, space constraints, and maintenance considerations.
