The 250-foot rule, a well-documented phenomenon, is critical in determining the ideal distance a household can be from a transformer and vice versa. However, there’s much more to it than that and if one is starting a new completely new construction or upgrading an already existing structure, the ins and outs of this rule are crucial. So what is the origin of such a rule and why has it been put in place? Let’s dive right in!
Get your understanding of transformers clear; a transformer converts high voltage (HV) electrical power to low voltage (LV) and vice versa, allowing electricity to be transmitted over long distances through minimal power loss. The rule in concern specifically addresses the area surrounding a transformer which any structure comprising a 4 walled floor and ceiling can not cross, this is known as a transformer’s restricted area envelope. In case you’re wondering the name ‘250 Feet Rule’ comes from the fact that in most cases such areas are separated by a distance greater than 250 feet from each other. On the topic of distance, building any household unit spaced 250 feet from a transformer ensures minimal physical stress on the electrical system. The rule’s importance cannot be stressed enough, be it in terms of voltage delivery, optimization or even the efficiency of the entire system in general.

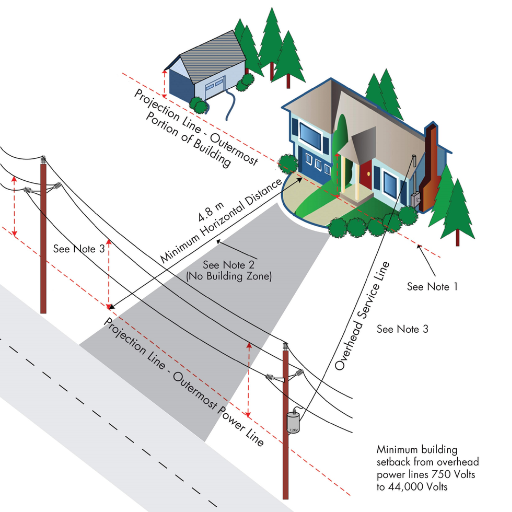

How far can a house be from a transformer?
When trying to determine the maximum distance that a house can be from a transformer it is an important house wiring installation to decide the distance that a house can be from a transformer based on several parameters Such as house load requirements, wire size, etc. However, in most residential settings, this distance is for practical purposes less than 200 feet to minimize the voltage drop losses during transmission. However, this distance, for instance, is governed by the type of transformer installed, the electrical code of the area, and the expected electrical load in the region. In this construction, if longer distances have to be covered then appropriate transformers and high gauge wires need to be used to make up for lost gauges and to keep up with the system. It is advisable to reach out to a licensed professional electrician or utility company to best define and reach an optimal distance for your case.
Understanding the 250 feet rule
The “250 Feet Rule” is a customary guideline in Electrical Installations which prescribes the distance between the power source, in the form of a transformer or breaker panel and the connected load to not exceed 250 feet. This rule intends to maintain voltage drop within sensible limits, standard limit throughout the majority of the residential and commercial practices is usually less than 3% as per the requirements of the National Electrical Code NEC. A drop in voltage at any point of electrical installation may cause loss of utilization, unanticipated failure of the device or your electrical components could rise above their temperature threshold and we could witness thermal failure. The 250’ rule is indicative but the actual range varies according to many variables including wire size, material (copper or aluminum), load specifications and ambient surroundings. For cases when the length of >250 feet is not achieved, voltage loss may be addressed by increasing wire thickness or using a step up transformer. Contact a qualified electrician or a professional engineer to analyze the project’s conditions to comply with the local requirements and regulations.
Factors affecting maximum distance
As far as I know, some important factors affect the efficiency of an electrical circuit in terms of energy transmission. To start with, there is a wire gauge, which is a crucial factor since it determines the resistance as well as voltage drop; low gauge numbers (that is, thicker wires) have less resistance and get the job done for long distances. Secondly, the composition of the conductor is important; it is known that copper is a better option for a longer run as it has less resistance than aluminum. Third, the requirement of current load defines how much energy the circuit has to supply; there is a direct relationship, the more the load, the higher the voltage drop over the distance. Also, climatic parameters like temperature and the place of installation (overhead/underground) affect the working of a wire. Regarding the long distances, I think that the solution I would propose would involve increasing the wire gauge, switching to more conductive materials, or using transformer type devices to make up for the loss.
Voltage drop considerations
When considering how to deal with the voltage drop over an extended distance the first idea that comes to my mind is using a thicker wire gauge to lower resistance because that indeed lessens the voltage loss. Moreover, high conductivity material such as copper or aluminum which is suitable for the application can also enhance efficiency. If additional measures are necessary, fitting voltage regulating equipment such as step up and step down transformers can help maintain performance. All these practices are by the best and market recommendations.
What determines the distance between a transformer and a meter?
The space separating the transformer and meter is influenced by several factors such as the induced voltage drop, the amount of power utilized and the types of conductors’ materials used in construction. Ideally, the distance between the meter and the load center should be relatively short to reduce power wastage due to line losses in the case of high load centers. Legislative requirements and domestic expectations are also significant as they prescribe the range of distances necessary concerning safety and functional features. Besides, factors such as the geographical layout, site development costs and even ease of use may also determine the location to which the transformer is located about the meter. Proper planning should guarantee all existing requirements are met whilst maximizing the efficiency of the system.
Role of power companies in placement
Electricity providers are key to deciding the positioning of transformers and meters to meet the requirements and let the system operate efficiently. It also may include visiting the sites, assessing load capacity, and ensuring the requirements are in line with the local code requirements like NEC and IEEE. For example, Maximum and Minimum guidelines are also issued by power firms concerning the distances allowed between transformers and meters to minimize losses in voltage; thus, distances of 200 feet for residential use are best since the losses would be minimal.
Soil characteristics, vegetation, flood areas… everything is evaluated by the electric power companies to choose locations that are safe, dependable, and easy to reach. So are the fault current levels, ground currents and the movement of the maintenance teams. It is also possible to ensure the security of the site, for example using eaves that are sixteen feet beyond the power lines. Further, for the Fiat Electric Power Company, to facilitate the installation of meters, a three-foot clear zone around the intended location is suggested. When it comes to practical limits, these dimensions are structured in such a way that they respect both technical and practical limits, as a result, the power systems can function efficiently without issues.
Impact of voltage and amperage
Education practically revolves around power systems. The management and usage of power systems, however, is a nuanced subject because there are a lot of machines and equipment involved whose parameters tend to shift according to the load demand. A simple amendment can have wide ranging effects such as causing insulation breakdown and possibly bringing the entire electrical system to a standstill. Power transmission becomes affordable as long as the voltage does not reach excessive limits, easily transferable for long distances with relatively low current. Power systems revolve around two terms; the amperage, and the voltage. From a technical perspective, the amperage and the voltage are direct factors influencing the system’s efficiency and security.
Now to highlight the basics, regardless of the specifications of data sending servers, the complexity of power systems is always there regardless of the core. The core functions of power systems are always covered in four segments:
Voltage limits: A 120V for residential circuits up to 765kV for high voltage transmission.
Amperage: Set by American Wire Gauge (AWG), the specifications cover specific requirements like 14 AWG which is rated 15 amps or 20 amps for 12 AWG.
Reinforced insulation: This basic requirement can be covered in the specifications to prevent flaws from electrical arcing and electrical leakage.
Temperature rise: The parameters are pivotal from a business perspective. For economical efficiency, the circuit parameters primarily need to be subjugated from the base set standards.
The above stages are necessary to avoid abuses in a practical sense while adhering to the functional duty of a power system.
Conductor size and material
In choosing the size and type of conductor, my focus includes electrical efficiency as well as compliance considerations. Usually, I go with copper, because of its much better conductivity and heat performance, though in some cases where weight and cost are critical, aluminum may be considered for larger installations. Conductor sizes are determined based on ampacity requirements so that load currents under normal and Maximum conditions will not cause excessive voltage drops and overheating. On top of that, I have to also factor in how the conditions surrounding the installation, polyatomic temperature and environmental conditions may affect the final dimensioning and the insulation considerations as stated in the NEC, for example.

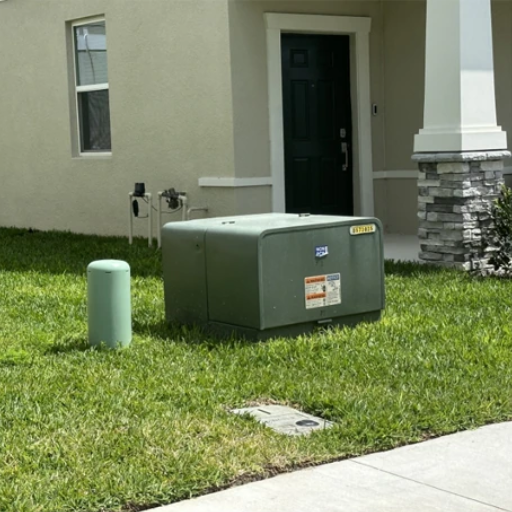

Can I request the transformer to be closer to my house?
Indeed, you can ask for the transformer to be installed nearer to your premises, but the possibility is dependent on some technical and regulatory requirements. For the implementation of any project, utility companies place transformers on certain parameters which include safety, accessibility to the electric equipment for maintenance and the adequate operation of the electrical system. You can reach out to your utility supplier regarding your transformer relocation request, although expect that there might be right-of-way along with other issues such as the property lines and even extra costs associated with shifting the equipment.
Working with your local power company
I understand that you would like the transformer to be a little closer to your house and it is possible under certain circumstances. Placement of this nature is pretty much dictated by the utility company with safety regulations, system efficiency, and accessibility for maintenance in mind. If you need further explanation, I recommend contacting your utility provider. Do note that aspects such as property lines, right-of-way permissions, and bearing costs for relocation may affect the decision.
Costs associated with moving transformers
The price for relocating a transformer will often depend on many factors such as the distance to be traveled, the regulations in that area, the labor costs incurred, and even the electrical technical structures they may need to modify. From what I have read from other people in the industry, the prices may range from a few hundred to a few thousand dollars. Moreover, there are different fees imposed by your utility provider for some of their services or even charge you for the permits/licenses that they need to acquire to provide you with their services. You will be best suited to seek advice from the utility provider that you work with because they can give you the most reliable answer.
Alternatives to relocating transformers
Several options can be considered if it is not practical to move a transformer. Such options are quite often dictated by specific technical and operational characteristics of the electrical system.
Reconfiguring the Existing System Layout
Altering the electrical load’s arrangement and patterns within the existing framework is sufficient to avoid the relocation exercise. This might entail some amount of load redistribution or the provision of additional distribution apparatus nearby to accommodate the surplus. A case in point is where spare feeder lines or Bus bars can satisfy the requirements without the displacement of the transformer.
Reinforcement of Existing Transformer with Cut In Transformer
If there is a transformer vault supply the installation of a maintenance spare transformer in the existing vault which is nearer to the new load point is the cheap option. This option has to be undertaken with proper parameter calculations such as the estimated capacity ( kVA), impedance, and thermal limits of the transformer so that the strength of the system is maintained.
Replacing the Last Transformer with a More Powerful One
Improving the capacity already of the last transformer in a line of winding replacement or other also enhanced cooling can support growth of sites without the need of relocation. This was because any enhancement must maintain IEEE or IEC standards for safe operation.
Building Underground or Overhead Extensions
Connecting cables or lines from the current transformer to the load center is another option. Important aspects to address would be, voltage drop calculations, size of conductors and level of provided insulation to conform with system voltage (in this case, 11kV or 33kV). Moreover, there are local codes for underground or aerial installations that have to be followed.
Demand- Side Management Measures
This can be achieved through peak shaving strategies along with the use of energy storage mediums like batteries, such actions can bring down the maximum demands and perhaps even do away with having to shift locations. Such measures have to be put in place alongside control and monitoring machines for effective running.
Market and regulatory requirements differ widely from region to region. For this reason, every one of these alternatives should be considered for its technological feasibility, economic cost, as well as relevant regulatory constraints. The best approach to achieving the requirements and working conditions relevant to users should be determined by consulting an electrical engineer or a utility service.

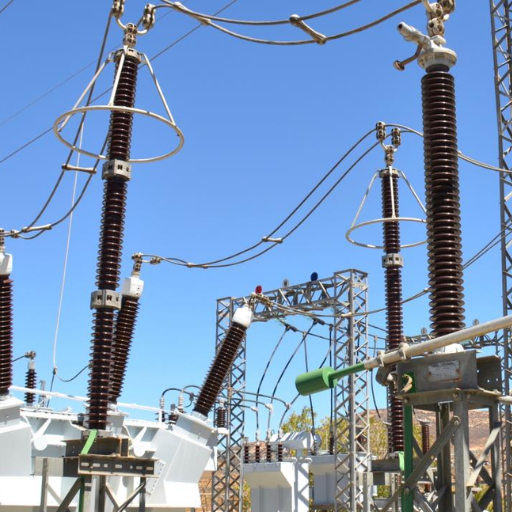

How does the distance from the transformer affect my electrical service?
The distance between the transformer and your electrical service plays an important role in the quality of the voltage and the performance of the system as a whole. The longer distances cause a voltage drop which in turn results in inefficient usage as the electricity is conductively delivered and equipment could be damaged. To minimize these issues, it is necessary to utilize correctly sized conductors with lower resistance, but this raises costs for installation. Moreover, the use of numerous transformers or voltage regulators may also be required due to the distance to maintain a suitable standard. It is critical to obtain a professional electrical estimate for accurate evaluation and solutions.
Voltage drop over distance
It is well known that one conductor produces a voltage drop over another. The material of the wire (Copper or Aluminum), its length, cross-sectional area (wire gauge), the number of amps it passes, and the voltage supplied is of prime importance.”
To deal with this problem, I would carry out the following work to get the required voltage drop:
Voltage Drop (V) = (2 × Length × Current × Resistance per unit length)/1000
Key parameters to consider include:
Conductor Material: Copper (Approx. 1.68 μΩ· cm) has a lower resistivity than aluminum (2.82 μΩ·cm), hence Copper conductors are more efficient but expensive.
Conductor Size: According to the American Wire Gauge (AWG) system, larger wires (4 AWG or larger) will serve their purpose as they will minimize voltage drop.
Distance: The further the two points are from each other, the more resistance and its effects are felt; hence larger cables must be installed or voltage regulators must be added.
Load Current: It is dependent on voltage drop, high current loads will cause high voltage drop; hence estimating the load accurately is crucial.
Taking these factors into consideration, all systems should ensure that the drop is within 3% of the input source voltage, this is the number provided by standards. In case more design changes are necessary, I suggest that you talk to licensed professional electrical engineers who would be able to calculate these for you.
Impact on Appliance Performance
Regarding how sensitive appliances such as motors, heating devices and electronics operate, voltage drop can be viewed in a sense whereby it is crucial. If the supply of voltage to these components is below a certain limit, both efficiency and operation reliability will be affected. For example, a motor will either get too warm or won’t spin at all plus a heating element could just work but give a low output. Furthermore, in severe situations, even the systemic electronic parts can misbehave or get ruined. For this reason, I make sure that the conductor is sized correctly, the power source and load are as close as possible, and the load current rating matches that of the circuit design. Understanding voltage drop and working to keep it within the 3% margin is very paramount as it guarantees reliability and improvement of equipment from breakdowns.
Safety considerations
Electrical safety measures help avoid the chances of injury or damage to equipment as well as fire hazards. There are a couple of guidelines that assist with electrical safety mitigation which include, ensuring that every installation complies with the installation codes. For example, National Electrical Code (NEC) guidelines make sure that grounding systems insulation, and overcurrent protections are well put in place. They also suggest that Auxiliary protection and fuses that are appropriate for hazard protection for the whole working system are chosen to avoid catastrophic overloads or many short circuits. Over time cables, connection insulations, and devices deteriorate or get damaged, regular maintenance is therefore critical in preventing the failure of the system. Employing insulation which is ideal for the ultimate load and application environment temperature and humidity also lowers the hances of failure in the long run. Marking all phrases and having the right papers also simplifies repairs and makes the supervisor’s roles safer. Incorporating these simple strategies is most likely to contribute positively towards guaranteeing that the system will function satisfactorily under regular as well as unusual circumstances.

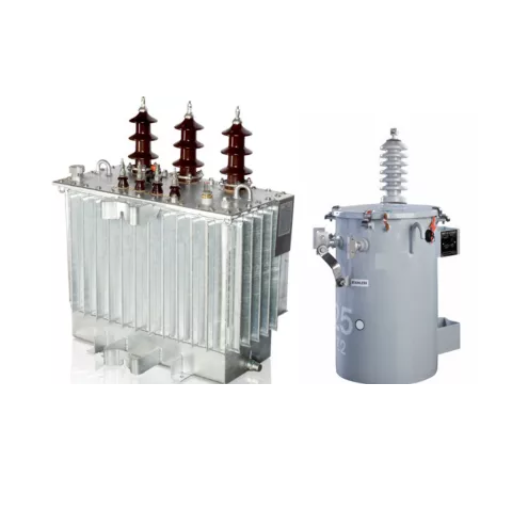

What’s the difference between pole-mounted and pad-mounted transformers?
The differences between pole-mounted and pad-mounted transformers include their placement and their deployment. The pole-mounted varieties are intended for use in overhead distribution networks, and so they are found affixed to utility poles. They are relatively small, inexpensive, and ideal for use in arterial or sparsely populated regions which typically have overhead wiring. A pad-mounted transformer is ground mounted and locked inside a secured metal vault for safety reasons. These transformers are employed in underground distribution systems and are more appropriate for metropolitan or suburban locations where appearance and diminished exposure to the elements are important. The selection of one or the other depends on the configuration and conditions of the supply network.
Installation and placement differences
Regarding the installation and location, pole-mounted transformers are fixed to utility poles and usually on the upper side, thus most suitable in areas with overhead power lines. They have a small size and therefore are more convenient to install in rural or low-density areas without too many constraints. On the contrary, pad-mounted transformers are a relatively new technology which are placed on the ground powered by a secure metal enclosure which is ideal for underground electricity networks now mostly used in cities or the outskirts. The selection is determined more by the external elements, safety standards, and configuration of the distribution network.
Typical distances for each transformer type
In the case of pole-mounted transformers, the range observed in spacing may roughly range from two hundred to three hundred feet in residential settings owing to the load density and power consumption being low. This spacing ensures that power is sufficiently delivered with a reasonable voltage drop along the distribution line. However, for rural areas having fewer consumers and feeder lines that are long, this distance can be increased to about one thousand feet as required by the loads and for voltage regulation.
In urban and suburban settings, pad-mounted transformers (the most common type in underground distribution systems) help bridge the distance of approximately 300 to 500 feet. To regulate the higher load density which is a factor when comparing pad mounted and pole mounted transformers, much closer spacing is needed. Some of the technical parameters that govern the spacing distances include transformer capacity (approximately 25kVA to 1000kVA) and primary voltage (around 7.2kV to 35kV). Other setting specific factors such as load profiles and network structure can also be used to shift these normals.
