Together with the other fundamental parts, loop feed transformers contribute to the safety, reliability, efficiency and ease of management of modern electrical distribution systems with respect to the power supply. This document seeks to provide a complete description of loop feed transformers which includes their design and operational principles, case applications as well as the benefits they offer relative to other transformers. By studying this document, users will understand the role of loop feed transformers in system redundancy and performance improvement for urban, industrial, and commercial power networks and failure risk mitigation. Furthermore, the document will encompass transformer maintenance, safety considerations, and other pertinent aspects concerning the current trends in technology over the past decade. This material will aid engineers and technicians and other industry professionals enable understanding of concepts related to the application and development of loop feed transformers in numerous situations.

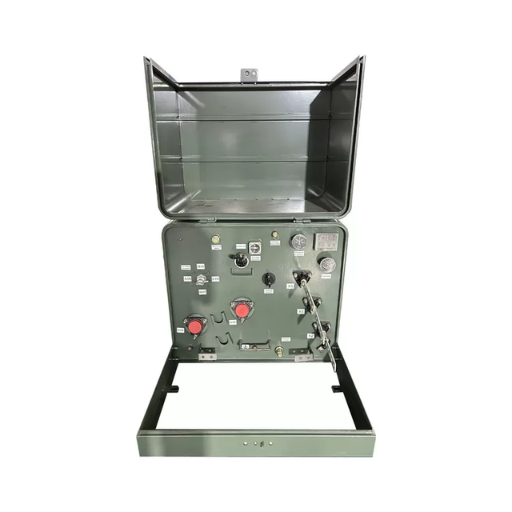

What is a loop feed transformer?
A loop feed transformer is a type of electrical transformer designed to connect into a closed-loop distribution system, allowing power to flow from multiple directions. Such arrangement increases reliability and redundancy of the system as it maintains power delivery in all cases, even when one of the loops is under maintenance, or faulty. Highly applicable in urban and industrial settings, loop feed transformers are a cornerstone component of modern power networks as they reduce downtime and efficient load management.
How does a loop feed transformer work?
A loop feed transformer works by plugging into a closed-loop grid where its primary windings are connected to two power supplies through switchgear. The duel-position connection enables bidirectional power flow within the loop. Typically, one side of the loop supplies the transformer while the other remains on standby. In case of a fault or maintenance on the active side, the system automatically shifts the load to the standby side, which guarantees seamless power supply. The transformer reduces the incoming voltage to a level suitable for safe and efficient use/final consumption while preserving the system’s reliability, flexibility, and load control features.
What are the main components of a loop feed transformer?
- Transformer Core: With the core manufactured from laminated steel, its purpose is to transfer with minimal losses the magnetic flux produced by the primary winding to the secondary winding.
- Primary and Secondary Windings: These windings are made of copper or aluminum. The high voltage primary winding is connected to the input, while the secondary winding outputs the reduced voltage to the load.
- Loop Feed Bushings: These bushings permit access to connect to the primary power supply, and also perform loop feed functions by interlinking with other transformers in the grid.
- Tap Changer: A user-set component that allows for voltage modifications by adjusting the transformer’s turns ratio to keep the output voltage constant regardless of load variations.
- Cooling System: Usually oil or air cooling, this system removes the generated heat during operation to guarantee safe and effective performance.
- Protective Devices: To maintain safe and reliable operation, electrical relays, fuses, and surge protectors defend the system from faults, overloads, and voltage spikes.
- Secondary Terminals: These serve as the access terminals for supplying the reduced voltage to the consumption devices.
All components are integrated into the loop feed transformer so that it can adapt to variable load and network configurations while maintaining high efficiency and reliability.
What are the voltage ratings for loop feed transformers?
Loop feed transformers generally work within a broad scope of voltage ratings to fit numerous applications in power distribution networks. Primary voltage ratings of those transformers are typically 15kV, 25kV, and 35kV which corresponds with most medium voltage distribution systems. For secondary sides, the voltage ratings are commercial and industrial grade, so they are usually within 120/208V or 277/480V. These range of standardized voltage ratings guarantee adequacy with utility systems without compromise adaptability across different load demands.
How to choose between loop feed and radial feed transformers?
Loop and radial transformers differ not only in type but in various aspects vital to their use, including:
1. Reliability requirements of the system: Reliability of services is more enhanced with loop feed transformers because they can sustain flow of power during a fault because of their alternate pathways. Radial feed transformers are simpler in design: however, they have an unfortunate side-effect of service interruption during a fault at the single feed line.
2. Scope of application: Systems that deal with high value processes, like hospitals or data centers, need loop feed configurations. Lesser critical operations, which includes some commercial or residential setups, can function with radial feed systems.
3. Expenses: Their straightforward design makes radial feed transformers cheaper to maintain and install. Loop feed systems add additional cost to a transformer because of their infrastructure requirements and investment.
4. Network topology: The availability of alternative power supplies, as well as network design, are crucial. Both loop feed transformers are better suited for interconnected networks, while radial feed systems function efficiently during standalone operations.
An ideal transformer requires scrutiny of operational and budgetary constraints while considering all factors in equal balance.
What factors should be considered when selecting a transformer type?
1. Load Requirements: Analyze the transformer’s prospective load capacity including the electrical power demand it will serve. Moreover, confirm that the transformer selected complies with all present and future load requirements considering the system expansion plans.
2. Voltage Levels: Check that all relevant input and output voltages are within the preset operational bounds. This allows proper integration into the entire system without causing other issues due to voltage conflicts.
3. Efficiency and Losses: Analyze the transformer’s energy efficiency and loss levels (core losses and copper losses) associated with operating the transformer. High operational cost inefficiency models should be avoided in order not to incur excessive operational costs in the future.
4. Environmental Conditions: Evaluate the working environment of the transformer such as temperature, humidity, and possible contaminants the transformer may be exposed to as these factors may affect transformer performance and lifespan.
5. Installation Site and Space: Pay attention to the location of the transformer and the physical space restrictions/installation requirements such as being installed indoors, outdoors, or in a compact substation.
These considerations, combined with business requirements, enable cost-effective and technically optimal decisions for performance goals. Such an organized approach permits seamless integration of complex technical systems into simple methods of system operation.
Which transformer is more suitable for different power distribution scenarios?
It is critical to analyze voltage requirements, load characteristics, and even the environment before recommending a transformer for a power distribution scenario.
1. It’s common knowledge that Step-Down Transformers are used in residential and commercial buses for power distribution. The function of a step down is to reduce the high voltage to a lower value which makes them indispensable when it comes to safe and efficient power delivery.
2. Compared to other types of transformers, Step-Up Transformers are known to be more suitable for high-voltage electricity transmission over long distances. The aspect that sets them apart is that they enhance the voltage level which minimizes the energy loss during transmission.
3. Other than power distribution, Distribution Transformers are designed to accommodate different load demands which further illustrate their versatility. Not only are they intended for use near end-user locations, but they are also designed for efficiency at low voltage.
4. In substations where high voltage and power level is needed, one requires Power Transformers. Their key role is to maximize efficiency in transmission and interconnection applications.
It goes without saying that gaining insight on each scenario aids the operator in devising the most cost-effective, reliable, and efficient strategy.
What are the installation requirements for loop feed transformers?
Transformers with loop feeds must be installed according to detailed instructions that enable the device to function well and remain safe. Important guidelines encompass the following principles:
1. Noticeable Clearance: There should be unobstructed space regarding the transformer since that area will need to be accessed for cooling, ventilation as well as maintenance.
2. Earthing: The use of proper earthing techniques serves in capturing a variety of hazards related to electrical faults. In addition, proper ground construction quickly improves the safety of workers, personnel as well as equipment.
3. Cable Terminations: All high-voltage and low-voltage cables must be properly and firmly fastened. They must also be fitted following the recommendations from the manufacturer while taking care not to damage the loop feed structure.
4. Calculation of Loads: The expected load should be determined or rather forecasted to take into account the operational needs of the transformer.
5. Durability: To increase the durability of these devices, the transformer should be put in a place that is not too exposed to harsh weather, flooding, and debris.
Failure to abide by these principles greatly reduces the reliability and effectiveness of a unit, as well as violating the industry standards.
How to properly install a loop feed transformer?
To achieve maximum performance from a loop feed transformer, it’s important that the unit is installed while strictly observing operational safety protocols and procedures.
1. Site Preparation: Select an area that is easily accessible, is protected from environmental threats such as flooding or debris, well ventilated, and is also horizontal. All zoning and safety restrictions for the installation area should be fulfilled.
2. Grounding Setup: The transformer’s ground must comply with local electrical codes to avert any chances of electrical danger.
3. Primary and Secondary Connections: Label and secure all primary and secondary terminal connections exactly as the manufacturer has stated. This aids in maintaining proper order and prevents connection chaos which would lead to transmission errors.
4. Loop Feed Configuration: Check loop feed circuits for redundancy and continuity and ensure they are correctly closed after closing all loops at the final inspection.
5. Voltage Testing: Evaluation of the transformer’s voltage and insulation resistance should be done before energization. Confirm that all achieved results meet the suggested benchmarks.
6. Load Balancing: Check to see that the transformer’s load is within the rated capacity to avoid overloading the transformer which could lead to efficiency loss or early failure.
7. Final Inspection and Protection: The transformer’s test to check compliance with operational and safety standards will follow checking of all connections, relays, and system devices to ensure they are within operational parameters.
These steps ensure that the loop feed transformer is installed safely and efficiently while observing long-term reliability and industry best practices.
What are the common installation challenges for loop feed transformers?
1. Space Limitations: Most installations have problems with locating and arranging space, especially in urban and congested regions, which creates problems in positioning the transformer along with its accessories.
2. Cable Routing: Proper connection and cable routing is of prime importance. Misalignment of cables or incorrect terminations pose grave performance and safety risks.
3. Terrain Smoothing: Building blocks of extreme value like inadequate drainage, uneven ground, or a substandard footings can result in operational and structural problems such as inefficiency and instability in the performance or lifetime of the transformer.
4. Cooling and Airflow: Proper cooling and ventilation must be provided in order to mitigate the risks of overheating. This can result in a decline in efficiency or even harm the transformer when in use.
Dealing with these problems in the planning and first deploying stages helps ensure the loop feed transformer function without risking operational hazards, safety, or the need for frequent upkeep.

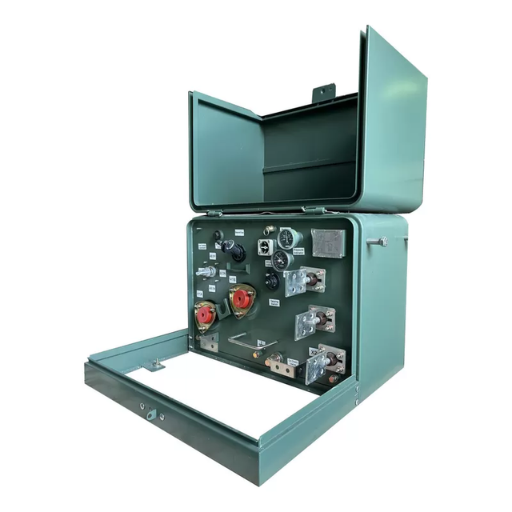

How do pad-mounted loop feed transformers work?
Loop-feed transformers that are pad-mounted connect to an electrical distribution system via underground cables arranged in a loop configuration. This permits uninterrupted power supply during maintenance or faults by isolating certain sections of the loop while still supplying power to other sections. The transformer also reduces the high-voltage electricity to levels that can be used by residential, commercial and industrial service. The transformers are equipped with bushings and switchgear which facilitate the connection, disconnection, and sectionalizing the transformer without jeopardizing operational reliability. Their sealed enclosures make them ideal for outdoor applications as they are resistant to tampering and offer strength and protection in various conditions.
What are the key features of pad-mounted loop feed transformers?
Pad-mounted loop feed transformers are tailored for optimized performance and operational efficiency in the context of electric distribution systems. They have the following features:
1. Loop Feed Capability: These transformers permit the formation of looped circuits which allows for flexible directional power flow and more rapid restoration of service in case of outages by creating alternate pathways for the flow of electricity.
2. Dead-Front Design: They have a dead-front design which makes them safe for use because the risk of contact with live parts is greatly reduced.
3. Effective Switching and Isolation: These transformers are equipped with load break switches and fault indicators which enhance ease of sectionalizing, isolating, and performing maintenance works during low usage periods ensuring sustained service during active periods.
4. Durability: With strong, weather-proof enclosures, these transformers can be positioned in extremely outdoors harsh environments since they are protected.
5. Compact and Secure Configuration: Every unit has a small footprint, and is put in residential, commercial and industrial spaces with secure, vandal-proof designs.
All these factors help pad-mounted loop feed transformers meet modern requirements in power distribution networks.
How do pad-mounted loop feed transformers differ from other types?
What are the maintenance considerations for loop feed transformers?
The reliability and durability of loop feed transformers heavily depend on them being properly maintained. Key considerations include conducting periodic checks on the transformer’s enclosure for any corrosion, damage, or signs of tampering. Routine evaluations of electrical components are required to determine if any potential faults exist within the bushings, cables, and fuses so that optimal performance can be achieved. In oil-insulated models, it is vital to maintain adequate levels and quality of oil to avert breakdown in insulation, while, on the other hand, monitoring of the oil levels and quality must be done for proactive mitigation of issues. Equal attention ought to be given to proper grounding and examination of connections within the loop feed system to further guarantee operational safety. Creating a maintenance plan that outlines specific protocols and procedures will enable operators to improve efficiency by reducing equipment failure and utilization downtime.
How often should loop feed transformers be inspected?
Loop feed transformers should be thoroughly examined at least once per year to verify their reliability and performance. Visual checks for corrosion, physical damage, and tampering should be undertaken every three months, while routine verification checks on electrical components like bushings, cables, fuses and insulation may be done every six months, or per manufacturer’s instructions. In addition, secondary maintenance activities like checking oil level and quality for oil-insulated models, as well as confirming the integrity of grounding and connections, should be done along with these checks. Following this schedule will help avert unforeseen failures and extend the equipment’s lifespan. Consult a manufacturer’s guides along with benchmarks from the industry to calibrate the gaps between these checks.
What are common issues with loop feed transformers?
Maintaining a Loop Feed transformer is balanced with following proper protocols: it provides electrical continuity while being adaptable, but is also subject to many vulnerabilities. Sub-par conditions tend to worsen overheating problems, causing moisture ingress, deterioration of materials, and even aging. Electrical faults are not immune to other issues like loose or corroded terminals, which result in operational inefficiencies. Reliability can be compromised with improper grounding or a lack of routine care for a loop configuration which can cause hazardous risks to safety. Sustained operation beyond a transformer’s rated capacity can cause overheating, or worse, permanent damage to the winding insulation. Regular monitoring and testing, alongside proper adherence to maintenance protocols, fluffy mitigated all of these issues and ensured transformers perform as efficiently as possible.
How do loop feed transformers impact power distribution efficiency?
Loop feed transformers improve the distribution of power by offering a versatile and robust configuration that allows power to be routed through different paths. This design allows the system to use an alternate supply route, which minimizes disruption during a fault or maintenance, thereby enhancing system uptime and reliability. Also, loop feed systems balance the loads across the network, mitigate the risk of overloading, and improve overall operational efficiency. These transformers also simplify the expansion of the distribution network, meeting growing demand with little structural adaptation.
What role do loop feed transformers play in electrical distribution systems?
Loop feed transformers are essential for enhancing the backbone and adaptability of electrical distribution systems. They allow power to be rerouted through different pathways during faults or scheduled maintenance, allowing for lower downtime, thus enabling the network to maintain power delivery. These transformers also assist in load balancing by distributing the loads over several circuits, thus preventing overloading, enhancing voltage stability as well as resource utilization. Their design also permits the addition of other infrastructures, which makes them crucial for efficient and scalable power distribution networks.
How do loop feed transformers improve system reliability?
Loop feed transformers ensure the reliability of a system by serving as alternative routes for electricity during events of faults or maintenance and in all circumstances guarantee the delivery of power. Transformers balance loads around circuits so as to prevent overloading and aid in voltage stability under differing operational variations and conditions. They enable network expansion without causing disruptions including adding new components which increases flexibility, reliability, and performance consistency throughout the entire operations of more intricate distribution systems.
References
Frequently Asked Questions (FAQ)
Q: What is a pad-mounted transformer?
A: This is a type of outdoor transformer set on a concrete slab, known as a pad. It typically serves power to commercial or residential regions and can be maintained with no disruptive impact to the environment. Such transformers are ideal for cities and are offered by different suppliers including Schneider Electric USA.
Q: How do I choose the right pad-mounted transformer?
A: In making a selection regarding the transformer, evaluate these parameters first. These include the application needs, load requirements in kVA, rated voltages of the transformer, among others. It would be prudent to verify that the transformer in question has the provision to house two or more transformers in a loop feed configuration for redundancy.
Q: What are the commonly used rated voltages of the transformer?
A: These voltages are, in most cases, between 5 kV and 35 kV for fenced mounted transformers, depending on the need and the utility company serving the region. Remember the mounted transformer functions within the parameters of the voltage defined within the system with the contained system.
Q: Loop-feed in the context of transformers, what does it mean?
A: Loop-feed in the context of transformers indicates a setup in which the power supply forms a loop and has several paths that electricity can flow through. This configuration improves the dependability of the power system since it can continue to provide power even if one path is obstructed.
Q: What is the answer to the problem was trying to connect two different types of transformers together?
A: An error could result from an incompatibility of transformer ratings, voltages, or wiring configuration. When connecting two types of transformers, make certain that they are aligned with respect to phase, voltage, and kVA rating, or else they will face operational problems.
Q: In what way does a transformer manage to continue supplying power even when it’s in use?
A: A transformer’s capability of supplying power when loaded is achieved by transferring electric energy from the primary side of the transformer to the secondary side via induction. A transformer can manage changes in the load as long as he works within a specific kVA limit.
Q: What are the three high voltage bushings used in transformers?
A: All three high voltage bushings in transformers are meant for the connections of the internal windings of the transformer to the external power lines. They are critical for the safe evacuation of power from the transformer to the network, and are commonly labeled H1A, H2A, H3A in the documents meant for engineering purposes.
Q: What benefits may I enjoy by using loop feed transformers?
A: By using loop feed transformers, you may enjoy increased dependability in your power distribution network alongside enhanced configurability. They create a fault-tolerant environment where power supply remains available even when maintenance is being done or faults occur. This is especially important for vital infrastructure systems.
