Understanding the 225 KVA Transformer: A Comprehensive Guide

The workings of electrical power systems rely heavily on transformers. They allow for the transmission and distribution of electricity at different voltage levels. The 225 KVA model is a reliable and widely used transformer in the commercial and industrial sector because of its ability to handle medium-sized electrical loads. This guide aims to cover the design, functionality, and key operational principles of the 225 KVA transformer in detail.

In the beginning we will look into the major parts of the transformer, its construction, and even examine some of its technical specifications. Then the article will focus on its most common uses and discuss where it is most effectively employed. Lastly, some maintenance procedures of the device are described so that it can be kept in an efficient state for as long as possible. The detailed guidelines in this document will be of immense benefit to engineers, technicians, and stakeholders who wish to better understand this essential electrical device.

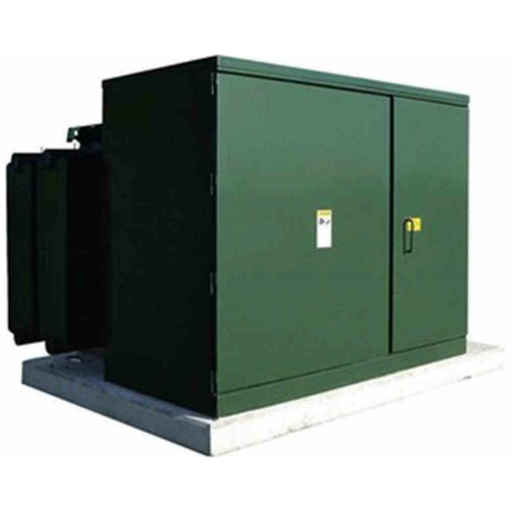

What is a 225 KVA Transformer?

The transformer 225 KVA transfers electrical energy through circuits via electromagnetic induction. These devices operate at the capacity of 225 Kilovolt-Amperes (KVA). A KVA of 225 comes up to an apparent power of 225 000 VA, which makes it viable for medium-scale and even large-scale conductive tasks. Transformers do find utility in industrial or commercial fields requiring 225 KVA, however, it is even utilized in utility sectors for stepping. This ability allows other industries to raise or lower the incoming voltage for operational purposes. Because of this, energy can be distributed and used efficiently.

How does a 225 KVA transformer work?

A 225 KVA transformer functions on the principles of electromagnetic induction. It comprises a core made of laminated steel with two windings – the primary and secondary winding. When AC is supplied through the primary winding, a magnetic field is created in the core, which in turn induces an alternating voltage in the secondary winding. Unlike conventional transformers, this transformer has a distinct feature: it can increase or drop voltage levels depending on the ratio of turns-to-voltage promethean in the primary and secondary windings, unlike conventional transformers which always drop voltage. The device is made with precision engineering and high-efficiency materials to eliminate energy losses and maximize optimal power transfer, safety, and reliability even in extremely demanding applications.

What are the key components of a 225 KVA transformer?

A 225 KVA transformer is composed of several critical components that ensure its efficient operation:

1. Core: The core is typically made of high-quality laminated steel to reduce energy losses from eddy currents and hysteresis. It serves as the medium for the magnetic flux generated by the windings.
2. Windings: The transformer consists of primary and secondary windings, made of copper or aluminum. These windings are responsible for transferring energy between the input and output circuits through electromagnetic induction.
3. Insulation: Insulating materials are used to electrically isolate the windings and core, preventing short circuits and ensuring operational safety. High-grade paper, resin, or oil is commonly used.
4. Cooling System: A cooling system, such as oil-based cooling or air circulation, is vital to regulate the transformer’s temperature during operation and prevent overheating.
5. Tap Changer: The tap changer allows for voltage adjustments in the transformer’s output, ensuring stable performance under varying load conditions.
6. Bushings: These insulators enable safe electrical connections from the windings to external circuits while maintaining isolation from the transformer casing.
7. Tank and Enclosure: Transformers are housed in robust tanks, which contain the core and windings. These enclosures shield the internal components from environmental factors like moisture, dust, or physical damage.
8. Conservator and Breather (in oil-filled transformers): The conservator stores expansion oil, while the breather filters out moisture from the air entering the tank, maintaining oil purity.

By combining these components, a 225 KVA transformer achieves reliable and efficient voltage transformation for a variety of industrial and commercial applications.

Why Choose a 225 KVA 3-Phase Transformer?

A 225 KVA three phase transformer delivers effective and dependable power distribution for industrial and commercial premises. Some of its most important benefits include effective management of large power loads, minimal energy losses owing to its balanced 3 phase construction, and excellent voltage regulation. This type of transformer is also built for heavy duty applications, which means that they are used to operate machines, HVAC, and lightning systems in large buildings, warehouses, and factories. Moreover, these units are designed with high durability, advanced cooling systems, and other robust features, which provide a long system life and low operational downtime. This primed energy construction helps these powerful systems deliver uncompromising energy solutions for harsh environments at greatly reduced costs.

How to Determine Transformer Amps for a 225 KVA Transformer?

To determine the transformer amps for a 225 KVA transformer, the following formula can be applied:

For a 3-phase transformer, the formula is:

Amps = (KVA × 1000) / (√3 × Voltage)

1. Begin by identifying the voltage level of the system (commonly 208V, 480V, or other standard voltages).
2. Substitute the KVA rating (225 KVA) and the system voltage into the formula.
3. Calculate the result to determine the amperage.

For example, at 480V:

Amps = (225 × 1000) / (1.732 × 480)

Amps ≈ 270 A

This calculation ensures proper sizing of transformers and associated electrical components for safe and efficient operation. Always verify parameters with actual system specifications or consult a professional engineer for precise requirements.

Calculating the current rating of a 225 KVA transformer

To calculate the current rating of a 225 KVA transformer, I would use the recommended formula for a three-phase system, as outlined above. First, I would determine the voltage of the system—this could be 208V, 480V, or another standard voltage. Then, I’d plug these values into the formula:

Amps = (KVA × 1000) / (√3 × Voltage)

For example, if the voltage is 480V, the formula becomes:

Amps = (225 × 1000) / (1.732 × 480)

Amps ≈ 270 A

This shows the current rating at 480V. The calculation process ensures that the transformer and its connected components are appropriately sized, enhancing reliability and safety. To ensure accuracy and compliance with design requirements, I would compare this calculation with the transformer manufacturer’s specifications or consult an electrical engineer.

Understanding Primary and Secondary Voltage in Transformers

Primary and secondary voltage in transformers refers to the input and output voltage levels, respectively. The primary voltage is the voltage applied to the primary winding, while the secondary voltage is the voltage induced in the secondary winding through electromagnetic induction. The voltage ratio between these windings is determined by the turns ratio, which is the number of coils (or turns) in the primary winding versus the secondary winding. This ratio governs whether the transformer steps the voltage up or down.

For instance, in a step-up transformer, the secondary winding has more turns than the primary, resulting in a higher output voltage. Conversely, a step-down transformer reduces voltage because the primary winding has more turns than the secondary. To calculate primary or secondary voltage, the formula is used:

V₂ = (N₂ / N₁) × V₁

Where:

• V₁ is the primary voltage.
• V₂ is the secondary voltage.
• N₁ and N₂ represent the number of turns in the primary and secondary windings, respectively.

Understanding this concept ensures efficient transformer selection and operation in electrical systems. External factors, including load demand and voltage regulation, must also be considered for optimal performance. Always validate calculations against manufacturer specifications and adhere to electrical safety standards.

What Are the Types of 225 KVA Transformers?

225 KVA transformers can be categorized into several types based on their design, purpose, and operational requirements. The primary types include:

1. Dry-Type Transformers: These transformers use air as a cooling medium and are ideal for indoor applications with limited ventilation. They are low-maintenance, environmentally safe, and offer excellent fire resistance.
2. Oil-Immersed Transformers: These transformers are cooled and insulated with oil, making them suitable for outdoor installations. Their higher efficiency and better thermal management are advantageous in demanding environments.
3. Step-Up and Step-Down Transformers: Depending on the application, 225 KVA transformers can be designed to either increase (step-up) or decrease (step-down) voltage levels for a variety of industrial and commercial uses.
4. Isolation Transformers: These transformers are designed to decouple circuits to prevent electrical noise and ensure safety in sensitive equipment.

Selecting the appropriate type depends on factors such as installation environment, load characteristics, and specific operational requirements.

Exploring Dry Type vs. Liquid-Filled Transformers

The differences between dry type and liquid filled transformers reside mainly in their method of cooling, their efficiency, their maintenance requirements, and how suitable they are for various applications.

Cooling and Efficiency: Liquid filled transformers are more efficient when working under heavier load conditions. They are often filled with mineral oil or other insulating fluids that provide some of the best thermal management. On the other hand, dry type transformers tend to be less efficient with higher workloads because they do not dissipate heat very well. However, they do use air to cool themselves so they can be operated indoors in locations that have limited ventilation and even fire risk. This dual benefit makes dry type transformers ideal for places that pose risks to safety.

Maintenance and Longevity: Generally speaking, dry type transformers tend to be low maintenance since no liquids are utilized that would need replacement or monitoring. However, dry type transformers have a potential downside of having a shorter operational lifespan, especially in high humidity and contaminant environments. This is where liquid filled transformers shine. They do require some monitoring with the insulating fluid and leaks, but they tend to last longer and can withstand harsher conditions.

Applications and Safety Considerations:

The type of vents available in the building will determine whether a dry transformer is suitable for indoor applications. Hospitals, commercial buildings, and schools are some of the areas which tend to have fire risks. Outdoor installations, for example, industrial premises, benefit from liquid-filled transformers due to their greater efficiency and cooling utilization. Modern designs of liquid transformers are available with biodegradable hydraulic fluids to reduce oil leaks, which are harmful to the environment.

The choice between the two will depend on the application’s particular requirements such as the location, load capacity, safety priorities, and the impact on the environment. These two types of technologies are as important in the electric infrastructure as they are in the other fields, as each has their own distinct operational effectiveness problems.

Differences between 480v and 208v Transformers

To understand the differences between 480v and 208v transformers, one needs to look at the primary differences in application and voltage level. Industrial and commercial areas that operate heavy machinery use a 480v transformer. This type of transformer reduces the initial supply of 480V to a functional level. A 480v transformer is used in cases when greater voltage is needed to power heavy machinery, as it single-handedly increases efficiency. One of the biggest advantages of these transformers is that they operate with a high power supply with lower current, thus reducing energy loss.

More common areas such as homes and small industries use a 208v transformer. This transformer decreases the three phase 208v voltage into lower voltages like 120v that are used day to day. 208v transformers are extremely efficient. Large commercial areas as well as homes markedly benefit from their reduced power needs.

The varying range of load capacity is the biggest factor to consider when distinguishing between the two. Based off the requirements of the system, lower and higher power demanding buildings are provided with 480v and 208v transformers respectively. In scenarios when there is vast energy consumption with smaller and mixed unit power distribution, 208v transformers are ideal. Picking the right transformer ensures efficiency, safety, and operational standard compliance.

Choosing the right type of 225 KVA transformer for your needs

The last step when choosing a transformer is understanding your energy demand, application, and compliance. The first step is to analyze the type of load and its capacity in the electrical system. For example, a company that needs to lower 480v, to 208v can use a 225 KVA transformer and still be able to minimize energy consumption without compromising on reliability.

You must also consider the location of where the transformer is to be placed, which in this case is the operating environment. For installation inside buildings, dry-type transformers are preferred for their safety features and simple maintenance. When installation is required outdoors, oil-filled transformers tend to be preferred in locations where there is harsh weather. Compliance with local codes is also important. The design of the transformer has to make sure that relevant ANSI, IEEE, or NEMA standards are met.

Finally, consider abilities like future expandability, insulation class, cooling mechanism, and so on. For example, if a transformer is installed that is slightly higher than the company’s current load, it will enable the company to perform much more smoothly during peak operating hours. Not all suppliers or manufacturers offer those incentives, so partnering with an accredited supplier can help receive certain molds that outfit your needs. A combination of energy efficiency, safety, regulation compliance guarantees an optimum choice of 225 KVA transformer.

What Factors Affect the Price of a 225 KVA Transformer?

A 225 KVA transformer’s price is affected by several reasons. Firstly, the type of its transformer, oil-filled or dry-type, impacts the base cost and maintenance expenditures. A dry-type transformer is much more expensive but is also easier to maintain and safer for indoor usage. Secondly, the material quality, especially copper versus aluminum windings, impacts both the efficiency and cost value, with copper grade having a higher cost. Third, conformity to some standards like ANSI, IEEE, or NEMA can also alter the price due to design intricacy and certification endorsement needed. Other considerations are: class of insulation, method of cooling, time of manufacture, and optional features like overloads and future expansions. Lastly, the price is also determined by the region’s market condition, such as transportation expenses and the supplier’s availability.

How Transformer Cost Is Influenced by Design and Materials

A transformer’s design and materials dictate its costs as these factors affect its performance, durability, and efficiency. Copper windings, which are more expensive than aluminum, are used in critical applications because they have superior electrical conductivity; hence they last longer. Additionally, the core materials, often silicon steel, vary in grade and quality. The higher the grade, the less energy is lost, but the more expensive it becomes. There are also costs incurred in transformers with better design features such as improved cooling systems and higher insulation classes as these features require advanced engineering and specialized materials. Added to this are compliance costs as these standards, ANSI, IEEE, or NEMA, require thorough testing and certification, which complicates production. In the end, the transformer’s pricing and its long-term operational costs rely on the balance between design efficiency and material quality.

Understanding transformer price variations in the market

Multiple factors affect the price range of transformers, the most significant of which include the material used, complexity of design, and legal obligations. Costs are higher for high-grade materials like copper and silicon steel compared to steel and aluminum because of their superior performance and durability. Other factors that help determine design prices include spring operated features, advanced cooling systems, and higher grade insulation. These systems require detailed engineering and specialized tools, which add to the overall costs.

Another critical factor is adherence to Global standards and benchmarks such as ANSI, IEEE, and NEMA which have rigorous testing provisions. Compliance with these standards ensures the transformer’s reliability and safety, but makes production more expensive. Market conditions also involve the availability of raw materials, supply chain disruption and overall global demand. Making these legal commitments deliberately adjusts the price range. Forecasting these changes is crucial to smart spending as they must balance technical needs with financial limits and long-term operational effectiveness.

How to Buy a 225 KVA Transformer?

When purchasing a 225 KVA transformer, it is critical to evaluate the following factors to ensure it meets your requirements:

1. Load Requirements – Assess your power needs, including current and future load expansions, to ensure the transformer’s capacity is sufficient.
2. Voltage Specifications – Verify primary and secondary voltage ratings to match your system’s requirements.
3. Efficiency and Losses – Consider the transformer’s efficiency ratings and load losses to optimize long-term operational costs.
4. Regulatory Compliance – Confirm the transformer adheres to ANSI, IEEE, or NEMA standards for safety and reliability.
5. Cooling System – Choose between air-cooled or oil-filled designs based on environmental conditions and maintenance preferences.
6. Material Quality – Opt for units constructed with high-grade materials like copper windings for better performance and durability.
7. Supplier Reputation – Select a reputable manufacturer or supplier with proven expertise and after-sales support.
8. Budget Considerations – Balance upfront cost with long-term operational efficiency and maintenance expenses.

Carefully analyzing these factors can help you make an informed decision while addressing both technical requirements and financial constraints.

Things to consider when purchasing a 225 KVA transformer

When buying a 225 KVA transformer, it is crucial to evaluate specific criteria to ensure compatibility, efficiency, and long-term performance. Below is a concise summary of the essential considerations:

1. Power Requirements and Load Capacity

Calculate your total load requirements, including potential future expansions, to ensure the transformer can handle the maximum demand without overloading. A 225 KVA transformer typically supports 225 kilovolt-amperes, but ensure it matches your power factor and voltage specifications.

2. Voltage Compatibility

Verify the primary and secondary voltage levels to ensure the transformer fits your power distribution needs. Common configurations include stepping down high-voltage (e.g., 13.8 kV) to lower voltages (e.g., 480 V). Proper voltage selection is critical for seamless compatibility with connected equipment.

3. Efficiency Ratings

Prioritize high-efficiency models to minimize energy losses during operation. Check for compliance with DOE efficiency standards or other regional regulations, as this can significantly impact operating costs and environmental footprint.

4. Construction Materials

High-quality materials, such as copper windings, ensure improved conductivity, lower losses, and extended lifespan compared to aluminum alternatives. The core material should also minimize hysteresis and eddy current losses.

5. Cooling and Insulation Systems

Decide between dry-type (air-cooled) and liquid-filled (oil-based) transformers, depending on environmental conditions, operational safety, and maintenance preferences. Proper insulation class selection is also critical for thermal management.

6. Safety and Regulatory Standards

Ensure compliance with industry standards such as ANSI, IEEE, NEMA, or IEC. Transformers certified for safety and reliability reduce risks and simplify integration into existing systems.

7. Supplier Reliability and After-Sales Support

Partner with trusted manufacturers or suppliers known for providing reliable products, warranties, and maintenance services. Customer reviews and service history are valuable indicators of reputation.

8. Cost Analysis

Balance initial purchase costs with operational and maintenance expenses. While higher-quality transformers may come with a greater upfront cost, their efficiency and durability often result in cost savings over their lifecycle.

Evaluate these factors comprehensively to select a transformer that aligns with your technical needs and budget, while ensuring optimal performance and reliability.

Finding the Right Transformer Manufacturer

A proper transformer manufacturer selection must follow a logical approach to analyze manufacturer skills, certifications, and reputation with their customers. Start by checking their product on offer and confirming its match to the industrial, commercial, or custom application. Also, confirm that their manufacturing processes conform to international standards like ISO 9001 for quality management and ISO 14001 for environmental management.

Look into the previous experiences of the manufacturer concerning innovation and adaptation to new market determinants like energy efficiency or grid modernization. Reviews and case studies can yield a lot of useful information about product reliability and long term performance. Also, look at effective technical support and warranty coverage, as well as service network, so that maintenance can be performed easily with minimum operation losses.

Finally, compare value for money by analyzing the lead times and prices. Remember that more developed manufacturers tend to produce better products, have lower operational costs and are more reliable in the long term.

Steps to Ensure Quality and Reliability in Your Transformer Purchase

1. Define Your Application Requirements

Start by clearly specifying the operational parameters your transformer must meet, such as voltage, power rating, frequency, and environmental conditions. Understanding the technical specifications ensures you select a transformer that aligns with your system’s needs.

2. Research Manufacturer Credentials

Evaluate manufacturers based on their industry reputation, certifications (e.g., ISO 9001), and expertise in transformer production. Look for companies that have a proven track record and adhere to international standards such as IEC or IEEE.

3. Inspect the Build Quality

Assess the materials and construction methods used in the transformer, including core and winding materials, insulation quality, and any protective features. High-quality components contribute to long service life and reliable performance under load.

4. Check for Compliance with Standards

Confirm that the transformer complies with the relevant safety and efficiency standards. Standards such as Energy Star ratings, NEMA, or CE markings indicate adherence to certified testing processes and expected performance benchmarks.

5. Request Testing and Documentation

Verify quality by reviewing the manufacturer-supplied test results, such as factory acceptance tests (FAT) and type test reports. These documents provide assurances of the unit’s performance and reliability in real-world conditions.

6. Evaluate Warranty and Support Services

Consider the length and scope of the warranty provided, as well as the availability of customer support, maintenance services, and repair offerings. Reliable after-sales service is essential for minimizing downtime in case of failure.

Conducting thorough due diligence at every step ensures that your transformer meets both technical and operational requirements while providing long-term reliability.

References

Transformer

Energy

Electricity

Frequently Asked Questions (FAQ)

Q: What is a 225 KVA transformer?

A: A 225 KVA transformer is an electrical device used to transfer electrical energy between two or more circuits through electromagnetic induction. It is commonly used in commercial and industrial applications to step down high primary voltage to a lower secondary voltage.

Q: What are the typical dimensions of a 225 KVA transformer?

A: The dimensions of a 225 KVA transformer can vary depending on the manufacturer and the type of transformer, such as dry type or oil-filled. However, they are typically designed to be compact to fit within standard installation spaces.

Q: How much does a 225 KVA transformer weigh?

A: The weight of a 225 KVA transformer can vary depending on its construction and the materials used. A dry type transformer may weigh less compared to an oil-filled transformer, but specific weights should be obtained from the manufacturer.

Q: What is the typical cost of a 225 KVA transformer?

A: The cost of a 225 KVA transformer will depend on various factors, including the transformer type, brand, and additional features. Prices can range significantly, so it is recommended to contact us or a supplier for a quote specific to your requirements.

Q: What are the primary and secondary voltages of a 225 KVA transformer?

A: A 225 KVA transformer typically has a primary voltage of 480v and a secondary voltage of 208v or 240v, depending on the application. It is important to select a transformer that matches your specific voltage requirements.

Q: What are the different types of 225 KVA transformers available?

A: There are several transformer types available for a 225 KVA rating, including dry type transformers, oil-filled transformers, and pad-mounted transformers. Each type has its advantages and is suited for different applications.

Q: Can a 225 KVA transformer be used for low voltage applications?

A: Yes, a 225 KVA transformer is designed to handle low voltage applications by stepping down the primary voltage to a lower secondary voltage, such as 208v or 240v, suitable for low voltage systems.

Q: How does a 225 KVA 3-phase transformer work?

A: A 225 KVA 3-phase transformer works by transferring electrical energy between three circuits through electromagnetic induction, efficiently handling higher power capacity compared to single-phase transformers.

Q: Where can I purchase a 225 KVA transformer?

A: You can purchase a 225 KVA transformer from electrical equipment suppliers, manufacturers like Daelim Transformer, or distributors that specialize in power transformers. It is advisable to compare different options to find the best fit for your needs.
