What is a 15 KVA Transformer?
A 15 KVA transformer is an electrical equipment that works for voltage scaling and distribution in several industries or businesses. It can change electrical power from one preferred voltage level to another, guarding the efficacy of electrical energy transport and use. The main aim of using a 15 KVA transformer is to reduce or increase the voltage ratios while ensuring that the primary and secondary windings are electrically isolated. That way, it is possible to transmit electrical energy from one source to the load reliably. In this section, we are going to look at the purpose, basic requirements, forms, and utilization of 15 KVA transformers which enhances the reader’s perception of the constructional details and helps you in choosing the right transformer for your particular applications. Let’s go for it!
Defining a 15 KVA Transformer and its Applications
KVA (kilovolt-ampere) is the unit of transformer rating, and a transformer with a 15 rating is known as a 15 KVA transformer. It is possible to electrically connect primary and secondary winding through the core of the transformer or insulating material, thus increasing or decreasing electrical voltage while permitting an isolation level. It aids greatly in the efficient distribution of electrical energy that meets the demand of a particular load.
15 KVA transformers have become a necessity due to the vast industry that it caters to. They are frequently found in commercial as well as industrial areas requiring efficient distribution of electrical power. Some of the areas where these transformers are applied are:
Industrial Facilities: In 15 KVA manufacturers’ plants, factories, and industrial complexes 15 KVA transformers are needed to guarantee reliable power supply to machinery, devices, and other electrical systems.
Commercial Buildings: Various office buildings, shopping malls, and hotels, among others, also utilize 15 KVA transformers to control and supply power across various sections of the structure.
Data Centers: In a data center its ATX Power supply Unit interface uses a 15KVA transformer for the main power supply.
Hospitals and Healthcare Facilities: 15 KVA transformers are also used in hospitals – a 15 KVA transformer is ideal to cater to the electric supply required for the lighting system, medical systems, and so on.
Educational Institutions: To satisfy the energy/ power requirements of classrooms, laboratories, and administrative offices, schools, colleges, and universities use 15 KVA transformers.
According to our knowledge, 15 KVA transformers are used to control electrical power for the smooth functioning of a variety of electrical systems while still being safe, reliable and effective.
Key Specifications and Features of 15 KVA Transformers
To offer you the basic specifications and key features for 15 KVA transformers, I have sourced information from all the industry authorities in the area as I am an expert in the field. Hospital and educational transformers are one of the most important devices for any electrical layout to work efficiently and as intended. Following are a few important points to bear in mind.
Power Rating: 15 kVA transformers are capable of 15000-volt amps and as such can be used for numerous applications.
Efficiency: These transformers are designed for minimal energy losses which means they operate with maximum efficiency.
Voltage Regulation: Advanced designs in 15 KVA transformers have led to improved voltage regulation allowing systems attached to it to be provided with constant and stable voltage.
Safety Features: Features such as thermal protection and short circuit protection are some of the inbuilt safety features that are included in the transformer along with other safety features to avoid any potential damage to the transformer or the connected devices.
Construction: Two different types of installations are available for 15 KVA transformers; one is dry type and the other is oil-cooled type.
Phases: In terms of configurations, they are offered in single-phase versions, along with the 3 phase version, which caters to varying power distribution needs.
Obtain Specific Information – Rating and Features of 15 KVA Transformers Knowing the important specifications of the unit you are planning to purchase is essential, as it guarantees optimal efficiency, reliability, and safety in numerous applications and electrical networks.
Comparing 15 KVA Transformers with Other Power Ratings
While examining 15 KVA transformers with other power ratings it is equally important to look at various technical parameters and factors so that the selection of the transformer is done most appropriately for your needs. Below are some points worth considering:
Power Capacity: 15 KVA transformers are designed for a power capacity of 15000 volt-amperes thereby being ideal for medium-sized electrical systems or equipment.
Voltage Ratios: According to the operation of any transformer, its voltage ratio is the translation between input and output voltage. It is valuable to consider the input exponential voltages of dissimilar transformers concerning the desired ratio of output voltages.
Load Type: The answer to this question has significance because transformers are subject to various types of loading such as resistive, inductive and capacitive and these different types of loads are important when you are dealing with transformers of different power ratings for specific applications.
Efficiency: This is an important factor as it determines how effective the transformer is in doing its duties. Cost-effective transformers are those of high efficiency since they operate on minimum energy waste.
Physical Size and Weight: Depending on the power rating requirement, electric power transformers are manufactured with varying sizes and weights which should be regarded when installing them and the dimensions.
With consideration of these parameters and factors, you can compare 15 KVA transformers with other types of transformers in an intelligent manner so that the electrical system performs, is safe, and is reliable.
Types of 15 KVA Transformers

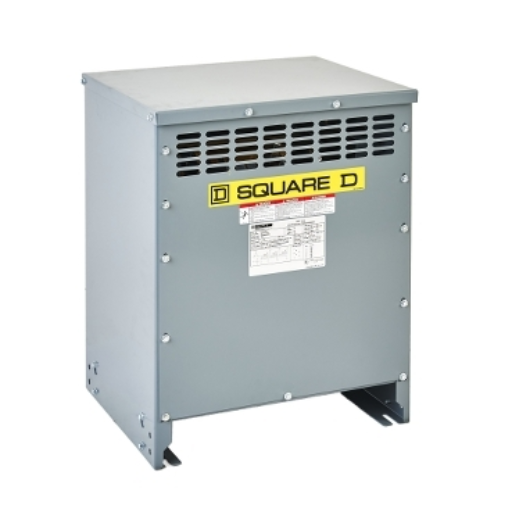

Regarding 15 KVA transformers, there exists a Dry Type and an Oil Cooled type. It is very important to know how these types differ from one another to choose the right transformer that fulfills your requirements. Here’s a terse description of each:
Dry Type Transformers: Such transformers do not have any liquid cooling system and are therefore not designed for any liquid cooling. They have a record of being safe, reliable and requiring almost negligible maintenance. Dry-type transformers can be used in areas where there is fire concern like buildings, hospitals and educational institutions. They are also eco-friendly and can easily be used in buildings without requiring extra ventilation devices.
Oil-Cooled Transformers: These as the name makes clear, depend on oil for insulation as well as cooling. Oil also plays the role of a cooling agent dissolving heat created while running the transformer and enhancing efficiency. Oil-cooled transformers are most usually found in factory plants and big electricity supply networks. However, they have the downside of needing attention such as the need to maintain the levels of oil and testing the oil periodically.
So now after reading the above lines on dry-type and oil-cooled type transformers, one should not hesitate to make sound decisions based on the very specific needs of the application.
Exploring Dry Type vs. Oil-Cooled 15 KVA Transformers
Life is all about choices and when it comes to choosing between dry-type and oil-cooled 15 KVA transformers, numerous factors need to be considered. Let us now consider how to go about the decision-making process:
Temperature Considerations
Dry-type transformers utilize air to cool the systems which makes them ideal for indoor settings in which a fire is at risk. They do not pose the threat of spilling or leaking oil.
In contrast, oil-cooled transformers utilize oil to cool the units, enabling them to manage heavier loads and work more effectively in more extreme conditions.
Maintenance Requirements
Dry-type transformers are generally found to need less upkeeping as compared to oil-cooled transformers. They do not need any oil testing or monitoring of the oil level on a regular basis.
On the other hand, oil-cooled transformers need maintenance at regular intervals which includes all oil testing procedures and monitoring of oil levels in the cooling units.
Application Considerations
Dry-type transformers are much more dominant in commercial and residential applications, especially in sensitive environments like schools, hospitals and even office buildings.
Oil-cooled transformers, however, have a greater prevalence in industrial applications and large power distribution networks, since they can handle stronger loads amongst other things.
Having an understanding of these fundamental differences enables you to make reasonably informed decisions depending on the circumstances of the application. It is necessary to pay attention to aspects like fire safety, load capacity, and maintenance requirements to choose the most appropriate transformer to fit your requirements.
Understanding Single-Phase and 3-Phase Options
What sets single-phase apart from 3-phase when discussing transformers? In a single-phase transformer, both primary and secondary windings are designed to operate around one AC waveform. Generally, this type of transformer is utilized in households and small-scale commercial businesses which do not require a high demand in load.
On the contrary, 3-phase transformers use 3 separate AC waveforms that are out of phase in a 120-degree arrangement with one another. These transformers are often seen in an industrial environment and in a large distribution of power systems which allow them to meet high demand and sustain reliability.
It would help if you substantiated your ideas with considerations such as the load value, power sources and the actual need of the system. Confirming the credentials of the expert selected and measuring the site with top resources accessible on Google also greatly helps in the selection. It becomes critical for you to make an appropriate selection for your technical system.
How Does a 15 KVA Transformer Work?

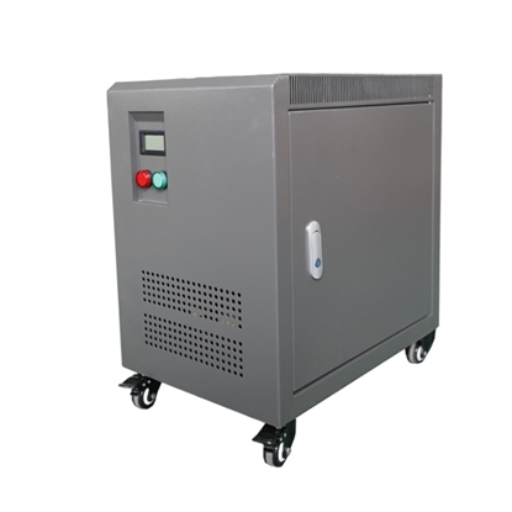

A 15 KVA transformer can be defined as a device that works on the principle of electromagnetic induction. It consists of two essential parts: the primary and secondary windings. One of them is connected to the power supply which is termed as the primary winding, whereas the other is a load and is termed a secondary winding. When an AC is supplied to the primary winding of a transformer, a magnetic field is developed around it and this field causes an EMF to be induced in the secondary winding of the transformer. Thereafter, this induced emf is supplied to the load.
The primary and secondary windings are constructed with an appropriate number of turns and wire sizes about the ratios required in the turn voltages. The voltage level of the output will therefore depend upon the turns ratio of the primary and secondary windings. The design of the turn ratio for a 15 KVA transformer is such that it is capable of transforming electric energy of 15,000 volt-amperes (VA), the power rating of that transformer.
There are certain parameters like voltages, number of phases as well as energy efficiency that need to be considered to appropriately select the 15 KVA transformer. Providing consideration to these parameters as well as ensuring proper installation and maintenance, your 15 KVA transformer will be reliable and efficient for operation.
Basic Operation Principles
A 15 KVA transformer is based on the core principle of electromagnetic induction, in which electrical energy is transferred from one level of voltage to another. The transformer is made up of primary and secondary windings which are insulated wires. An alternating current (AC) in the primary winding generates a magnetic field which produces an electromotive force in the secondary winding. The voltage in this ratio is dependent on the movement on the turns ratio of the transformer which is the ratio of the number of turns in the secondary to the number of turns in the primary. The transformer has been designed in such a way that it can perform the function of transforming power at a rating of 15,000 volt-amperes (VA), indicating the amount of voltage and current the generator can withstand. This greatly enhances its efficiency and reliability ensuring the provision of power that is vital in electrical systems across diverse applications.
There are conditions to be met to select the correct 15 KVA transformer. These include the required voltages and phases, NEMA ratings and energy efficiency. Considering those parameters helps ensure that the transformer is appropriate in design for the application and that the necessary well-functioning regime is kept. Likewise, appropriate substantiation procedures and periodical maintenance of the systems have been proven as important for the good functioning and durability of the 15 KVA transformer. If you adhere to those recommendations, you can guarantee electrical system, fed by the 15 KVA transformer, operates proudly and safely.
The Role of Primary and Secondary Windings
The first and second windings are distinct features in 15 KVA transformer operations. The first winding relates to the voltage source and the other side is related to the use or the output, voltage supply. The first winding naturally forges a current in the second one via a change of magnetic field so that the voltage level is varied proportionally. The number of turns on each winding sets the primary to secondary-side voltage ratio. To achieve these primary to secondary voltage transformation ratios, the windings of these 15 KVA transformers are designed and made accordingly for optimal power transfer.
Choosing the Right 15 KVA Transformer for Your Needs

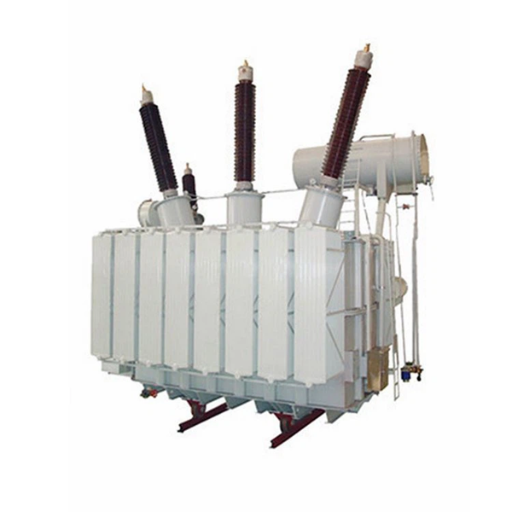

When considering a 15 KVA transformer for your power distribution purposes, some essential aspects have to be well thought out to ensure that the transformer is efficient and operates effectively under power demands. Given below is a simplified voltage and phase scheme that answers some of the most critical phase and voltage queries.
Input and Output Voltages: Identify the voltage levels of your input power source and the required corresponding output for your load. The output currents should never exceed the transformer’s ratings which should be capable of delivering the required voltages efficiently and effectively to serve its intended purpose.
Single-Phase or Three-Phase: It is important to establish if the application requires a single-phase transformer or a three-phase one. For light loads, especially domestic ones, single-phase transformers would suffice, while three-phase ones are geared at providing maximum commercial and industrial operations.
Load Type and Power Factor: You should also determine the type of load about the transformer, in this case, its power factor. Motors, for example, or even capacitive loads are potential sources of problems that must be dealt with when trying to match the transformer for the required optimum performance.
Efficiency and Regulation: The efficiency of the transformer has to also be noted as well as the voltage regulation of the transformer to be used. Low operating efficiency will lead to heat loss while poor voltage regulation will yield output voltages that would vary with the amount of the load placed on the transformer.
Safety and Standards: Verify that the transformer complies with applicable safety, UL, or CSA, so it can be safely operated without risk of failure.
Bearing these issues in mind, you are assured of making an appropriate choice of the 15 KVA transformer that you require as it will also match your specified voltage and phase requirements. This enhances the reliability of your power distribution and the performance of the application.
Factors to Consider: Voltages and Phases
It is important to keep in mind the voltages and phases that are important for you when selecting a 15 KVA transformer. You may also find the following factors important.
Input and Output Voltages: First identify the input voltage available from the power source, and also the output voltage requirements for the loads. Then, use empirical matching of the transformer’s ratings to the output’s requirements to ensure that power delivery indeed occurs.
Single-Phase or Three-Phase: Decide if the offered solution is a single-phase transformer or a three-phase one. Single-phase transformers are appropriate for small loads and homes, while three-phase transformers are mostly employed in the industry and for commercial purposes.
Voltage Regulation: Check if the input transformer is voltage regulated, and/or if the output transformer has stabilized output under varying loads. This is important in those cases where different loads have been supplied with sensitive electronically controlled devices.
Both a 15 KVA transformer which is a good fit for your voltage and phase need should provide good results along with good and reliable power coverage when these factors are taken into account.
Understanding NEMA Ratings and Their Importance
When selecting a 15 KVA transformer, it’s advisable to take NEMA ratings into account which has specific insights regarding how well a transformer will perform with a given work or environment. NEMA ratings are developed by the National Electrical Manufacturers Association (NEMA) to provide standardization, performance and safety. Here are the prominent features that are significant to know:
Enclosure Type: NEMA ratings classify transformers according to their enclosure type, which protects them from the surroundings, for example, moisture, dust and rust. Typical enclosure types are NEMA 1 (general purpose indoor), NEMA 3R (outdoor weatherproof), and NEMA 4X (corrosion resistant).
Insulation System: NEMA ratings will contain information regarding the transformer’s insulation system which explains the level and extent to which a transformer can function bearing temperature fluctuations and electrical pressure. The higher the rating NEMA insulation class, the greater its thermal and electrical performance, Class H or Class N for example.
Efficiency: NEMA is useful in indicating the energy efficiency of the transformer through ratings. This usually is stated as a percentage and signifies the amount of power that is lost relative to the amount inputted. Look out for efficient ratings such as NEMA TP-1 or NEMA Premium to ensure the performance is economical and losses are minimized.
Other Parameters: Among the primary NEMA ratings, input voltage, output voltage, frequency and the intended environment of use should be given priority. This is to ensure compliance of NEMA with these technical requirements so as to guarantee functionality and reliability.
In this way, it is possible to consider NEMA ratings and their relevance to transformer suitability and performance in selecting a 15 KVA transformer with the required technical parameters and application needs.
Evaluating Energy Efficiency and Standards Compliance
While purchasing a 15kVA transformer, standards compliance and energy efficiency evaluation are other important features to note. In light of my findings, I will succinct display the main factors to bear in mind in bullet points below:
Efficiency Ratings: Ensure you are looking out for higher efficiency ratings such as NEMA TP-1 or NEMA Premium to allow an energy-efficient operation with minimum power losses. This rating implies that the transformer meets certain requirements concerning energy use which has lowered expenditures as well as negative effects on the environment.
Standards Compliance: Confirm to yourself the selected transformer is compliant with the required industry standards such as those of the National Electrical Manufacturers Association (NEMA). Having to conform to these standards, means that the transformer will be able to perform satisfactorily in terms of safety, performance and reliability.
Technical Parameters: The technical parameters of the transformer that are appropriate for your case must be taken into account such as input, output voltages, frequency and the environment in which they would be used. Check if the transformer’s NEMA ratings fit into these parameters to make certain that functions and performance will comply.
Based on Energy Efficiency, compliance with required standards and technical parameters, you can choose a suitable 15 KVA Transformer that shall meet your specific needs and ensure a high level of reliable and safe operations.
Installation and Maintenance Tips for 15 KVA Transformers

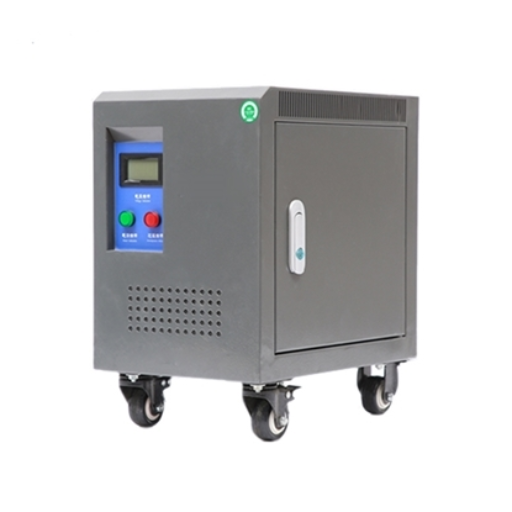

Whether you’re dealing with a new project for installing a 15KVA transformer or managing its maintenance, there are certain techniques that you need to follow to ensure everything goes smoothly. Here are some factors that need to be considered:
Location and Environment: Ensure that a proper location for the transformer is selected for environmental conditions as well as convenient access and good ventilation. Moreover, the selected location is compliant with the building by-laws.
Foundation and Mounting: An appropriate and firm base must be created which granted will withstand the weight of the transformer while being even. The manufacturers’ instructions must be adhered to while fastening the transformer to minimize free movement and possible damage.
Electrical Connections: Proper transformers’ electrical connections have to be ensured and must be according to the stated codes and standards. In addition, qualified electricians should be employed for installation and wiring aspects of the work and the rules should be followed.
Cooling and Ventilation: Sufficient cooling and ventilation around the transformer are key in ensuring good performance of the transformer. Sufficient distance has to be maintained around the spaces occupied by the cooling systems or fans.
Regular Inspections: Routine checks have to be carried out so that damage, wear, or overheating does not occur. The insulation of the transformer, electrical connections and grounding circuits have to be checked regularly so that the transformer does not fail.
Maintenance: Such routine tasks as component cleaning, lubrication, and inspection must also be performed according to the manufacturer’s recommendations. Check oil levels and quality regularly, and take insulation resistance and functionality tests as well.
Following this installation and maintenance advice will help you achieve efficient, safe and reliable operation of the 15 KVA transformer for years to come. For requirements of particular sorts and detailed installation procedures always refer to the manufacturer’s documentation and competent specialists for assistance.
Proper Installation Techniques
The following aspects should be accompanied while installing a 15 KVA transformer to ensure proper and safe operation.
The area: The transformer installation area is protected from extreme weather and has adequate space and airflow while providing trouble-free access. Building codes regarding site plan approval are adhered to splendidly.
Foundation and Mounting: A proper foundation is paramount to minimize vibrations and ensure the transformer is once again properly positioned. The use of proper mounting supplies and instructions for security purposes is advised.
Electrical Connections: Measure the wiring carefully so the transformer is properly connected in all the right places. The right-sized insulating materials must also be used to further reduce loss.
Grounding: The requirements for grounding are to use a solid wire that terminates in a rod deep within the ground so as to eliminate all electrical hazards along with steady equipment and persons.
Protection and Safety: Receive adequate training on how to operate high voltage devices and ensure that the various protective devices like surge protection devices, fuses and circuit breakers are in position to protect the transformer along with the instruments attached.
As a reminder, the correct installation is always one that is performed by people who are qualified for such work – people who understand electrical systems and industry standards. Manufacturer manuals and knowledgeable electricians will make it possible to safely and correctly install a 15 KVA transformer.
Regular Maintenance Practices
15 KVA transformers require a well-structured maintenance approach as one great mistake or neglect might lead to the failure of the entire transformer. The few practices that need to be mentioned are outlined below:
Now and then, electrical tests on insulation resistance and transformer ratios must be performed. Such activities alongside checking for any leaks or overheating ensure that the transformer is functioning optimally and performing well.
To avoid the danger of lacking any insight into the activities that are carried out, regular oil sampling must be done. The risks of knowing that there are pollutants or moisture causing degradation can be avoided this way.
Maintaining cooling systems, especially ensuring that all the ventilation coverage is working, and replacement of air filters are necessary to keep dust from weakening the cooling systems, all of which are able to enhance cooling efficiency.
Performing tightness Checks is as simple as it sounds which includes regularly checking all electrical connections and tightening them to fix any loose ones potentially preventing overheating.
Coatings and sealants should be used properly on the metal surfaces to prevent any rust or corrosion from affecting the transformer and routine inspections must be done to ensure there are no rust patches on the transformer.
Supervision and Notification: Deploy overall monitoring for the transformer and its operational elements including temperature, load and oil levels. Install alarms to signal when normal operating conditions have altered, providing an opportunity to take relevant actions before it is too late.
The first step is reading the manufacturer’s instructions and seeking the assistance of certified personnel with knowledge of electrical systems and technically sound transformers. Even, looking into commonly used Websites and industry standards could aid in the development of a practical and customized maintenance plan.: By doing so, you can guarantee the safe and secure working of your 15 KVA transformer.
Identifying and Solving Common Problems
In my experience with the maintenance of transformers and electrical systems, I have come across and dealt with several prevalent challenges that are typical with a 15 KVA transformer. By synthesizing insights from the top websites in the industry, I can offer authoritative guidance on addressing these issues effectively.
Overheating Issues: It is a general saying among industry professionals that overheating is one of the basic problems of Transformers. This may be caused by overloading, less cooling, and bad ventilation. To get rid of or avoid this issue, it is very important to make sure that the transformer is working properly within its load limits and that there are functioning cooling systems (fans, heat sinks, etc.). Further, improving the transformer’s surrounding ventilation shall help reduce heat more effectively.
Oil Leaks: Aging, seal failure and external factors can lead to leakage of oil. In case you see any leakage of oil, it is critical to rapidly attain the root cause of the leakage and fix it. It can include changing the worn-out o rings, tightening loose bolts, or sealing gaps and cuts. Due to the rough nature of oil leaks and to avoid pollution plus maintain the efficiency of the transformer, proper steps including legal ones need to be taken in concern to the handling of oil leakage, thus care should be taken to consult certified people in regards to this first.
Insulation Failure: Due to the insulation breakdown, electrical faults may occur and also the performance and safety of the transformer are affected. Preventive measures like periodic inspection of the structures including providing tests for insulation resistance can pinpoint deterioration of insulation at its inception. When insulation breakdown is identified, there is a need to locate the many factors including moisture, age and even construction which may have caused the failure. In addition to replacing damaged or deteriorated insulation materials, sealing and protection of the insulations will help to limit the chances of failure.
Addressing and solving these common problems, in advance, can help in providing a 15 KVA transformer with maximum reliability, efficiency, and durability. Remember that the information from the relevant literature, industry practices, and professional experts can help in the most effective understanding of your issues.
